Cornwell Tools CAT4152 Operating Instructions

Operating Instructions • Warning Information • Parts Breakdown
Breakaway Torque: .............................. 1,100 Ft./Lbs.
Maximum Applied Torque: ..................... 800 Ft./Lbs.
Working Torque Range: ................... 50 - 550 Ft./Lbs.
Free Speed: ............................................... 7,500 RPM
Avg. Air Consumption: .................................. 4.9 cfm
Overall Length: ................................................ 8-7/8"
Weight: ........................................................... 4.3 lbs.
Sound Level: ................................................ 97.3 dBA
Air Inlet (NPT): ..................................................... 1/4"
Recommended Hose Size: ................................... 3/8"

WARNING

RATED RPM OF THE ACCESSORY
USED MUST EXCEED THE MAXIMUM
TOOL RPM SHOWN
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
CAT4152

SPECIFICATIONS

WARNING
CAT4152

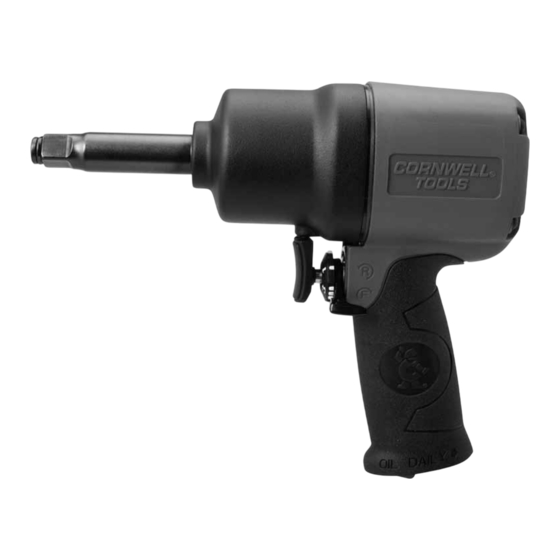

Blue Power 1/2" Dr.
Impact Wrench
w/ 2" Anvil
Copyright © Professional Tool Products, 2011
All rights reserved
Rev. 06/22/11
