Operating Instructions • Warning Information • Parts Breakdown
Breakaway Torque: .......................... 1,100 Ft./Lbs.
Maximum Torque: ............................... 800 Ft./Lbs.
Working Torque Range: ............... 50 - 550 Ft./Lbs.
Free Speed: ........................................... 7,500 RPM
Avg. Air Consumption: .............................. 4.9 cfm
Overall Length: ............................................ 6-7/8"
Weight: .......................................................... 4 lbs.
Sound Level: ............................................ 97.3 dBA
Air Inlet (NPT): ................................................. 1/4"
Recommended Hose Size: ............................... 3/8"
RATED RPM OF THE ACCESSORY
USED MUST EXCEED THE MAXIMUM
TOOL RPM SHOWN
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
CAT4135
SPECIFICATIONS

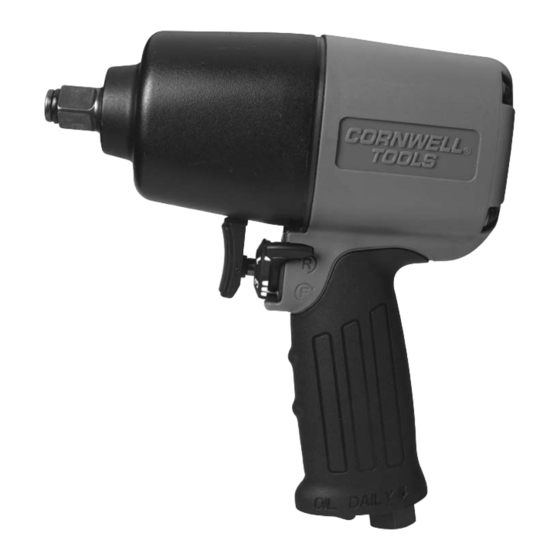

Super Duty 1/2" Dr.
Composite Impact
Copyright © Professional Tool Products, 2009
1
CAT4135
Wrench
All rights reserved
Rev. 06/26/09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CAT4135
Summary of Contents for Cornwell Tools CAT4135
- Page 1 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: CAT4135 • lead from lead-based paints, Super Duty 1/2" Dr. • crystalline silica from bricks and cement...
- Page 2 Vibration, repetitive motions or uncomfortable positions over extended periods of time may be harmful to your hands and arms. Discontinue use of tool if discomfort, tingling feeling or pain occurs. Seek medical advice before resuming use. CAT4135 Rev. 06/26/09...
- Page 3 WARRANTY Cornwell warrants its air tools for a period of 1 year to the consumer. We will repair any CAT4135 covered under this warranty which proves to be defective in material or workmanship during the warranty period. In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid.
- Page 4 BOLT ASSY RS2125416 TRIGGER TIP RS4135304 BLADE RS1735410 O - RING RS4135305 ROTOR RS2125418 AIR INLET RS4135306 CYLINDER UNIT RS1735412 SPRING PIN RS227B25 BEARING RS1735408 EXHAUST DEFLECTOR RS4135308 O - RING RS1735411 TAP BOLT 309 RS4135309 GASKET-CYLINDER CAT4135 Rev. 06/26/09...
