Operating Instructions • Warning Information
WARNING
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains chemicals known to
cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
SPECIFICATIONS
Free Speed ............................................................. 9,000 RPM
Breakaway Torque .................................................600 ft.-lbs.
Working Torque Range .................................... 25-375 ft.-lbs.
Overall Length ................................................................. 4.4"
Weight ........................................................................... 3 lbs.
Average Air Consumption ............................................. 3 cfm
Air Inlet......................................................................1/4" NPT
Recommended Hose Size .......................................... 3/8" I.D.
Sound Level ................................................................ 95 dBA
Vibration Level ................................................... 10.02 m/sec²
CAT4112 / CAT4112G
• Parts Breakdown
WARNING
CAT4112
CAT4112G

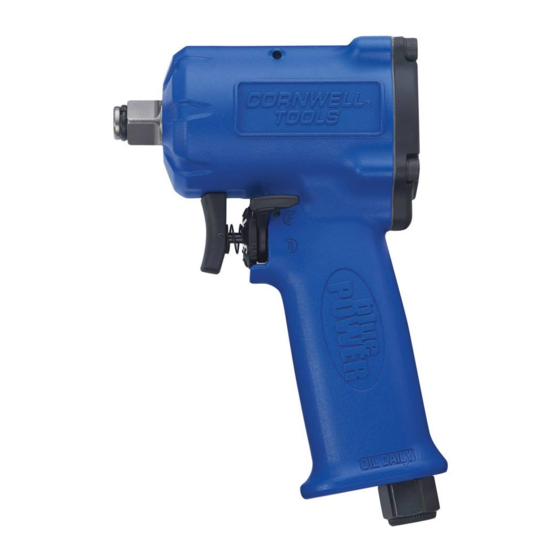

1/2" Dr. Mini
Impact Wrench
Copyright © Professional Tool Products, 2018
All rights reserved
06/12/18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CAT4112
Summary of Contents for Cornwell Tools CAT4112
- Page 1 Average Air Consumption ..........3 cfm Air Inlet..............1/4" NPT Impact Wrench Recommended Hose Size .......... 3/8" I.D. Sound Level ..............95 dBA Vibration Level ........... 10.02 m/sec² Copyright © Professional Tool Products, 2018 All rights reserved CAT4112 / CAT4112G 06/12/18...
- Page 2 • Keep tool out of reach of children. • Use accessories recommended by Cornwell Tools. • Air un der pres sure can cause se vere in ju ry. Nev er • Do not use (or modify) the tool for any other di rect air at your self or oth ers.
- Page 3 PARTS BREAKDOWN - CAT4112 / CAT4112G 101A Ref. # Item # DESCRIPTION Ref. # Item # DESCRIPTION RS4112101 Anvil RS4112401 Trigger 101A RS4112101A Anvil Assembly (Incl. # 101, 102 & 103) 1 RS2138404 Spring RS4135104 O-Ring RS2138405 Regulator A RS1761104...
- Page 4 Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. Cornwell Quality Tools Company 667 Seville Road • Wadsworth, OH 44281-1094 CAT4112 / CAT4112G 06/12/18...
