OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Tool Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.75"
Tool Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9.06"
Tool Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.19"
Tool Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.76 lb
Maximum Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . 8,300 RPM
Maximum Reverse Torque. . . . . . . . . . . . . . . . . . . . . . . 825 ft-lbs
Breakaway Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . 1,350 ft-lbs
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . . 96.8 dBA
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.84 m/s²
Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.8 cfm
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" NPT
CAT4282
WARNING INFORMATION
•
WARNING
SPECIFICATIONS
-Save these instructions-

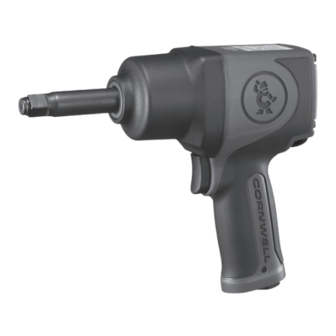

1/2" bluePOWER ® IMPACT WRENCH W/2" EXT. ANVIL
•
1
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Copyright © Professional Tool Products, 2019
CAT4282
All rights reserved
REV: 11/21/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools bluePOWER CAT4282
Summary of Contents for Cornwell Tools bluePOWER CAT4282
- Page 1 CAT4282 1/2" bluePOWER ® IMPACT WRENCH W/2" EXT. ANVIL OPERATING MANUAL WARNING INFORMATION PARTS LIST • • WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
- Page 2 Do not use hand sockets or accessories. • Keep the tool in ef fi cient op er at ing con di tion. • Use accessories recommended by Cornwell Tools. • Operators and main te nance per son nel must be •...
- Page 3 CAT4282 1/2" bluePOWER ® IMPACT WRENCH W/2" EXT. ANVIL OPERATION Air Supply Whip Hose Do Not Install Filter Quick Coupling Nipple Nipple Here This tool is an impacting tool and not a torque meter. When specific torque is required, it must be checked with a torque meter after fitting the fastener with the impact.
- Page 4 CAT4282 1/2" bluePOWER ® IMPACT WRENCH W/2" EXT. ANVIL WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of TWO (2) YEARS from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials.
- Page 5 CAT4282 1/2" bluePOWER ® IMPACT WRENCH W/2" EXT. ANVIL PARTS LIST Item Part No Parts Description Item Part No Parts Description RS428201 HAMMER CASE ASS'Y. (incl. 102 & 109) 1 * RS223826 C-RING (RTW#16) RS428202 ANVIL BUSHING (incl. with 101) STEM SEAL RS428203 SOCKET RETAINER (incl.
