CAT350_OpMan_012204
1/22/04
Operating Instructions • Warning Information • Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
Working Torque: . . . . . . . . . . . . .25-300 ft.lbs.
Maximum Torque: . . . . . . . . . . . . . .450 ft.lbs.
Free Speed: . . . . . . . . . . . . . . . . . . . .7000 rpm
Rec. Air Pressure: . . . . . . . . . . . . . . . . . .90 psi
Air Inlet: . . . . . . . . . . . . . . . . . . . . . . .1/4" npt
Rec Hose Size: . . . . . . . . . . . . . . . . . . . . . .3/8"
Overall Length . . . . . . . . . . . . . . . . . . . .6 3/4"
Weight . . . . . . . . . . . . . . . . . . . . . . . . .5.6 lbs.
Sound Level . . . . . . . . . . . . . . . . . . . . .102dBA
CAT350
10:59 AM
Page 1
SPECIFICATIONS

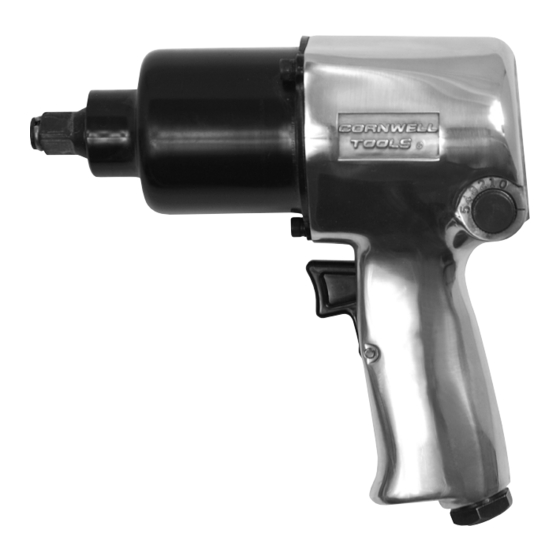

Twin Hammer
Impact Wrench
1
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
CAT350
1/2" Dr.
Rev. 01/20/04
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CAT350
Summary of Contents for Cornwell Tools CAT350
- Page 1 SPECIFICATIONS Working Torque: ... . .25-300 ft.lbs. CAT350 Maximum Torque: ....450 ft.lbs. Free Speed: ....7000 rpm Rec.
- Page 2 Vibration, repetitive motions or uncomfortable positions over extended periods of time may be harmful to your hands and arms. Discontinue use of tool if discomfort, tingling feeling or pain occurs. Seek medical advice before resuming use. CAT350 Rev. 01/20/04...
- Page 3 Reverse Valve RS350TH32 Socket Retainer RS350TH15 Detent Spring RS350TH33 Anvil Bushing RS350TH16 Detent Ball RS350TH34 Hammer Housing Pilot Ring RS350TH17 Gasket RS350TH35 Gasket RS350TH18 Retaining Ring RS350TH36 Hammer Housing RS227B25 Ball Bearing RS350TH38 Screw / Spring Washer CAT350 Rev. 01/20/04...
- Page 4 The foregoing obligation is Cornwell’s sole liability under this or any implied warranty and under no circumstances shall Cornwell be liable for any incidental or consequential damages. Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you CAT350 Rev. 01/20/04...
