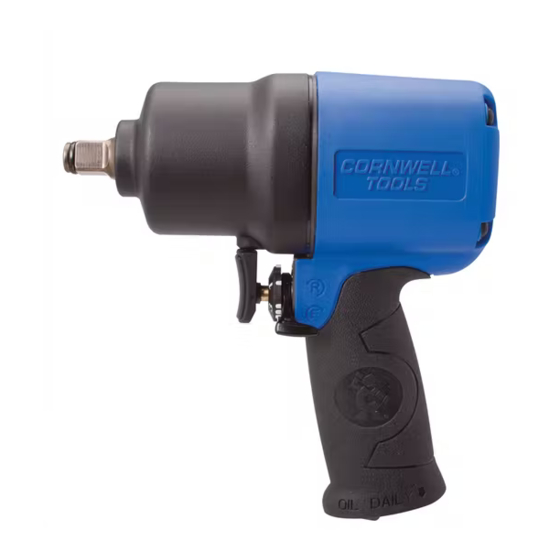

Super duty 1/2" dr. composite impact wrench

Advertisement

Operating Instructions • Warning Information • Parts Breakdown
Breakaway Torque: .......................... 1,200 Ft./Lbs.
Maximum Applied Torque: ................. 800 Ft./Lbs.
Working Torque Range: ............... 50 - 550 Ft./Lbs.
Free Speed: ........................................... 7,500 RPM
Avg. Air Consumption: .............................. 4.9 cfm
Overall Length: ............................................ 6-7/8"
Weight: .......................................................... 4 lbs.
Sound Level: ............................................ 97.3 dBA
Air Inlet (NPT): ................................................. 1/4"
Recommended Hose Size: ............................... 3/8"
RATED RPM OF THE ACCESSORY
USED MUST EXCEED THE MAXIMUM
TOOL RPM SHOWN
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
CAT4150

SPECIFICATIONS

Super Duty 1/2" Dr.
Composite Impact
Copyright © Professional Tool Products, 2010
1
CAT4150
Wrench
All rights reserved
Rev. 06/04/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAT4150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cornwell Tools CAT4150

  • Page 1 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: CAT4150 • lead from lead-based paints, Super Duty 1/2" Dr. • crystalline silica from bricks and cement...
  • Page 2 Vibration, repetitive motions or uncomfortable positions over extended periods of time may be harmful to your hands and arms. Discontinue use of tool if discomfort, tingling feeling or pain occurs. Seek medical advice before resuming use. CAT4150 Rev. 06/04/10...
  • Page 3: Air Supply

    WARRANTY Cornwell warrants its air tools for a period of 1 year to the consumer. We will repair any CAT4150 covered under this warranty which proves to be defective in material or workmanship during the warranty period. In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid.
  • Page 4: Parts Breakdown

    RS4150420 LATCH PIN RS4135305 ROTOR RS1735408 EXHAUST DEFLECTOR RS4135306 CYLINDER UNIT RS1735411 TAP BOLT RS227B25 BEARING RS4150424 E-RING RS4135308 O-RING RS1735403 SEAL 309 RS4135309 GASKET-CYLINDER 426 RS1735404 BUSHING 310 RS2125310 PACKING-CYLINDER 427 RS1735405 TIP VALVE RS4150428 SPRING (Not Shown) - Tune-up kit, RS4150TK, including: 103, 104, 110, 304(7), 308, 309, 310, 411, 412, 418 (2), and 425. CAT4150 Rev. 06/04/10...
