Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
SPECIFICATIONS
Breakaway Torque. . . . . . . . . . . . . . . . . . . . . . . . 1,200 Ft./Lbs.
Maximum Applied Torque . . . . . . . . . . . . . . . . . . . 800 Ft./Lbs.
Working Torque Range . . . . . . . . . . . . . . . . . .50 - 550 Ft./Lbs.
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,500 RPM
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" NPT
Minimum Hose Size. . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . 4.9 CFM
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7/8"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Lbs
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . 97.3 dBA
CAT4150 / CAT4150G
• Parts Breakdown
WARNING
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
CAT4150
CAT4150G

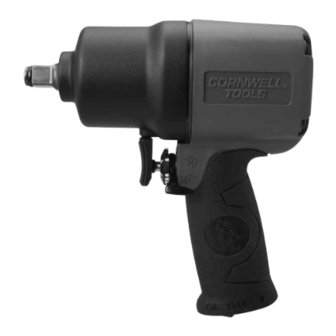

Super Duty
1/2" Dr. Composite
Impact Wrench
Copyright © Professional Tool Products, 2018
All rights reserved
05/29/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CAT4150G
Summary of Contents for Cornwell Tools CAT4150G
- Page 1 Sound Pressure Level ......97.3 dBA Copyright © Professional Tool Products, 2018 All rights reserved CAT4150 / CAT4150G 05/29/18...
- Page 2 • Keep tool out of reach of children. • Use accessories recommended by Cornwell Tools. • Air un der pres sure can cause se vere in ju ry. Nev er • Do not use (or modify) the tool for any other di rect air at your self or oth ers.
- Page 3 PARTS BREAKDOWN - CAT4150 / CAT4150G 102 103 REF. # ITEM # DESCRIPTION REF. # ITEM # DESCRIPTION RS4150101 Hammer Case RS2125423 Trigger B RS1761103 Hmmer Case Bushing RS2125402 Sprint Pin RS1761104 Socket Retainer RS3125403 Trigger Bushing RS4135104 O-Ring RS4150405...
- Page 4 Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. Cornwell Quality Tools Company 667 Seville Road • Wadsworth, OH 44281-1094 CAT4150 / CAT4150G 05/29/18...
