Summary of Contents for Falco FAL-35-ISS

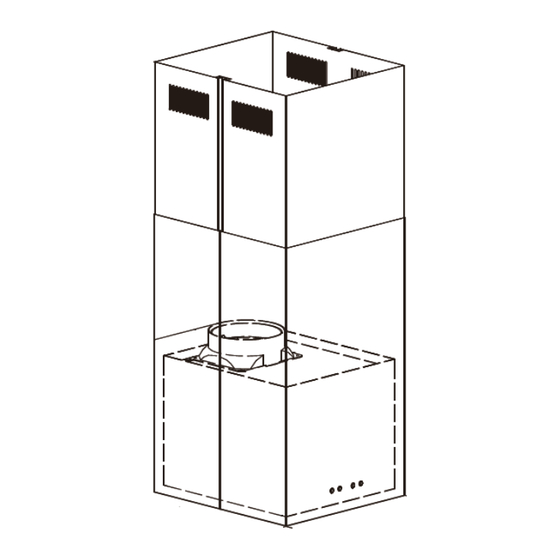

- Page 1 Cooker hood Instruction manual Model no.: FAL-35-ISS...
- Page 2 Using the extractor you purchased on any commercial application poses a serious fire risk and will result in immediate void of your warranty. Please contact our Falco offices for assistance with Gas Braai Extractors. 3. Q: What is the correct installation height? A: The recommended installation height is 700mm above gas and 650mm above electrical.
- Page 3 A: Yes. Please make sure of your measurements before starting your installation process. Additional bottom chimneys and installation brackets are sold by Lategan & Van Biljoens in Pretoria and they are used to extend the chimneys on Falco units. 13. Q: My extractor is blowing and not extracting? A: There are three main reasons that can cause your extractor to blow instead of extracting and most of the time (98%), this is caused by faulty installations.
- Page 4 A: Full range of spares is available from Lategan & Van Biljoens in Pretoria. www.appliancesspares.co.za 15. Q: What is the diameter of my ducting hose? A: 150mm 16. Q: More Queries? A: Please email any queries to: info@falco.co.za, Tel: 011 454 6423/4314. Spares can be viewed and ordered online: www.appliancespares.co.za...
- Page 5 1. Notice Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place. The installation work must be carried out by a qualified electrician or competent person.
-
Page 6: Installation
3. Installation 1. The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect. See Pic 1. Pic 1 2. The ceiling must can bear at least 120KGs weight, and the thickness of the ceiling must be ≥30MM;... -
Page 7: Safety Warning
4. Connect angel iron with casing by machine silk and washer, equip the extensible pipe on the outlet, put the inside chimney into the casing. See pic.3 5.Hang the hood and connect the iron angle with the hanging board with screws. See pic. -
Page 8: Speed Adjustment
Do not exhaust the gas from cooker hood through the same heated flue which is for the gas from gas hob and other kitchen appliances. Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home. - Page 9 Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy. Method 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.
-
Page 10: Abnormity And Solution
7.Abnormity and Solution Fault Cause Solution The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor Light on, but motor does not work The motor jammed bearing Replace motor damaged The internal with of motor Replace motor off or a bad smell from the motor Beside the above mentioned, check the following:... - Page 11 Warranty and service certificate: This certificate is issued by Falco Domestic Appliances, supplier of ALL Unbranded Falco Extractor fan models. Hereinafter referred to as ‘The Company’, to the original purchaser only, of the product/appliances described on the certificate and shall constitute the only warranty given in respect of this product/appliance.
