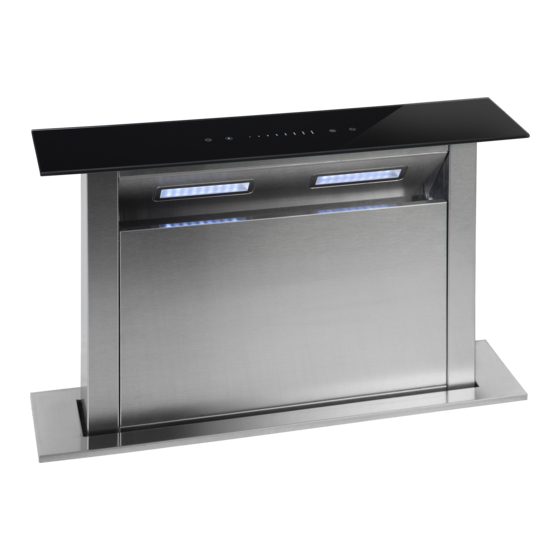

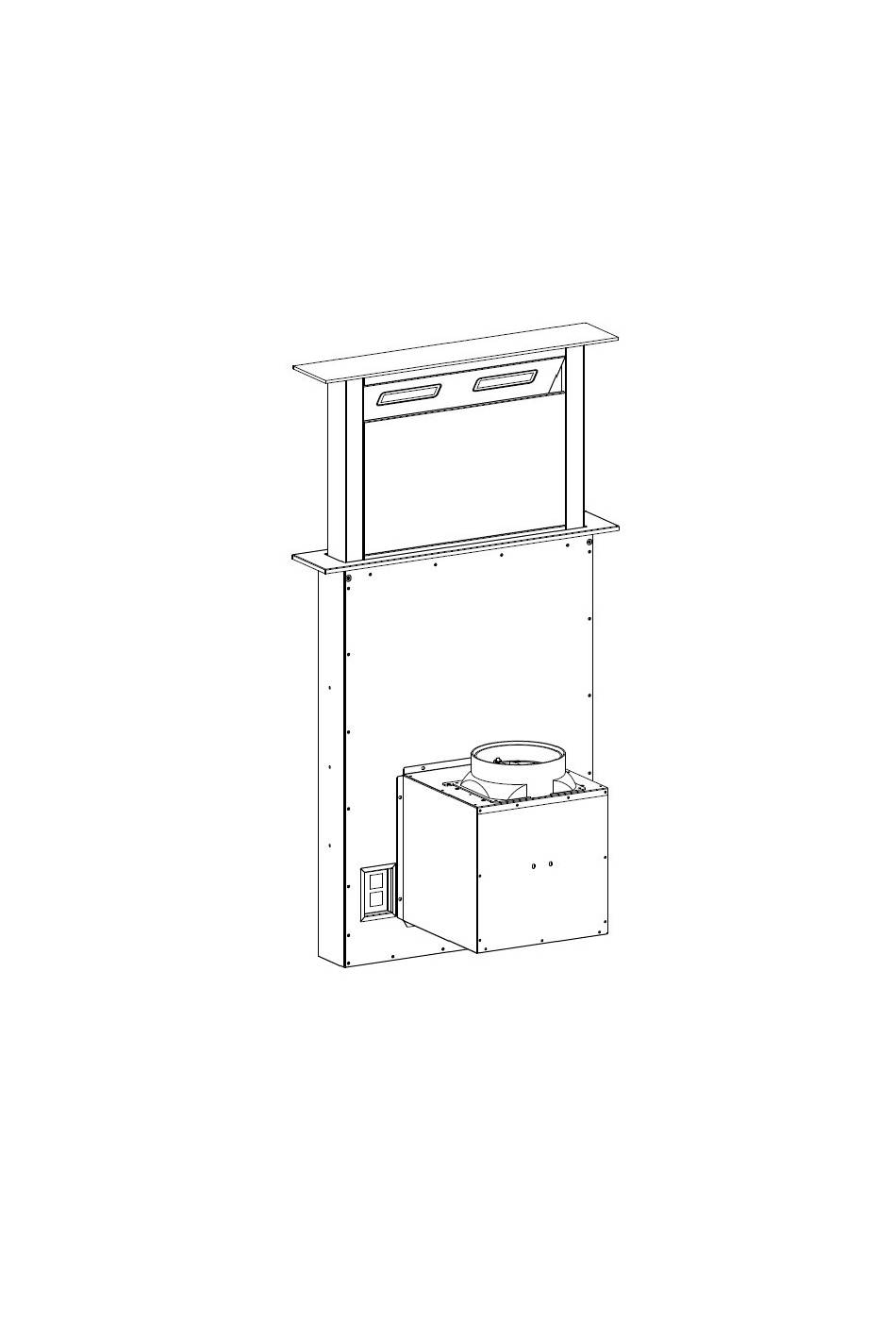

- Page 1 Cooker Hood Instruction Manual Model no.: FAL-60-DDG / FAL-90-DDG...
- Page 2 Page 1 (Inside) Please be careful when removing and installing the Island installation Brackets and Stainless Steel chimneys. The Stain Less steel chimneys contains sharp edges and can possibly lead to cuts. Generally asked Questions and Answers: 1. Q: My extractor fan is not extracting A: before logging a service call please ensure the installation on your extractor fans was done properly to avoid a service call out fee charge.
- Page 3 You can also download it from www.falco.co.za 7. Q: How often do I have to replace my filters? A: With daily use we recommend that you replace your charcoal filters every 6 months. Your aluminium filters can be cleaned in luke warm water and dishwashing liquid.
- Page 4 11. Q: Why is there rust marks on my extractor? A: Stainless steel can rust if cleaned with abrasive cleaners. The chemicals inside abrasive cleaners react with the stainless steel and the result will be rust. There are many day to day cleaning products in our kitchens that are abrasive cleaners and unknown to the consumer.
- Page 5 A: Full range of spares are available from Lategan & Van Biljoens in Pretoria. www.appliancesspares.co.za 15. Q: What is the diameter of my ducting hose? A: 150mm 16. Q: More Queries? A: Please email any queries to: christie@falco.co.za, Tel: 011 454 6423/4314. Spares can be viewed and ordered online: www.appliancespares.co.za...
-
Page 6: Safety Warning
SAFETY WARNING Never let children operate the cooker hood. The cooker hood is for home use only. It is not suitable for barbecues, Roast shop and other commercial purposes. The installation must be completed by a qualified and competent fitter, and connect the correct power before use. - Page 7 FEATURES The cooker hood has a streamlined design and is made with high quality materials. Other features include a large power low noise electric motor and centrifugal leaf that produces strong suction. Also, a non-stick grease filter ensures that the cooker hood is easy to clean. The cooker hood’s special wind tunnel construction and oil collector design enables free dirt to be absorbed in seconds.
- Page 8 INSTALLATION 1. The cooker hood should be placed at a distance of 15mm from the wall at least. (See Pic1) 2. Put moderate glass cement on the edge of the panel bottom(See pic 3), and put the hood into the hole of the cabinet.(See pic Use 4pcs screw ST4*8 &...
-
Page 9: Lamp Replacement
LAMP REPLACEMENT Open the door of the hood, insert the gap by a small screw-driver with”-“type and prize up the lamp (see pic8). But switch the unit off and pull out the plug first. Pic 8 Pic 9 MAINTENANCE Replace and clean the filter Please follow the below filter dismantled method operation (See pic 9) Method 1: Put the filter into 40-50°C clean water, pour on detergent, and soak for 2-3 minutes. - Page 10 SWITCH INSTRUTION This control system consists of two parts, power panel and touch panel. Touch panel contains five function buttons (power, speed, light, timer, slide control) Timer Light Slide control Speed Power Functional Operation 1 Power on, the hood will standby with backlight, backlight will be extinguished after 5 seconds without any operation, for using the hood again, touch any key to wake up it’s standby motion.
- Page 11 4.3 When you touch the button of light , the pilot light is flashing. Slide the button to control the light intensity when the pilot light is flashing. When enter into the controlling of light intensity, the silde button control the light intensity. There is 8 speeds of slide button when lighting, every speed means one light intensity.
