Summary of Contents for Falco FAL-70-ICGW

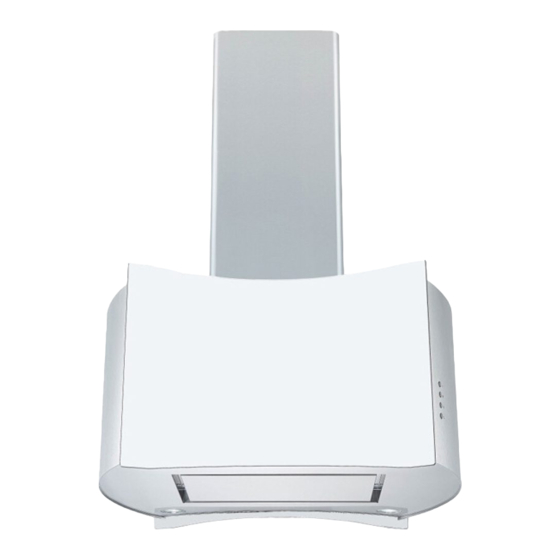

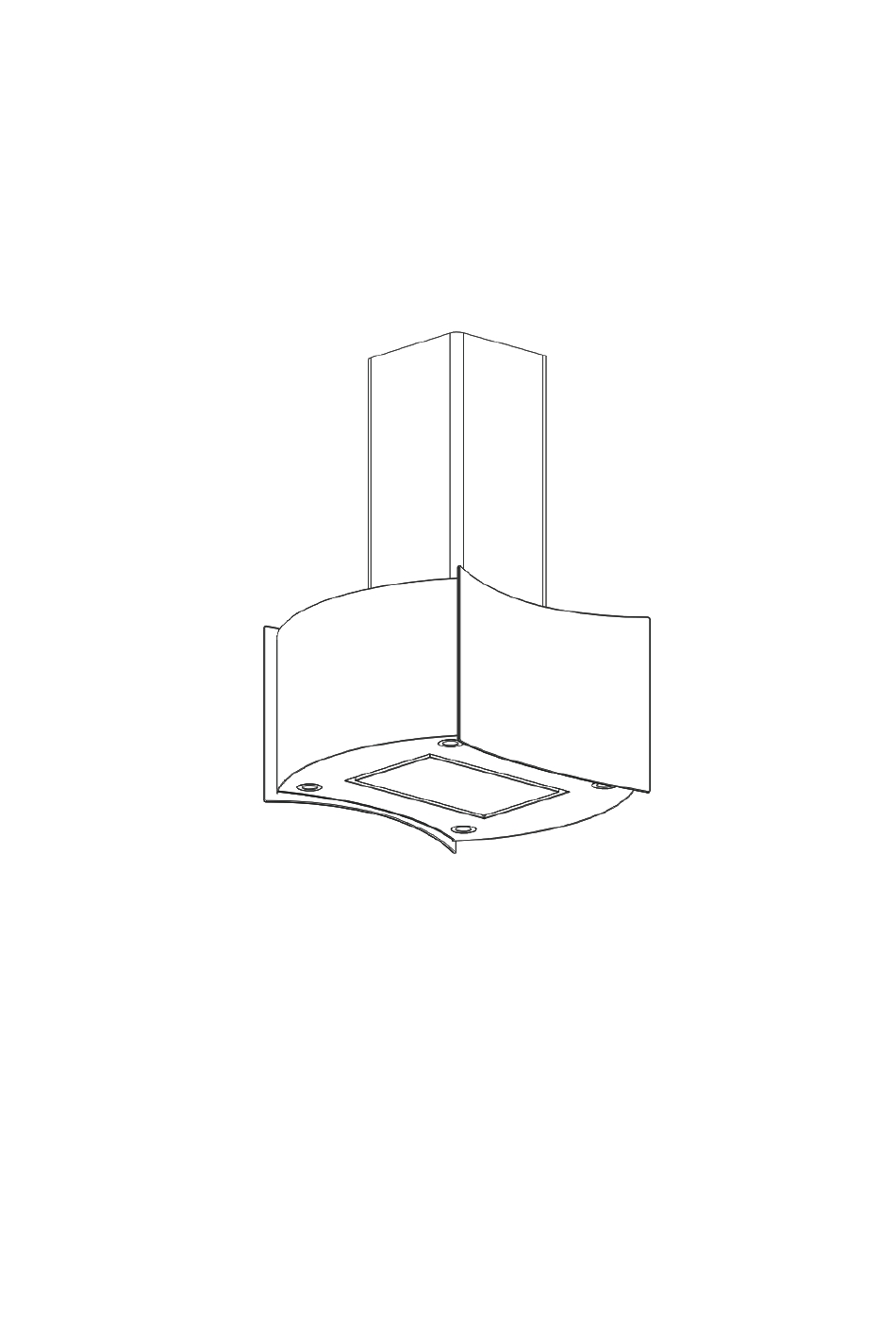

- Page 1 Cooker Hood Instruction Manual Model no.: FAL-70-ICGW...
- Page 2 Using the extractor you purchased on any commercial application poses a serious fire risk and will result in immediate void of your warranty. Please contact our Falco offices for assistance with Gas Braai Extractors. 3. Q: What is the correct installation height? A: The recommended installation height is 700mm above gas and 650mm above electrical.
- Page 3 A: Yes. Please make sure of your measurements before starting your installation process. Additional bottom chimneys and installation brackets are sold by Lategan & Van Biljoens in Pretoria and they are used to extend the chimneys on Falco units. 13. Q: My extractor is blowing and not extracting? A: There are three main reasons that can cause your extractor to blow instead of extracting and most of the time (98%), this is caused by faulty installations.
- Page 4 A: Full range of spares is available from Lategan & Van Biljoens in Pretoria. www.appliancesspares.co.za 15. Q: What is the diameter of my ducting hose? A: 150mm 16. Q: More Queries? A: Please email any queries to: info@falco.co.za, Tel: 011 454 6423/4314. Spares can be viewed and ordered online: www.appliancespares.co.za...
- Page 5 NOTICE Thank you for choosing our cooker hood. Please read the instruction manual carefully before use. The installation work must be undertaken by a qualified and competent fitter. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.
-
Page 6: Installation
INSTALLATION 1. The cooker hood should be placed at a distance of 65-75cm (26- 30inch) from the cooking surface for the best effect. See Pic 1. 2. The ceiling must can bear at least 120kgs weight, and the thickness of the ceiling must be ≧30MM, see pic 2, drill 1*170mm round hole in the ceiling. -
Page 8: Notice Of Installation
NOTICE OF INSTALLATION 1. Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust. 2. It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. 3. - Page 9 supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision The instructions shall state the substance of the following: –...
- Page 10 Electronic button 1. Push the low button, the indicating light on, and the motor runs at low speed. Push it again and the motor will stop. 2. Push the middle button, the indicating light on, and the motor runs at mid speed. Push it again and the motor will stop. 3.
- Page 11 MAINTENANCE 1. The cleaning of the aluminium filter Method 1: Put the filter into 40-50℃ clean water, pour on detergent, and soak for 2-3 mins. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the filter is delicate and will damage easy. Method 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.
-
Page 12: Abnormity And Solution
ABNORMITY AND SOLUTION Fault Cause Solution The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor Light on, but motor does not work The motor jammed bearing Replace motor damaged The internal with of motor off or Replace motor a bad smell from the motor Beside the above mentioned, check the following:... - Page 13 Warranty and service certificate: This certificate is issued by Falco Domestic Appliances, supplier of ALL Unbranded Falco Extractor fan models. Hereinafter referred to as ‘The Company’, to the original purchaser only, of the product/appliances described on the certificate and shall constitute the only warranty given in respect of this product/appliance.
