Summary of Contents for Falco HEE92(900MM)

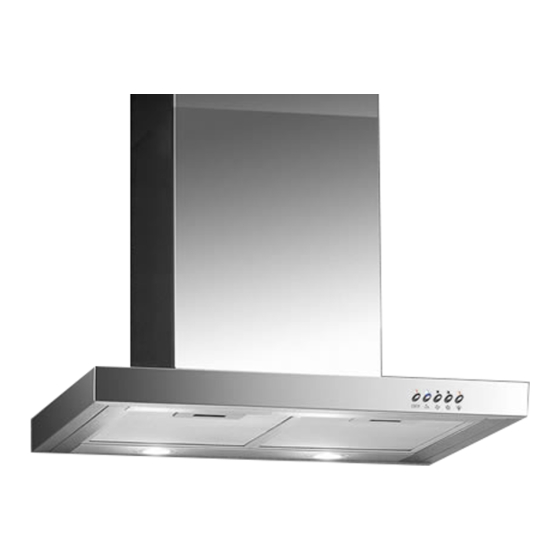

- Page 1 USE AND CARE GUIDE WALL MOUNTED HOOD MODELS: HEE92(900MM) HEE91(A-600MM) HEE22(600MM) HEE22(900MM) HEE96(600MM) HEE65(900MM) HEM52(A-900MM) HEM52(A-600MM) HEE22(F-1100MM) HEM52(A-600MM)
- Page 2 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5...
-
Page 3: Safety Precaution
Fig.6 Fig.7 GENERAL Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside – Fig.1B), filtering version (air circulation on the inside –... -
Page 4: Installation Instructions
2. WARNING! In certain circumstances electrical appliances may be a danger hazard. A) Do not check the status of the filters while the cooker hood is operating B) Do not touch bulbs or adjacent areas, after prolonged use of the lighting installation. - Page 5 The connection to the mains is carried out as follows: IEC227 North America L=live Brown Black N=neutral Blue White E=earth Green/Yellow Green If the plug is not provided, connect the electrical load as indicated on the description label. When a plug is provided, the cooker hood must be installed in order that the plug is easy to access.
-
Page 6: Use And Maintenance
• FIXING THE DECORATIVE TELESCOPIC FLUE Arrange the electrical power supply within the dimensions of the decorative flue. If your appliance is to be installed in the ducting version or in the version with external motor, prepare the air exhaust opening. Adjust the width of the support bracket of the upper flue (Fig.3). - Page 7 • The active carbon filters purify the air that is replaced in the environment. The filters are not washable or reuseable and must be replaced at maximum every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, also by the type of cooking and the regularity of cleaning on the anti-grease filters.
- Page 8 Fig.C Fig.D Fig.8 • FUNCTION KEYS: (Fig.8) MODEL: HEE92(900MM) HEE91(A-600MM) A = OFF HEE22(600MM) HEE22(900MM) B = SPEED I / OFF HEE96(600MM) HEE65(900MM) C = SPEED II / OFF HEM52(A-900MM) HEM52(A-600MM) D = SPEED III / OFF HEE22(F-1100MM) HEM52(A-600MM) E = LIGHT •...
- Page 9 Fig.9 • FUNCTION KEYS :( Fig.9) MODEL: A= Filtering system / Set clock HES30(C-900MM) HES30(S-900MM) HES30(S-600MM) HES33(C-900MM) B= Delay Timer C= Speed S1/ “-” adjust / off D= Digital display E= Speed S1/ “+” adjust / off F= Alarm G= Light When the Key A is flashing, at the same time “...
-
Page 10: Troubleshooting
Troubleshooting Problem Possible reason Solution Hood doesn’t work Electric supply Check whether the plug is connected Check whether the main switch is turned on Poor airflow Aluminum grease filters Clean the filters, assembly back clogged when dry Charcoal filters clogged Replace the charcoal filters Motor running Butterfly valve jammed... - Page 11 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
