Summary of Contents for Falco FAL70GI

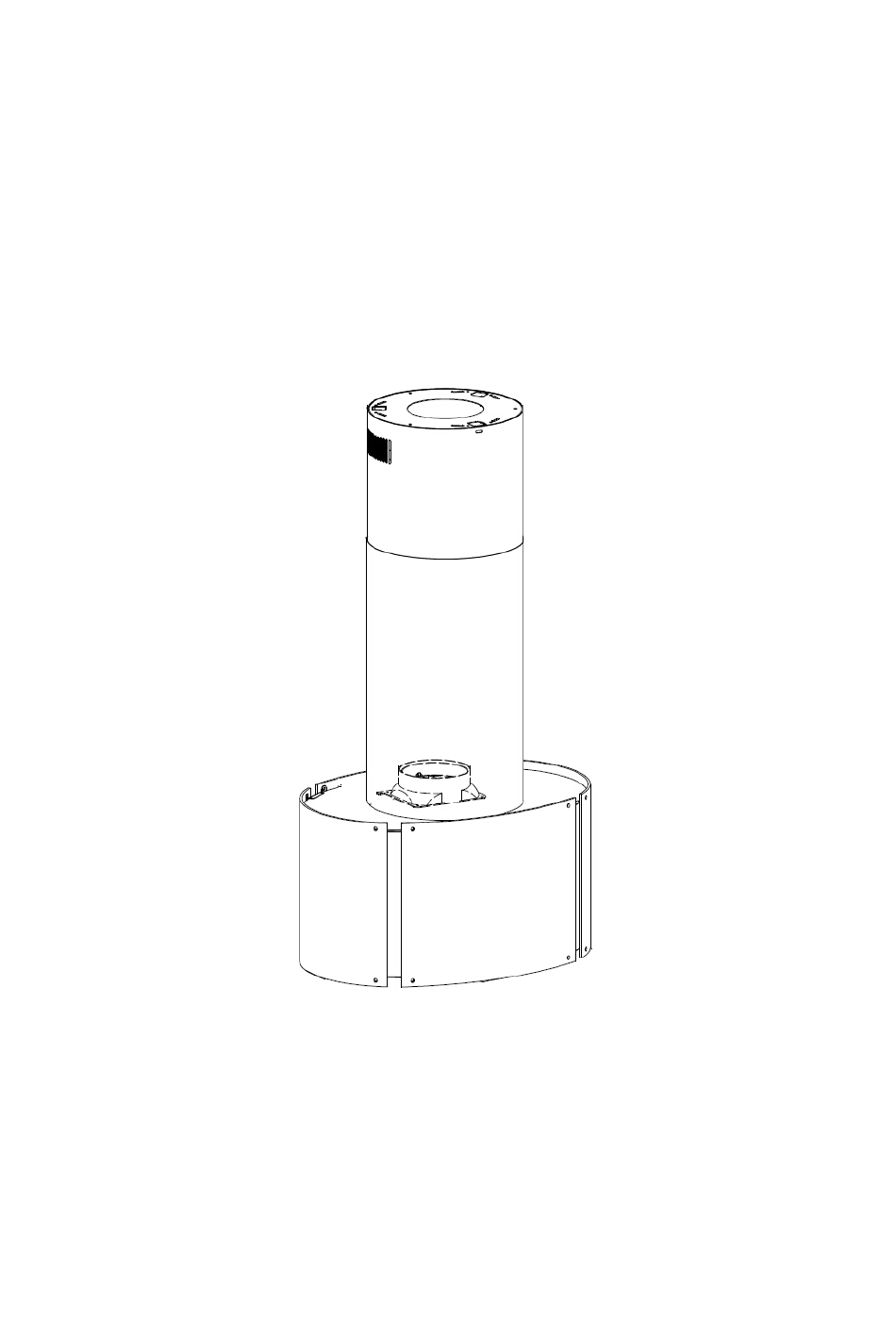

- Page 1 Cooker hood Instruction manual Model No.: FAL70GI ...
- Page 2 Using the extractor you purchased on any commercial application poses a serious fire risk and will result in immediate void of your warranty. Please contact our Falco offices for assistance with Gas Braai Extractors. 3. Q: What is the correct installation height? A: The recommended installation height is 700mm above gas and 650mm above electrical.
- Page 3 A: Yes. Please make sure of your measurements before starting your installation process. Additional bottom chimneys and installation brackets are sold by Lategan & Van Biljoens in Pretoria and they are used to extend the chimneys on Falco units. 13. Q: My extractor is blowing and not extracting? A: There are three main reasons that can cause your extractor to blow instead of extracting and most of the time (98%), this is caused by faulty installations.
- Page 4 A: Full range of spares is available from Lategan & Van Biljoens in Pretoria. www.appliancesspares.co.za 15. Q: What is the diameter of my ducting hose? A: 150mm 16. Q: More Queries? A: Please email any queries to: info@falco.co.za, Tel: 011 454 6423/4314. Spares can be viewed and ordered online: www.appliancespares.co.za...
- Page 5 Warning Do not allow children to operate the cooker hood without any supervision. Your cooker hood is for domestic used only and it is not designed to be used in commercial purpose. Any installation work must be carried out by a qualified technician or competent person. The cooker hood and its aluminium filter should be cleaned regularly in order to keep it in good working condition. Before cleaning, always ensure that the cooker hood has been turn off. Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning. Do not light up any fire directly under the cooker hood. If there is any problem with the cooker hood, please contact the service department immediately. Please ensure there is enough ventilation when you are using the cooker hood and hob at the same times. Do not connect the hood to exhaust ducts carrying combustion fumes such as boilers, fireplaces and etc. ...
-
Page 6: Function And Features
Function and Features The cooker hood is made of high quality materials with streamlined design according to technical and physical engineering theory. The cooker hood is made of high quality materials with streamlined design according to technical and physical engineering theory. It is equipped with a high suction power electric motor and centrifugal leaf, it produces strong suction, low noise, non ‐stick grease filter and is easy to clean. With the isolated low voltage circuit board control, 4vAC input, the light are more concentrative and is very safe to use. The grease filter is easy to remove for cleaning. It comes with a special wind tunnel structure and oil collector design to avoid any residue grease that may be left in the flue. ... -
Page 7: Installation
Installation Pic 1 1.The cooker hood should be placed at a distance of 60-70cm from an electric hob and 65-70cm for gas hob for the best performance. Refer to Pic 1. 2.The ceiling should be able to bear at least 120KG in weights and the thickness must more than 30mm. -
Page 8: Operation
Pic 5 Operation: The switch is operated as below (Pic. 6): After connecting to power, the cooker hood will beep to indicate it is in standby mode . Press the button once and the cooker hood will run at the lowest speed. Press the button again and it will run and medium and high speed respectively. -
Page 9: Maintenance
Maintenance Changing and cleaning the filter. (See Pic 7) Remove the aluminum filters and soak them into hot water. You can pour some dish washing detergent in it and leave it for 5-10 minutes. Use a sponge to remove stain from the surface. -
Page 10: Changing The Light Bulbs
Changing the light bulbs Before changing the lights, make sure that the cooker hood has been switch off. Loosen the screw on the round glass and then removed the glass panel. 4. Push the connection of the light to remove the light bulb 5. - Page 11 Warranty and service certificate: This certificate is issued by Falco Domestic Appliances, supplier of ALL Unbranded Falco Extractor fan models. Hereinafter referred to as ‘The Company’, to the original purchaser only, of the product/appliances described on the certificate and shall constitute the only warranty given in respect of this product/appliance.
