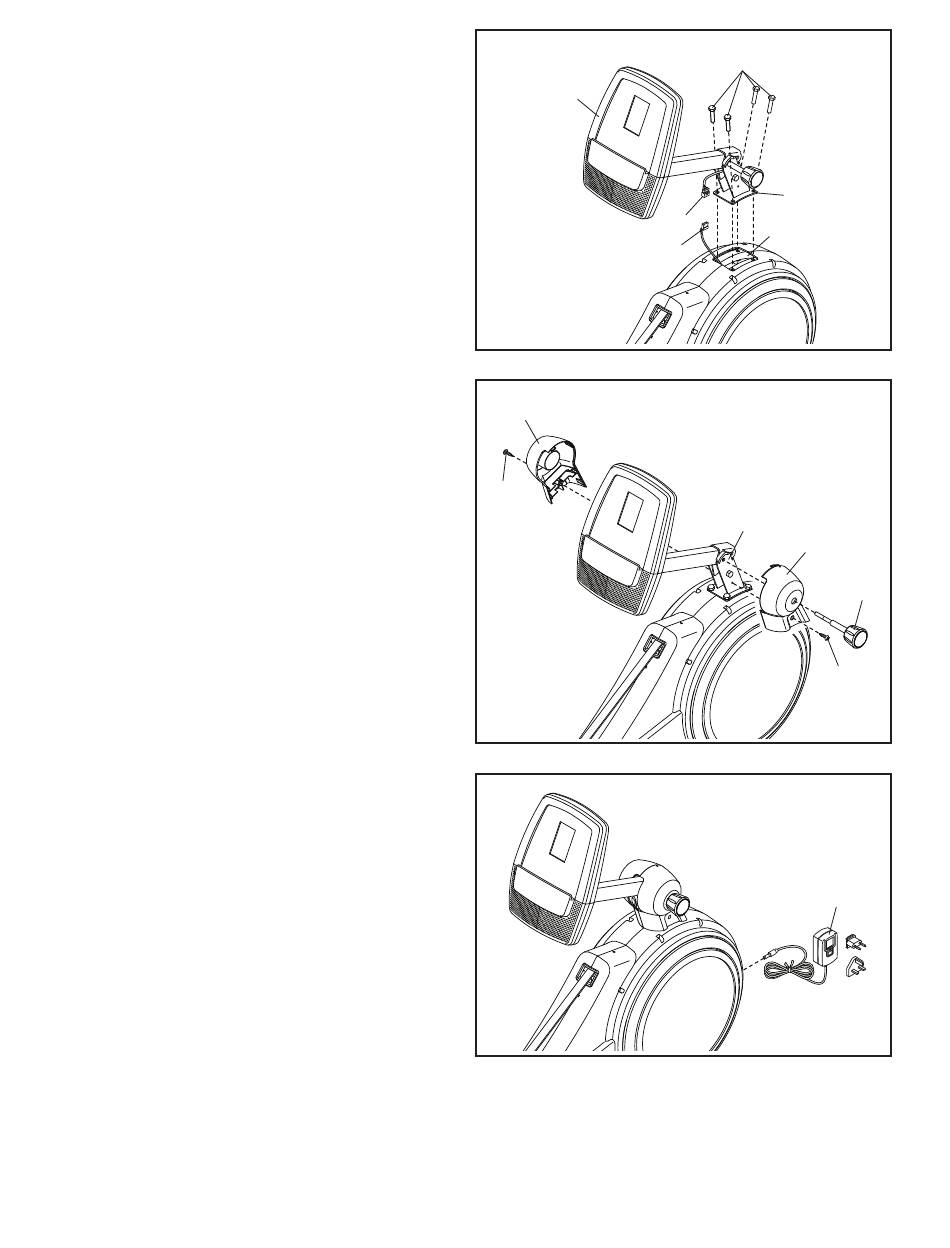

7. While a second person holds the Console (75)
and the Upright (77) near the Frame (1), connect
the Upright Wire (84) to the Main Wire (109).
Insert the excess wire into the Frame.
Tip: Avoid pinching the wires. Attach
the Upright (77) to the Frame (1) with four
M8 x 35mm Screws (82); start all the Screws,
and then tighten them.
8. Loosen and remove the Knob (78) from the
Upright (77).
Next, identify the Right and Left Upright Covers
(80, 81), and orient them as shown.
Press the Right and Left Upright Covers
(80, 81) together around the Upright (77), and
attach them to the Upright with two M4 x 16mm
Screws (68).
Then, insert the Knob (78) into the Right Upright
Cover (80) and tighten it into the Upright (77).
9. Plug the Power Adapter (108) into the receptacle
on the front of the rower.
Note: To plug the Power Adapter (108) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 10.
10. Make sure that all parts are properly tightened. Extra parts may be included. Place a mat beneath the
rower to protect the floor.
