Rayburn 300K Installation & Servicing Instructions Manual

308K OFCERT Licence No.: 0400040014
300K OFCERT Licence No.: 0400040013
Consumer Protection Act 1987
As responsible manufacturers we take care to make sure that our
products are designed and constructed to meet the required safety
standards when properly installed and used.
IMPORTANT NOTICE: Any alteration that is not approved by AGA, could
invalidate the approval of the appliance, operation of the warranty and could
also affect your statutory rights.
Control of Substances - Health and Safety
Important
This appliance may contain some of the materials that are
indicated. It is the Users/Installers responsibility to ensure that the
necessary personal protective clothing is worn whenhandling,
where applicable, the pertinent parts that contain any of the listed
INTRODUCTION

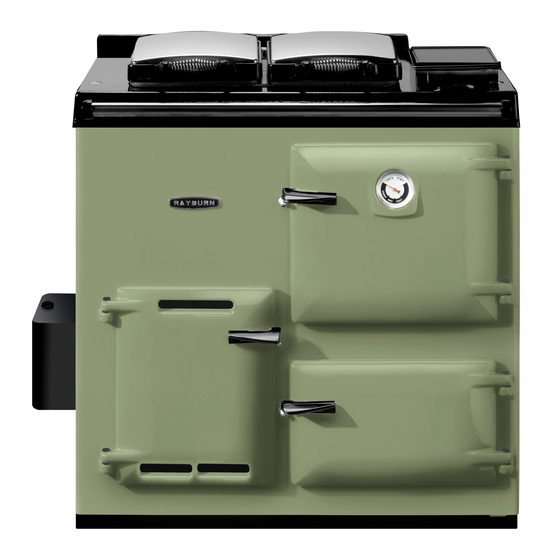

The Rayburn 308K is a cooker providing domestic hot
water and cooking facilities. It is available with a vertical
flue and outlet only, with the oil burner operating on
natural draught.
The boiler is designed for use in an open vented water
system only, with gravity D.H.W. primaries.
The heat exchanger is manufactured from a high quality
stainless steel and where permitted by local water
authorities may be used on direct hot water systems,
although it is preferable to use the indirect system.
Alternatively, the Rayburn 300K is a non-boiler model.
However with this model the IDLING TEMPERATURE
MAY BE HIGHER.
These appliances must only be used with Commercial
Kerosene current issue to BS 2869: Class C2 suitable
for vapourising burners.
IMPORTANT: IN ORDER TO ACHIEVE THE OPTIMUM
PERFORMANCE FROM THIS APPLIANCE, IT IS
ESSENTIAL THAT THE INITIAL COMMISSIONING OF
THE APPLIANCE IS UNDERTAKEN BY SELECTED,
Heat Input
Heat Output
Water
Oil Input
Boiler Water Connections
Flow (one)
Return (one)
Both connections are located towards the
rear edge of the appliance L.H. side panel.
Oil Valve Inlet
Flue Outlet Dia. 102mm
raywarranty@aga-web.co.uk
Cooker
LOW
kW 2.78
Btu/h 9,497
kW 0.59
Btu/h 2,000
cc/minute 4.5
Rp 1 (1in BSP Int)
Rp1 (1in BSP Int)
Rp ¼ (¼ in BSP Int)
Installation & Servicing Instructions
Rayburn 308K Oil-Fired Cooker
materials that could be interpreted as being injurious to health and
safety, see below for information.
Firebricks, Fuel beds, Artificial Fuels - when handling use
disposable gloves.
Fire Cement - when handling use disposable gloves.
Glues and Sealants - exercise caution - if these are still in liquid
form use face mask and disposable gloves.
Glass Yarn, Mineral Wool, Insulation Pads, Ceramic Fibre,
Kerosene/Gas Oil - may be harmful if inhaled, may be irritating to
skin, eyes, nose and throat. When handling avoid inhaling and
contact with skin or eyes. Use disposable gloves, face-masks and
eye protection. After handling wash hands and other exposed
parts. When disposing of the product, reduce dust with water
spray, ensure that parts are securely wrapped.
TRAINED INSTALLING SERVICE ENGINEERS (SUCH
AS OFTEC APPROVED).
YOUR RAYBURN STOCKIST WILL PROVIDE ADVICE
ON THE LOCATION OF THE NEAREST INSTALLING
ENGINEER.
CONTRACT OUT THE PERIODIC SERVICING OF THE
APPLIANCE TO THIS INSTALLING SERVICING
ENGINEER.
THIS APPLIANCE IS A CONTROLLED SERVICE BY
DEFINITION AND REQUIRES EITHER FITMENT
UNDER THE REMIT OF BUILDING CONTROL OR
INSTALLATION BY AN OFTEC REGISTERED 105
TECHNICIAN (CLASSED AS A COMPETENT
PERSON) WHO CAN SELF CERTIFY HIS OWN
WORKS.
REMEMBER, when replacing a part on this
appliance, use only spare parts that you can be
assured conform to the safety and performance
specification that we require. Do not use
reconditioned or copy parts that have not been
clearly authorised by AGA.
Boiler Model - 308K
Cooker
HIGH
7.42
25,321
2.34
8,000
12.0
Weight of
Appliance Overall Height: 995mm
Dimensions
FUEL - COMMERCIAL KEROSENE current
issue to BS.2869: Class C2 suitable for
vapourising burners
1
for Rayburn 300K and
WE ALSO RECOMMEND
Non-Boiler Model
300K
Cooker Cooker
LOW HIGH
2.16 5.48
7,386 18,700
3.5 8.5 - 9.0
300Kg
Width: 940mm
Depth: 655mm
01/10 EINS 511985
YOU
