Rayburn Heatranger 345W Installation Instructions Manual

Consumer Protection Act 1987

As responsible manufacturers, we take care to make sure that our
products are designed and constructed to meet the required safety
standards when properly installed and used.
IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING
WARRANTY: Any alteration that is not approved by AGA, could
invalidate the approval of the appliance, operation of the warranty
and could also affect your statutory rights.
All local regulations including those referring to national and
European standards need to be complied with when installing
the appliance.
Control of Substances - Health and Safety
Important
This appliance may contain some of the materials that are indicated.
It is the Users/Installers responsibility to ensure that the necessary
personal protective clothing is worn when handling, where

PERFORMANCE

REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and
performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA.
This appliance has been tested using wood logs only. It is not suitable to burn solid mineral fuel as the excessive heat will damage the
appliance. The nominal heat output is indicated in the table below. Other wood fuels may give a slightly different result. These outputs
were achieved using a 1.5 hour re-fuelling cycle.
Total weight of appliance - 370 Kg.
Although there is no requirement for an electrical power supply, a low limit thermostat is incorporated in the boiler and must be
earthed.
Fuel Mode
Wood Logs Winter
1
Re-fuel period is 1 / hours.
2
raywarranty@aga-web.co.uk

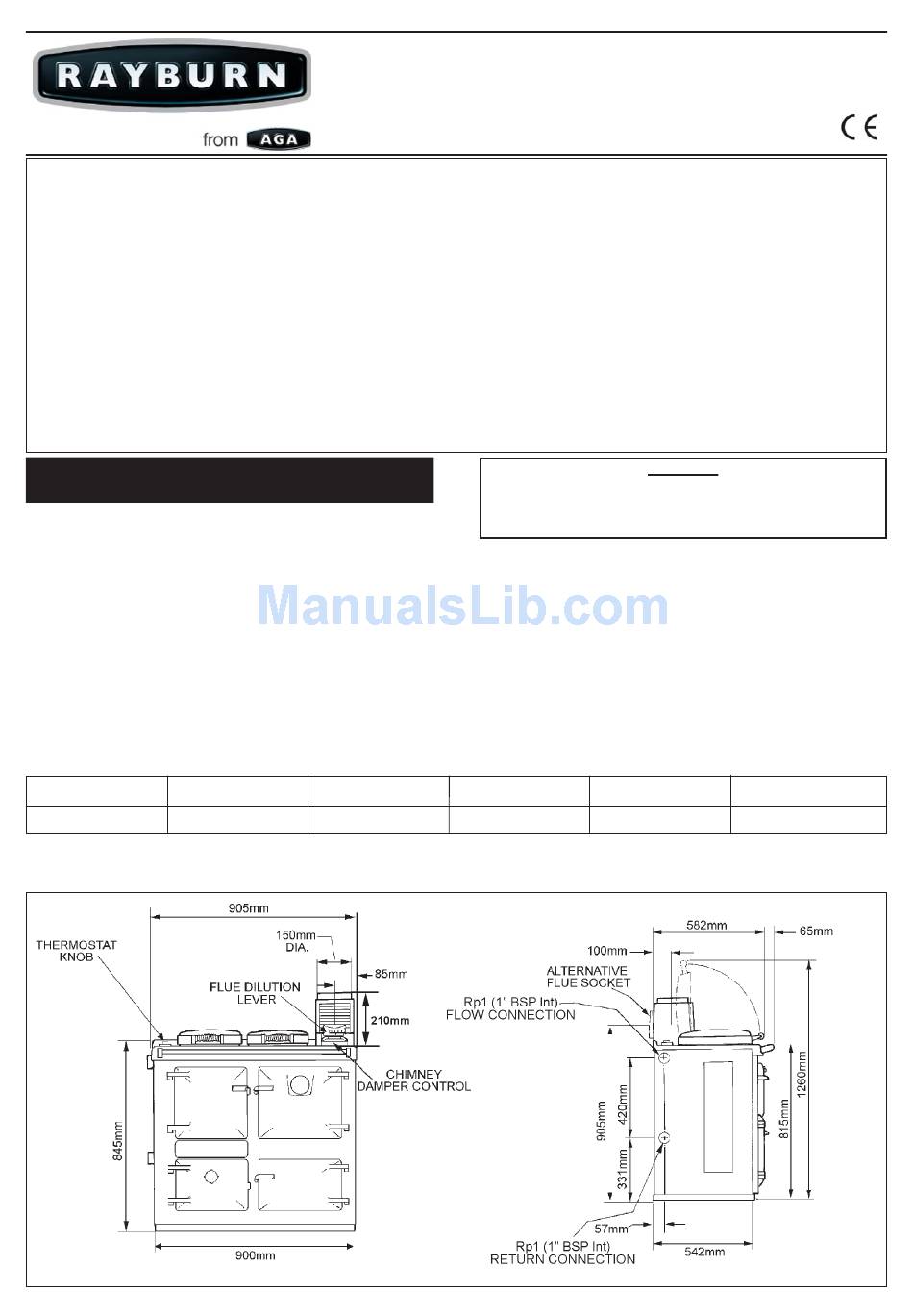

Installation Instructions.
Rayburn Heatranger 345W

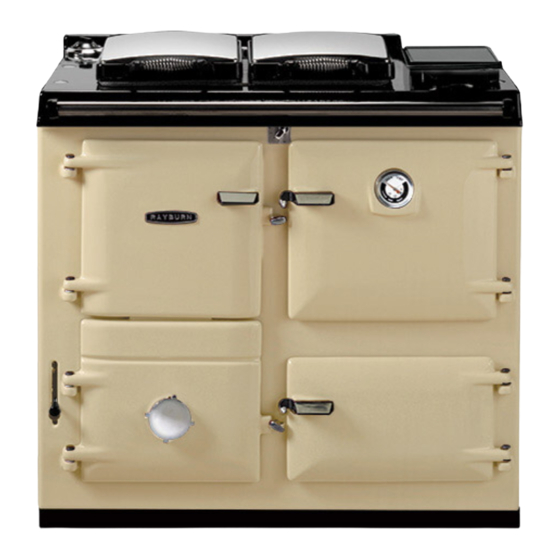

Wood Burning Cooker
Total (kW) To Space (kW)
14.1 5.0
applicable, the pertinent parts that contain any of the listed materials
that could be interpreted as being injurious to health and safety, see
below for information.
Firebricks, Fuel beds, Fuels - when handling use disposable
gloves.
Fire Cement - when handling use disposable gloves.
Glues and Sealants - exercise caution - if these are still in liquid
form use face mask and disposable gloves.
Glass Yarn, Mineral Wool, Insulation Pads, Ceramic Fibre,
Kerosene Oil - may be harmful if inhaled, may be irritating to skin,
eyes, nose and throat. When handling avoid inhaling and contact
with skin or eyes. Use disposable gloves, face-masks and eye
protection. After handling wash hands and other exposed parts.
When disposing of the product, reduce dust with water spray,
ensure that parts are securely wrapped.
WARNING
THE ASHPIT AND FIREBOX DOORS MUST BE LOCKED
CLOSED AT ALL TIMES DURING NORMAL USE, EXCEPT
WHEN LIGHTING OR RE-FUELLING.
To water (kW)
9.1
Flue Gas Mass Flow
14.0 g/s
DESN 510278 D
10/09 EINS 515578
