Data Exchange
10 Set P/C Time to the desired number of milliseconds between noting timeout
errors. This field requires a minimum value of 5.
11 Set IP Address to the IP address of your wireless master device.
12 Set Exch ID to a unique value. For the purpose of this example, 1 is fine.
13 Ensure that CS Major and CS Minor are each set to 0.
14 Click OK.
Your wireless slave is now configured to send data to the wireless master. Now
we will configure the wireless master to receive the data sent by the wireless
slave, so that it can pass it on to the attached slave devices.

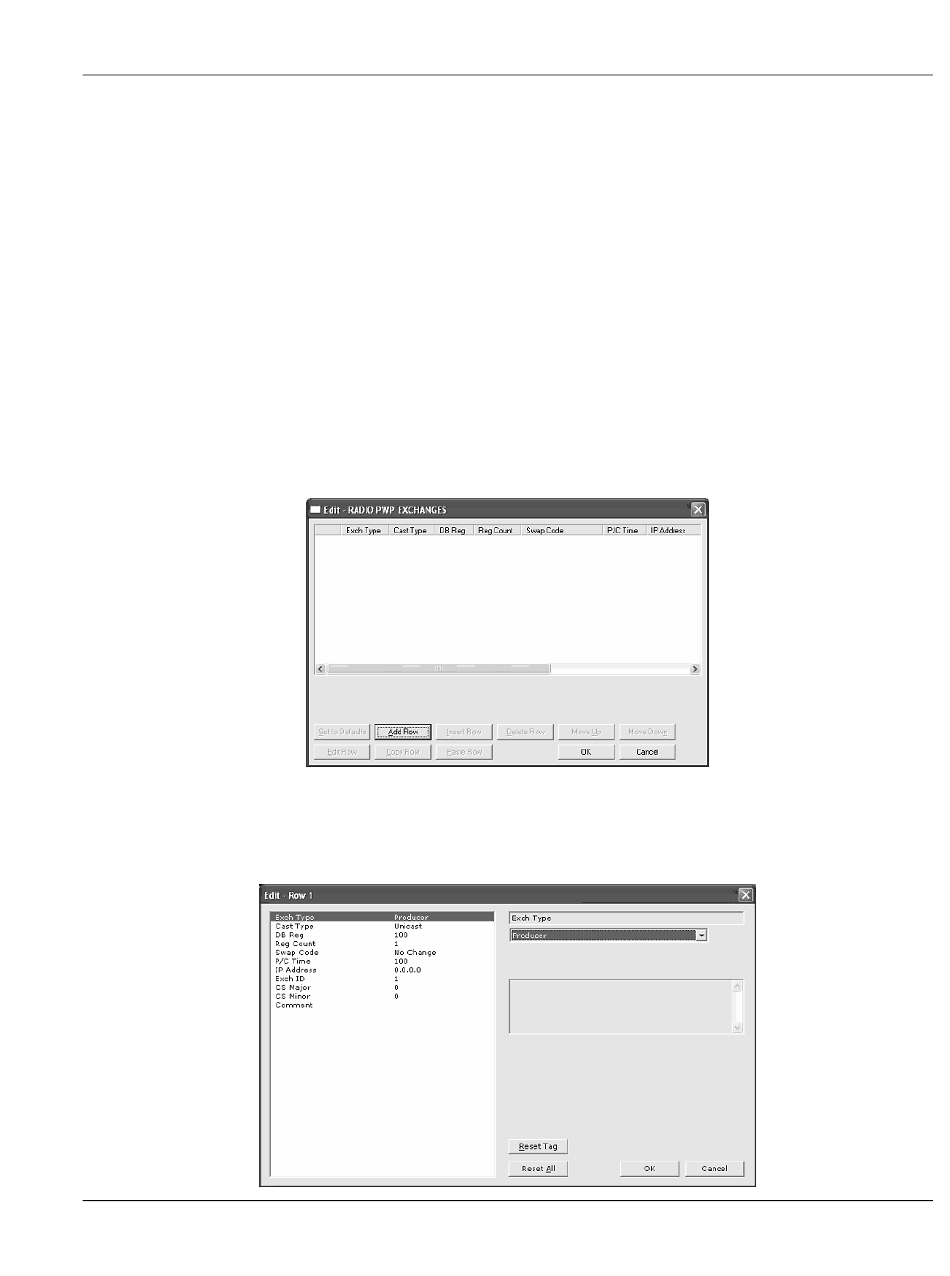

Under the master module, expand the Wireless Configuration node, and
1
double-click Radio PWP Exchanges. The Edit – Radio PWP Exchanges
dialog opens.
Click Add Row.
2
Double-click the newly added row. The Edit – Row 1 dialog opens.
3
