PROFIBUS Master and Slave

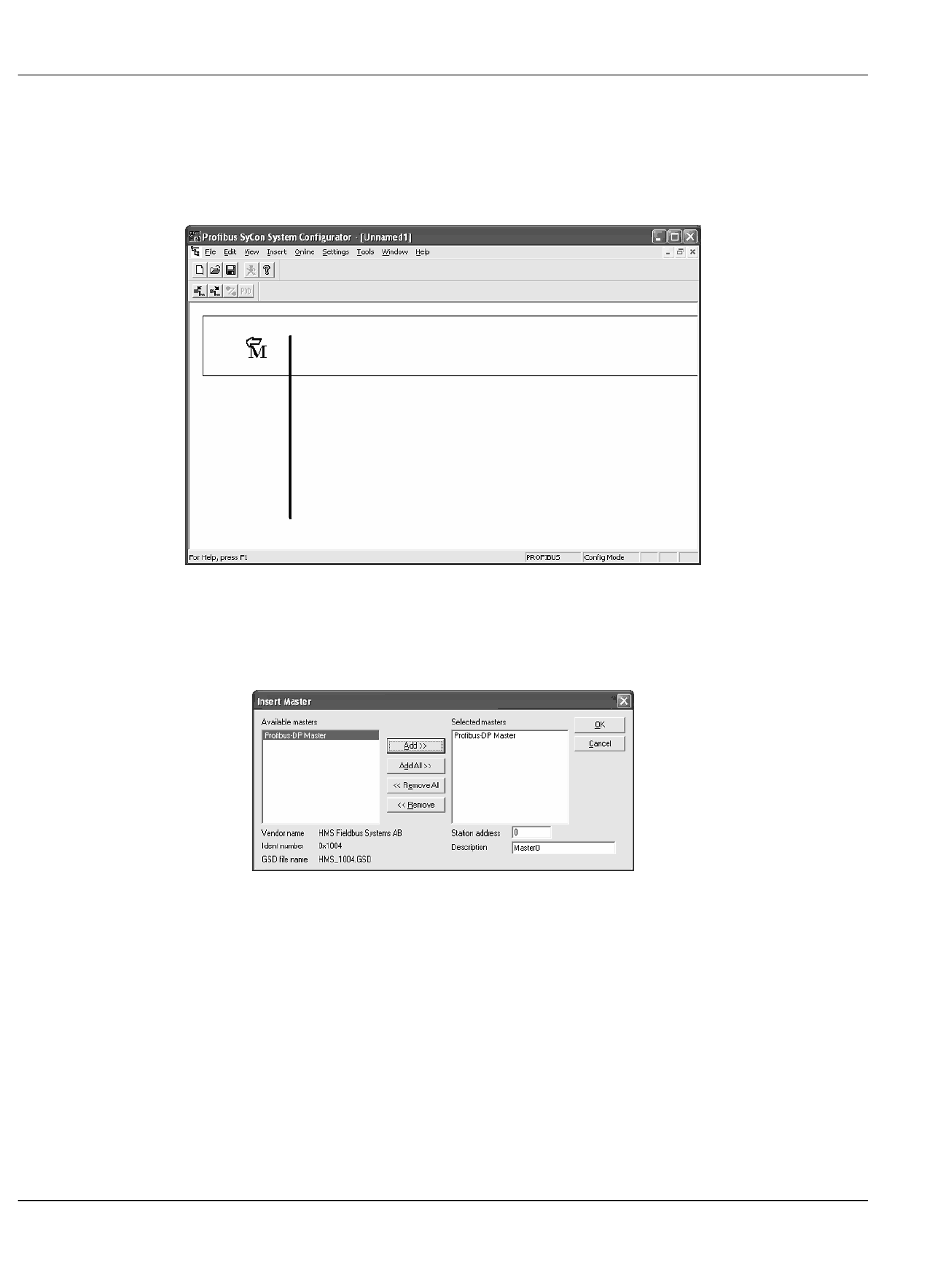

From the Insert menu, select Master... At this point the cursor will change to
4
reflect the fact that you are inserting a master module. Position the cursor as
seen in the image and click your primary mouse button once to insert the
module.
When the Insert Master dialog appears you will see PROFIBUS-DP Master
5
available in the list of available masters. Select it and click the Add >> button,
then click OK.
Your project now has a master device. Next, insert your remote slave devices
6
in the same fashion.
Save the project. We will come back to it in chapter 3.
