Related Manuals for Struers LaboForce-Mi
Summary of Contents for Struers LaboForce-Mi
- Page 1 LaboForce-Mi Instruction Manual Original Instructions Doc. no.: 16387025-01_B_en Date of release: 2020.11.16...
- Page 2 Copyright The contents of this manual are the property of Struers ApS. Reproduction of any part of this manual without the written permission of Struers ApS is not allowed. All rights reserved. © Struers ApS 2022.10.06. LaboForce-Mi...
-
Page 3: Table Of Contents
5.5 Noise and vibration levels 6 Operating the device 6.1 Control panel functions 7 Maintenance and service 7.1 General cleaning 7.2 Daily 7.3 Weekly 7.4 Spare parts 7.5 Service and repair 7.6 Disposal 8 Troubleshooting 9 Technical data 9.1 Technical data - LaboForce-Mi LaboForce-Mi... - Page 4 9.2 Diagrams - LaboForce-Mi 9.3 Legal and regulatory information 10 Manufacturer Declaration of Conformity LaboForce-Mi...
-
Page 5: About This Manual
1 About this manual About this manual Instruction Manuals Struers equipment must only be used in connection with and as described in the Instruction Manual supplied with the equipment. Note Read the instruction manual carefully before use. Note If you wish to view specific information in detail, see the online version of this manual. -
Page 6: Safety Messages
The machine must be disconnected from the electrical power supply prior to any service. Wait 5 minutes until residual potential on the capacitors is discharged. Struers equipment must only be used in connection with and as described in the Instruction Manual supplied with the equipment. -
Page 7: Safety Messages In This Manual

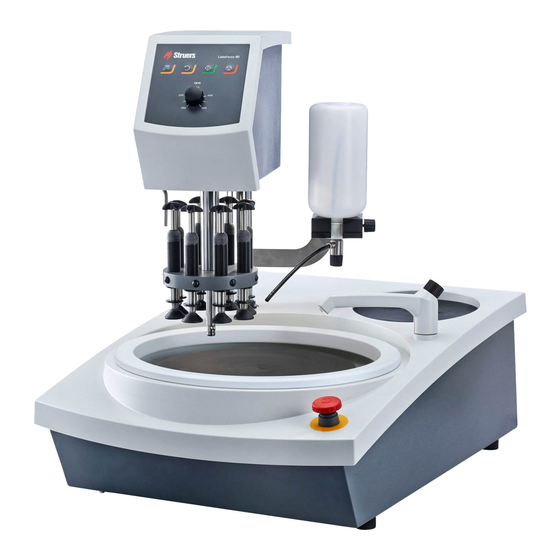

Getting started Device description LaboForce-Mi is a control panel/specimen mover unit which can be mounted on the following machines for semi-automatic mineralographic preparation (grinding/polishing): LaboPol-30 and LaboPol-60. The operator selects the grinding/polishing surface and the cooling fluid/abrasive suspension to be applied. -
Page 8: Laboforce-Mi
The operator cleans the specimens before the next preparation step or inspection. The machine must always be used with the splash guard in place. If the emergency stop is activated, the power to all moving parts is cut. LaboForce-Mi Front view A Control panel... -
Page 9: Transport And Storage
Insufficient packaging could cause damage to the unit and will void the warranty. Contact Struers Service. • Struers recommends that all original packaging and fittings are kept for future use. Long-term storage or shipping For instructions on how to prepare the unit for long-term storage or shipping, see the specific machine manual. -
Page 10: Checking The Packing List
The packing box contains the following items: Pcs. Description LaboForce-Mi Spacing disc Instruction Manual set Installation - LaboForce-Mi Note This device must be mounted securely on the machine. Note Do not use the speed control knob on the control panel to move the specimen mover. Procedure Install the specimen mover in the connection hole of the machine. -
Page 11: The Specimen Mover
F Specimen mover plate 5.4.1 Inserting a specimen mover plate Insert a specimen mover plate and push until the pin is aligned in the groove. Make sure that the specimen mover plate is securely mounted. A Pin B Groove LaboForce-Mi... -
Page 12: Adjusting The Height Of The Specimen Mover Plate
Tighten the 2 fastening screws firmly. The specimen mover will now remain in position. Cover the holes with the two caps. Allen key and cover caps are included in the package. Noise and vibration levels For information about noise and vibration levels, see the specific machine manual. LaboForce-Mi... -
Page 13: Operating The Device
Maintenance and service Technical questions and spare parts If you have technical questions or when you order spare parts, state serial number and voltage/frequency. The serial number and the voltage are stated on the type plate of the machine. LaboForce-Mi... -
Page 14: General Cleaning
Struers.com. Service and repair Struers recommends that a regular service check be carried out yearly or after every 1500 hours of use. When the machine is started up, the display shows information about total operation time and the machines service information. -
Page 15: Disposal
8 Troubleshooting Service check Struers offers a range of comprehensive maintenance plans to suit the requirements of our customers. This range of services is called ServiceGuard. The maintenance plans include equipment inspection, replacement of wear parts, adjustments/calibration for optimal operation, and a final functional test. - Page 16 Storage and transport Surrounding 0 – 60°C/32 – 140°F conditions temperature Humidity < 85 % RH non-condensing Power supply LaboForce-Mi is connected directly to LaboPol Dimensions and weight Width 18.3 cm/7.2” Depth 43.5 cm/17.1” Height 44.8 cm/17.6” (measured from the...
- Page 17 9 Technical data 16353050 B LaboForce-Mi...
- Page 18 9 Technical data 16353100 D LaboForce-Mi...
- Page 19 Responsibility of the manufacturer The following restrictions should be observed, as violation of the restrictions may cause cancellation of Struers legal obligations. The manufacturer assumes no responsibility for errors in the text and/or illustrations in this manual. The information in this manual is subject to change without notice. The manual may mention accessories or parts not included in the supplied version of the equipment.
- Page 20 Based on: 16387901 A Struers ApS Pederstrupvej 84 DK-2750 Ballerup, Denmark Declaration of Conformity EU / UE / EL / EC / EE / ES / EÚ / AB Manufacturer / Производител / Výrobce / Producent / Hersteller / Κατασκευαστής / Fabricante / Tootja / Valmistaja / Fabricant / Proizvođač / Gyártó / Fabbricante / Gamintojas / Ražotājs / Fabrikant / Producent / Fabricante / Producătorul / Výrobca / Proizvajalec / Tillverkare / 販売...
