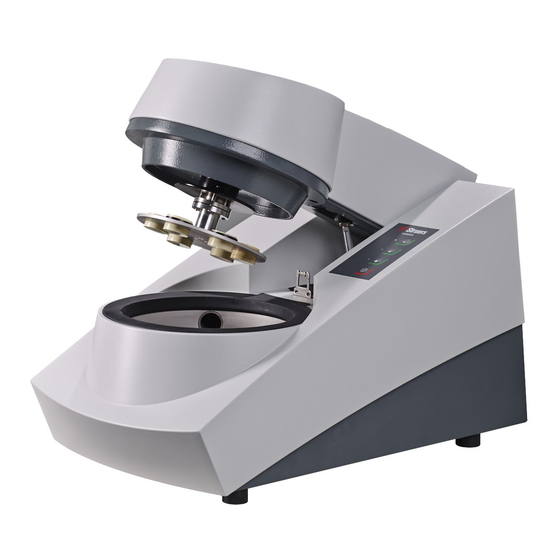

Struers Lavamin Pre-Installation Checklist
Hide thumbs
Also See for Lavamin:
- Instruction manual (40 pages) ,
- Instruction manual (46 pages) ,
- Instruction manual (50 pages)
Related Manuals for Struers Lavamin
Summary of Contents for Struers Lavamin
- Page 1 Lavamin Pre-installation checklist Doc. no.: 16237037_B_en-us Date of release: 2023.03.23...
- Page 2 Copyright The contents of this manual are the property of Struers ApS. Reproduction of any part of this manual without the written permission of Struers ApS is not allowed. All rights reserved. © Struers ApS 2023.03.23. Lavamin...
-
Page 3: Installation Requirements
Location CRUSHING HAZARD Take care of your fingers when handling the machine. Wear safety shoes when handling heavy machinery. • Make sure that the following facilities are available: – Power supply – Water supply – Compressed air supply Lavamin... - Page 4 To facilitate easy access for service technicians, allow sufficient space around the machine. Illumination Illumination: Make sure that the machine is adequately lit up. A minimum of 300 Lumen is recommended to illuminate the controls and other work areas. Ambient conditions Operating environment Surrounding temperature 5-40°C (40-105°F) Humidity 35-85% RH non-condensing Lavamin...
- Page 5 4 Dimensions Dimensions Width: 317 mm (12.5") Depth: 629 mm (24.8") Height: • Closed: 325 mm (12.1") • Open: 488 mm (19.2") Weight: 17 kg (37.5 lbs) Front view X: 317 mm (35") Z: 325 mm (12.8") Lavamin...
-
Page 6: Transport And Storage
• Package the unit securely before transportation. Insufficient packaging could cause damage to the unit and will void the warranty. Contact Struers Service. • We recommend that you use the original packaging and fittings. -
Page 7: Unpack The Machine
If the machine is not to be used for a longer period of time, wrap the machine in plastic along with silica gel. Unpack the machine CRUSHING HAZARD Take care of your fingers when handling the machine. Wear safety shoes when handling heavy machinery. Lavamin... -
Page 8: Safety Specifications
Wear safety shoes when handling heavy machinery. Note Always lift the machine from beneath. Weight Lavamin 17 kg (37.5 lbs) At the new location Place the machine on a rigid, stable workbench with a horizontal surface and an adequate height. -
Page 9: Power Supply
Single-phase supply The 2-pin plug (European Schuko) is for use on single-phase electrical power connections. The leads must be connected as follows: Yellow/Green Earth (ground) Black/Brown Line (live) Blue Neutral Lavamin... - Page 10 Connect the other end of the cable to the electrical power supply socket. Note In countries with a 100 - 120 V electrical power supply, you must change the setting of the equipment. – 115 V: 100-120 V/50/60 Hz – 230 V: 200-240 V/50/60 Hz (factory setting) Lavamin...
-
Page 11: Water Supply
Leave the water to run for a few minutes to flush any debris from the pipe before connecting the machine to the water supply. Hint The machine can be connected to the same water supply as e.g. Tegramin by using the Y-connector supplied. Lavamin... -
Page 12: Compressed Air Supply
4.5-7 bar (65-101 psi) Air consumption, approx. 200 L/min (53 gpm) Air quality Class-3, as specified in ISO 8573-1 To connect compressed air Mount the quick coupling on the compressed air hose and secure it with the hose clamp supplied. Lavamin... - Page 13 12 Compressed air supply Connect the air inlet hose to the quick coupling and fit the other end into the compressed air inlet on the machine. Lavamin...
- Page 15 Tõlked leiate aadressilt Katso käännökset osoitteesta Pour les traductions, voir Za prijevode idite A fordítások itt érhetők el Per le traduzioni www.struers.com/Library consultare 翻 訳 については、 Vertimai patalpinti Tulkojumus skatīt Voor vertalingen For oversettelser Aby znaleźć tłumaczenia, sprawdź Consulte as traduções...
