- Page 1 LaboForce-Mi Instruction Manual Manual No.: .01.2011 Date of Release Gebrauchsanweisung Mode d’emploi Spare Parts and Diagrams...
- Page 2 LaboForce-Mi Instruction Manual...
- Page 3 The manual may mention accessories or parts not included in the present version of the equipment. Original instructions. The contents of this manual is the property of Struers. Reproduction of any part of this manual without the written permission of Struers is not allowed.
- Page 4 The equipment should only be used for its intended purpose and as detailed in the Instruction Manual. The equipment is designed for use with consumables supplied by Struers. If subjected to misuse, improper installation, alteration, neglect, accident or improper repair, Struers will accept no responsibility for damage(s) to the user or the equipment.
- Page 5 LaboForce-Mi Instruction Manual Disposal Equipment marked with a WEEE symbol contain electrical and electronic components and must not be disposed of as general waste. Please contact your local authorities for information on the correct method of disposal in accordance with national legislation.
-
Page 6: Table Of Contents
Table of Contents Page 1. Getting Started Checking the Contents ............... 2 Getting Acquainted with LaboForce-Mi ..........2 Setting up LaboForce-Mi ..............3 Electrical Connection ................. 3 Mounting the Drip Lubricator (accessory) .......... 3 Changing the Lubricator Tube ..........3 2. -
Page 7: Getting Started

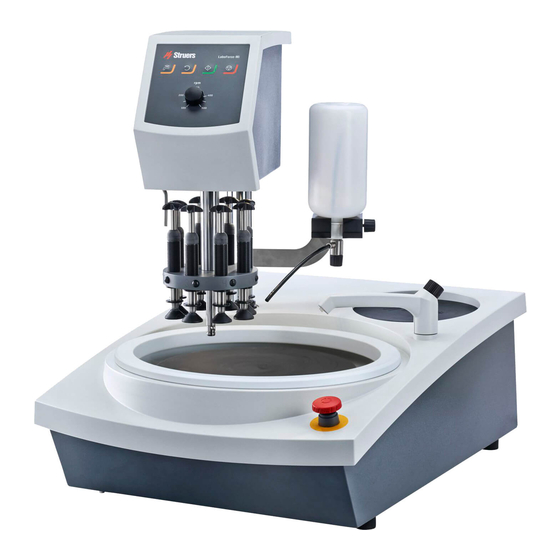

In the packing box you should find the following parts: Checking the Contents LaboForce-Mi Allen-key 6 mm for securing LaboForce-Mi on LaboPol-35 Nylon tube 4 mm dia., 300 mm long Instruction Manual Take a moment to familiarise yourself with the location and names of Getting Acquainted with the LaboForce-Mi components. -
Page 8: Setting Up Laboforce-Mi
LaboPol-35. Tighten the two screws with the enclosed allen-key. Move the handle on the left hand side of LaboForce-Mi up, to allow the head to move to the uppermost position. Mount a specimen mover plate on LaboForce-Mi. -
Page 9: Operation
2. Operation Unlock LaboForce-Mi and let it move into top position. Mounting the Turn LaboForce-Mi to the left over the edge of LaboPol-35. Specimen Mover Plate Place the specimen mover plate under the column, align the pin ... -
Page 10: Operating Laboforce-Mi
Forced Rotation of Specimens To avoid directional abrasion of the specimens during preparation LaboForce-Mi is equipped with the ability to carry out forced rotation of the specimens. Simply move the angled stainless steel pin down and press it into the clips on the left hand side of LaboForce-Mi. -
Page 11: Operating The Drip Lubricator
Open the valve to clean the tube. Exchange the soap solution with clean water and repeat the above procedure. Empty the lubricator. Put the lubricator back on LaboForce-Mi and tighten the finger screw. Refill with lubricant and replace the lid. ... -
Page 12: Maintenance
Open the valve to clean the tube. Exchange the soap solution with water and repeat the above procedure. Empty the lubricator. Put the lubricator back on LaboForce-Mi and tighten the finger screw. Refill with lubricant and replace the lid. ... -
Page 13: Reference Guide
LaboForce-Mi Instruction Manual Reference Guide Table of Contents Page 1. Accessories ................9 2. Trouble-Shooting ..............10 4. Technical Data ..............11... - Page 14 8 x specimens 20 x 30 mm 05236905 Drip lubricator Additional drip lubricator for quick changing between 05216908 different lubricant types Remember... Struers offers a comprehensive range of consumables for lapping, grinding and polishing. Please ask for separate leaflets.
- Page 15 switch is pressed. - LaboForce-Mi is not connected to - Connect the plug from LaboPol-35 LaboForce-Mi to the female plug at the back of LaboPol-35 The force adjustment...
- Page 16 LaboForce-Mi Instruction Manual 4. Technical Data Subject Specifications Safety Please refer to the Declaration of Conformity standards Noise level Approx. 45 dB(A) at idle running at a distance of 1.0 m/39.4” from the machine Surrounding 5-40°C / 41-104°F temperature Humidity...
- Page 17 The equipment complies with the American standards: Supplementary UL508. Information The above has been declared according to the global method, module A Date: 13.02.2015 Christian Skjold Heyde, Vice President, R & D and Production, Struers A/S Overensstemmelseserklæring Dansk Struers A/S Fabrikant, Pederstrupvej 84...
- Page 18 Pederstrupvej 84 DK-2750 Ballerup Denmark...
- Page 19 Sample Mover Carrousel, complete ........15230040A Pressure Foot assembly ............ 15230050A Lubricator, complete ............15210051E Diagrams Circuit diagrams, LaboForce-Mi ........... 16123100 Wiring Diagrams ..............15233450B Some of the drawings may contain position numbers not used in connection with this manual.
-
Page 20: Spare Parts And Diagrams
To check the availability of other replacement parts, please contact your local Struers Service Technician. It may help identify the part by referral to its position number on the assembly drawings included in this manual. - Page 21 LaboForce-Mi Spare Parts and Diagrams Drawing Pos. Spare Parts List, LaboForce-Mi Part No. 15230040 Sample Mover Carrousel, complete 20-30 Locking prawl & spring R5230290 Pressure foot, complete 15230050 Star Wheel (8 pcs) + Omnifit 50M R5230230 15230050 Pressure Foot, complete O-ring ø5.00-1.00 70 NBR (32 pcs)
- Page 22 : s i o i t t i n t i n : l a : e l : . t o i t e l l...
-
Page 26: Struers A/S Pederstrupvej
XPE2 XPE1 Strap Bottom Frame To LaboPol Control Connector 3-pin round male connector Struers A/S Pederstrupvej 84 DK-2750 Ballerup Denmark telephone: +45 44 600 800 LaboForce-Mi, Circuit Diagram Size CAGE Code DWG NO 16123100 Scale Sheet Friday, July 16, 2010... - Page 27 PdM-Force-20/ LaboForce-Mi...
- Page 28 Pederstrupvej 84 DK-2750 Ballerup Denmark...
