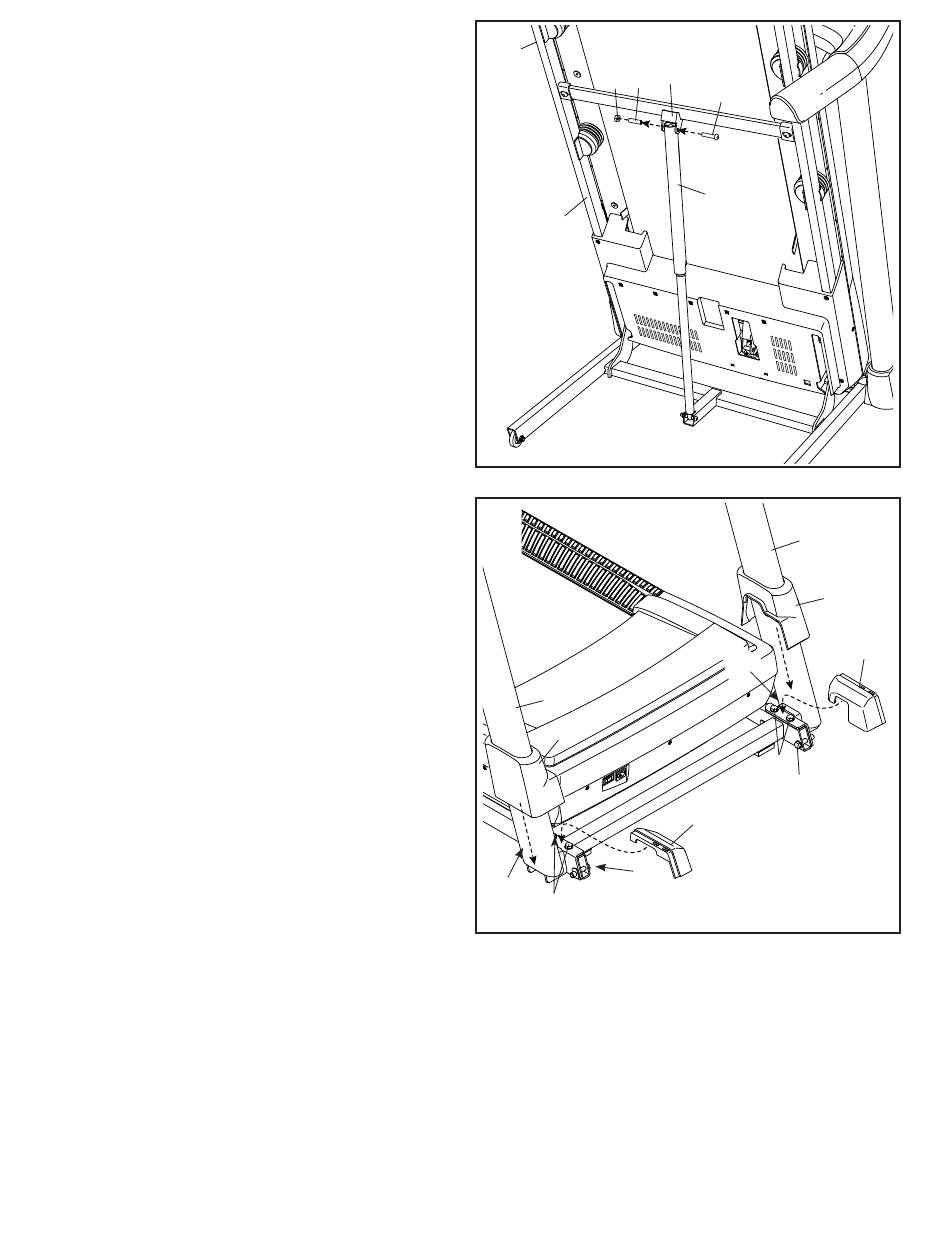

14. Remove the 5/16" Nut (39) and the 5/16" x 2 1/4"
Bolt (117) from the bracket on the Latch Crossbar
(48).
Align the upper end of the Storage Latch (84)
with the bracket on the Latch Crossbar (48), and
insert the 5/16" x 2 1/4" Bolt (117) through the
bracket and the Storage Latch. This will push a
spacer (L) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (39) onto the
5/16" x 2 1/4" Bolt (117). Do not overtighten the
Nut; the Storage Latch (84) must be able to
pivot.
Then, lower the Frame (60) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 24).
15. Firmly tighten the four 3/8" x 2 3/8" Screws
(3), the two 3/8" x 1 1/4" Screws (1), and the
two 3/8" x 1 3/4" Screws (2).
Next, set the Left Inner Base Cover (95) onto the
lower end of the Left Upright (85). Then, slide
the Left Base Cover (93) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (94) onto
the lower end of the Right Upright (86). Then,
slide the Right Base Cover (92) downward and
press it onto the Right Inner Base Cover.
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see pages 26 and 27). Note: Extra hardware
may be included.
14
39 L
60
15
86
92
2
1
3
14
48
117
84
85
93
1
3
2
94
95
