proform.com

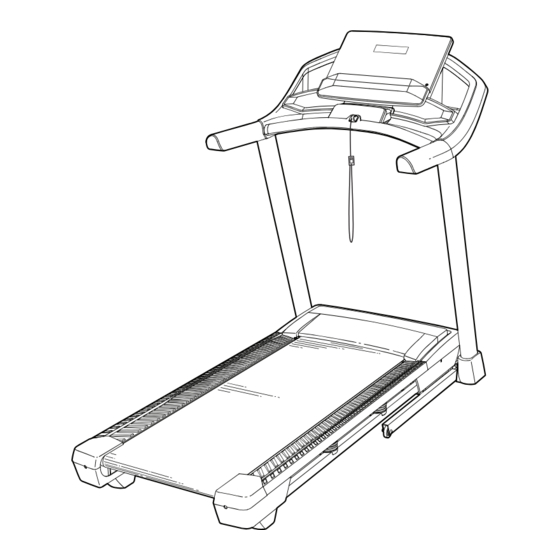

Model No. PFTL59722.0
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
REGISTER YOUR
PRODUCT
To register your product and
activate your warranty today,
go to my.proform.com.
MEMBER CARE
For service at any time, go to
support.proform.com.
Or call 1-833-680-IFIT
(1-833-680-4348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFTL59722.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-Form PFTL59722.0

Summary of Contents for Pro-Form PFTL59722.0

  • Page 1 Model No. PFTL59722.0 USER’S MANUAL Serial No. Write the serial number in the space above for reference. Serial Number Decal REGISTER YOUR PRODUCT To register your product and activate your warranty today, go to my.proform.com. MEMBER CARE For service at any time, go to support.proform.com.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 19. Read, understand, and test the emergency able to safely lift 45 lbs. (20 kg) to move the stop procedure before using the treadmill treadmill. (see HOW TO TURN ON THE POWER on page 19). Always wear the clip while using the 26.
  • Page 5 STANDARD SERVICE PLANS...

  • Page 6: Before You Begin

    BEFORE YOU BEGIN ® Thank you for selecting the new PROFORM reading this manual, please see the front cover of this CARBON TL treadmill. The CARBON TL treadmill manual. To help us assist you, note the product model provides an impressive selection of features designed number and serial number before contacting us.

  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 8: Assembly

    ASSEMBLY 1. To use the assembly steps in this manual, first see the helpful tips below. • To hire an authorized service technician to • Left parts are marked “L” or “Left” and right parts assemble the treadmill, call 1-800-445-2480. are marked “R”...
  • Page 9 2. Make sure that the power cord is unplugged. Remove the tie securing the Upright Wire (88) to the front of the Base (97). Next, identify the Right Upright (86). Have a second person hold the Right Upright near the Base (97).
  • Page 10 4. Hold the Right Upright (86) against the Base (97). Make sure not to pinch the Upright Wire (88). Insert two 3/8" x 2 3/8" Screws (3) with two 3/8" Star Washers (11) into the top of the bracket on the Right Upright (86), and partially tighten the two Screws into the Base (97);...
  • Page 11 6. Attach a Handrail (80) to the Right Upright (86) with two 5/16" x 2 1/4" Screws (7) and two 5/16" Star Washers (12) in the location shown; start both Screws, and then tighten them. Do not pinch the Upright Wire (88), and make sure that the wire is on the indicated side of the Right Upright.
  • Page 12 8. With the help of a second person, hold the con- sole assembly (F) near the Right Upright (86). Next, insert the Upright Wire (88) through the indicated looped tie (G). Connect the Upright Wire (88) to the wire (H) from the console assembly (F).
  • Page 13 10. IMPORTANT: To avoid damaging the Handrail Crossbar (87), do not use power tools and do not overtighten the #10 x 3/4" Screws (6). Attach the Handrail Crossbar (87) to the Handrails (80) with four #10 x 3/4" Screws (6) and four 1/4"...
  • Page 14 12. Note: If the treadmill is assembled on a smooth surface, it may roll forward during this step. Raise the Frame (60) to the upright position. IMPORTANT: Do not raise the Frame past the vertical position. Have a second person hold the Frame until step 14 is completed.
  • Page 15 14. Remove the 5/16" Nut (39) and the 5/16" x 2 1/4" Bolt (48) from the bracket on the Latch Crossbar (109). 39 L Align the upper end of the Storage Latch (84) with the bracket on the Latch Crossbar (109), and insert the 5/16"...
  • Page 16 16. IMPORTANT: You must activate your Console (105) to begin using its exclusive features. First, plug in the power cord (see page 17) and turn on the power (see page 19). Then, using your smartphone or tablet, go to iFIT.com/activate and follow the instructions to activate the Console (105).

  • Page 17: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO CONNECT THE POWER CORD capable of carrying 15 or more amps. To avoid overloading the circuit, do not plug other electrical Use a Surge Suppressor devices, except for low-power devices such as cell phone chargers, into the surge suppressor or into Your treadmill, like other electronic equipment, can be an outlet on the same circuit.
  • Page 18 CONSOLE DIAGRAM FEATURES OF THE CONSOLE You can also listen to your favorite workout music or audio books with the console’s sound system while you IMPORTANT: To activate your console and begin exercise. using its exclusive features, see assembly step 16 on page 16.
  • Page 19 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before you turn on the power. If you do See HOW TO TURN ON THE POWER at the left.
  • Page 20 5. Follow your progress with the display. To manually advance the scan cycle, press the Scan button repeatedly. The display can show the following workout information: To turn off the scan mode, press the Display button; the scan indicator and the word SCAN will Calories (CALS)—The approximate number of turn off.
  • Page 21 HOW TO USE AN IFIT WORKOUT 4. Select an iFIT workout. The console offers access to a large and varied library In the iFIT app, touch the buttons at the bottom of of iFIT workouts when you download the iFIT app to the screen to select either the main menu (Home your smart device and connect it to the console.
  • Page 22 To pause the workout, simply touch the screen or HOW TO CONNECT A HEART RATE MONITOR TO press the Stop button. To continue the workout, THE CONSOLE press the play icon on the screen, or press the Start button. The console is compatible with Bluetooth Smart heart rate monitors.
  • Page 23 THE SETTINGS MODE Total Time—The word TIME will appear in the display. The display will show the total number of 1. Select the settings mode. hours that the treadmill has been used. To select the settings mode, press the gear button (P). The first set- tings screen will appear in the display.
  • Page 24 THE OPTIONAL TABLET HOLDER THE OPTIONAL HEART RATE MONITOR The optional tablet Whether your holder (Q) will hold goal is to your tablet securely burn fat or to in place and enable strengthen your you to use your tablet cardiovascular while you exercise.

  • Page 25: Fcc Information

    FCC INFORMATION This console has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 26: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to zero before you fold the treadmill. Then, remove left.

  • Page 27: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes Regular maintenance is important for optimal per- as shown (A), the switch has tripped. To reset the formance and to reduce wear. Inspect and properly power switch, wait for five minutes and then press tighten all parts each time the treadmill is used.
  • Page 28 SYMPTOM: The walking belt slows when walked on SYMPTOM: The walking belt is off-center or slips when walked on a. Use only a surge suppressor that meets all of the specifi cations described on page 17. a. If the walking belt is off-center, fi rst remove the key and UNPLUG THE POWER CORD.

  • Page 29: Exercise Guidelines

    EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.

  • Page 30: Part List

    PART LIST Model No. PFTL59722.0 R1021A Key No. Qty. Description Key No. Qty. Description 3/8" x 1 1/4" Screw Rubber Cushion 3/8" x 1 3/4" Screw 3/8" Pin 3/8" x 2 3/8" Screw Drive Roller/Pulley #8 x 3/4" Screw Controller Clamp #8 x 1/2"...
  • Page 31 Key No. Qty. Description Key No. Qty. Description Console Frame Console Cable Tie Console Ground Wire Wheel Console Clamp 9/32" Plastic Bushing Key/Clip Latch Crossbar Console – User’s Manual Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.

  • Page 32: Exploded Drawing

    EXPLODED DRAWING A Model No. PFTL59722.0 R1021A...
  • Page 33 EXPLODED DRAWING B Model No. PFTL59722.0 R1021A...
  • Page 34 EXPLODED DRAWING C Model No. PFTL59722.0 R1021A 2 11 11 1...
  • Page 35 EXPLODED DRAWING D Model No. PFTL59722.0 R1021A 103 81...

  • Page 36: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
