4.2

Assembly

WARNING
Risk of electrical shock and fire if mounted in a damp environ-
ment!
Only mount the controller in an area where the ingress protection is

sufficient (see chapter 15 "Technical data").

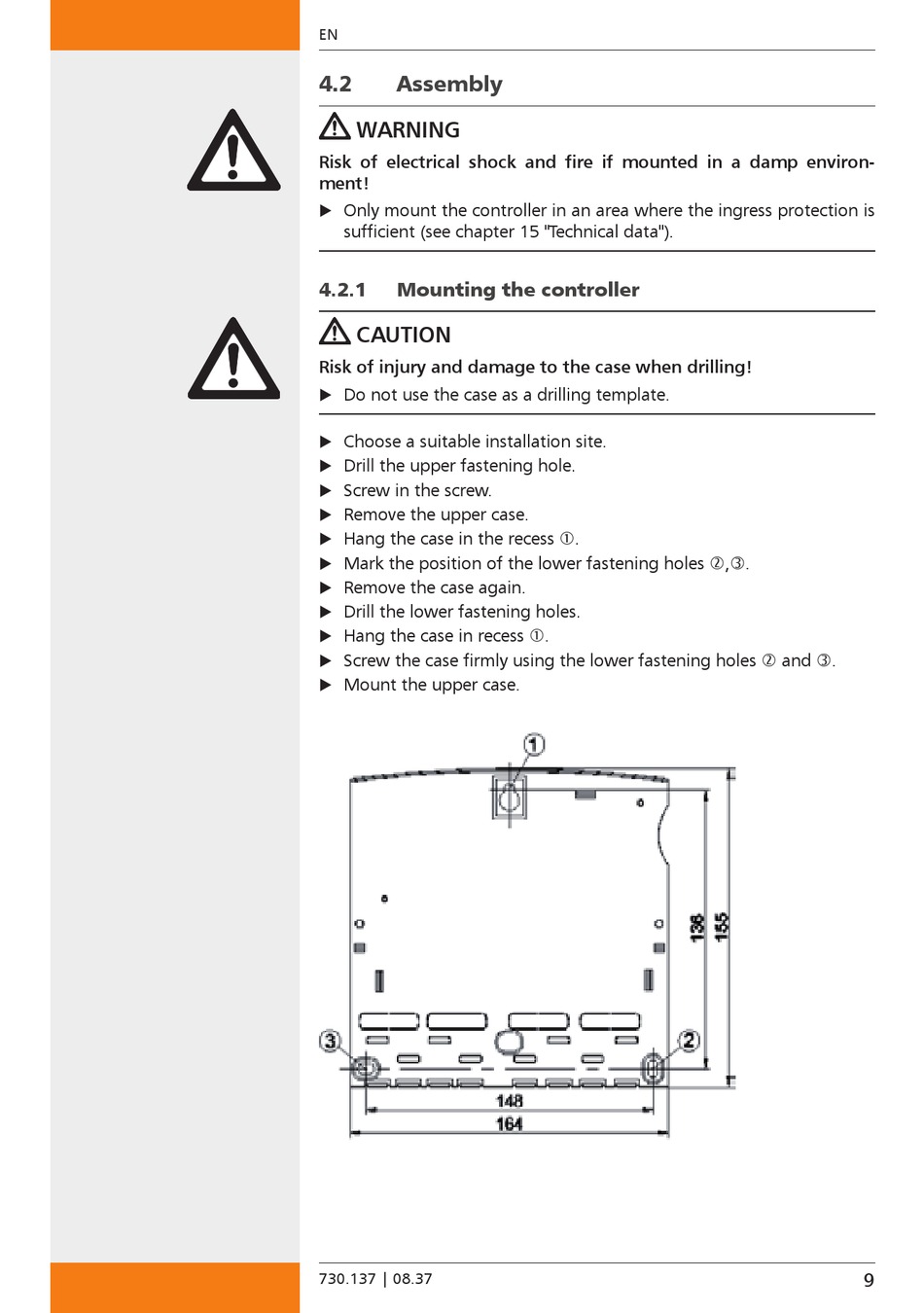

4.2.1 Mounting the controller
CAUTION
Risk of injury and damage to the case when drilling!
Do not use the case as a drilling template.

Choose a suitable installation site.

Drill the upper fastening hole.

Screw in the screw.

Remove the upper case.

Hang the case in the recess .

Mark the position of the lower fastening holes ‚,ƒ.

Remove the case again.

Drill the lower fastening holes.

Hang the case in recess .

Screw the case firmly using the lower fastening holes ‚ and ƒ.

Mount the upper case.

