Terminal Diagram - Dimplex SOLCU3 Installation And Operating Instructions Manual

4.5

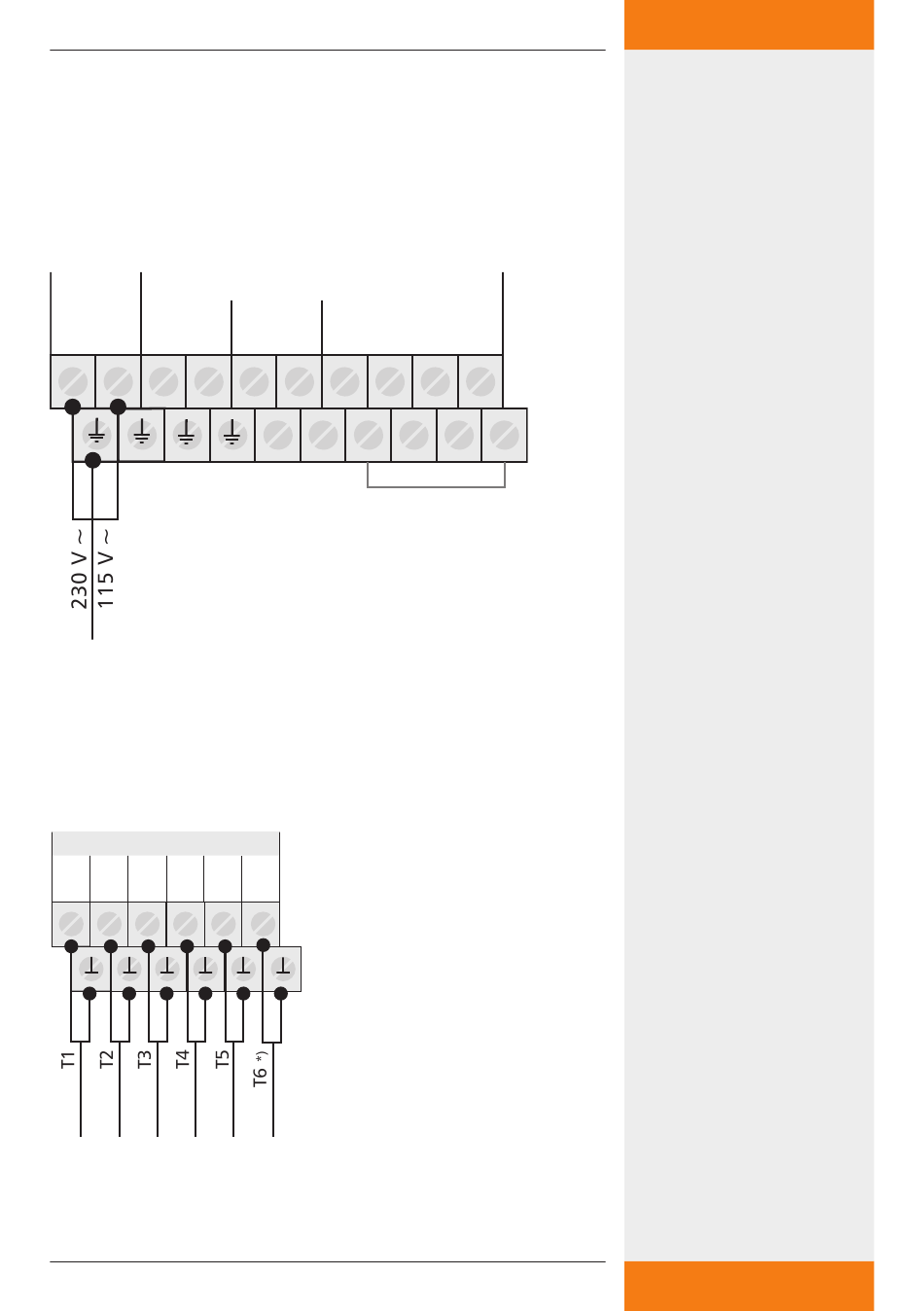

Terminal diagram

4.5.1 Power connection
• Please refer to the type plate on the case to determine the type of
power supply required
• The protective conductor must be connected
• Cables conforming to at least type H05 VV-... (NYM...) must be used
G1
N L N R1
4.5.2 Connection of the inputs
• Inputs 1 - 5: for Pt1000 temperature sensor
• Input 6: for Pt1000 temperature sensor or pulse generator for
recording volume flow (measuring heat quantities)
E1 E2 E3 E4 E5
1 2 3 4 5
1
N R2 N n.c n.c. R3
n.c. L L n.c. n.c. X
E6
6
EN
D1
730.137 | 08.37
G1: grid
D1: wire bridge
E1: input 1
E: input
E3: input 3
E4: input 4
E5: input 5
E6: input 6
T6 *): T6 or pulse generator
