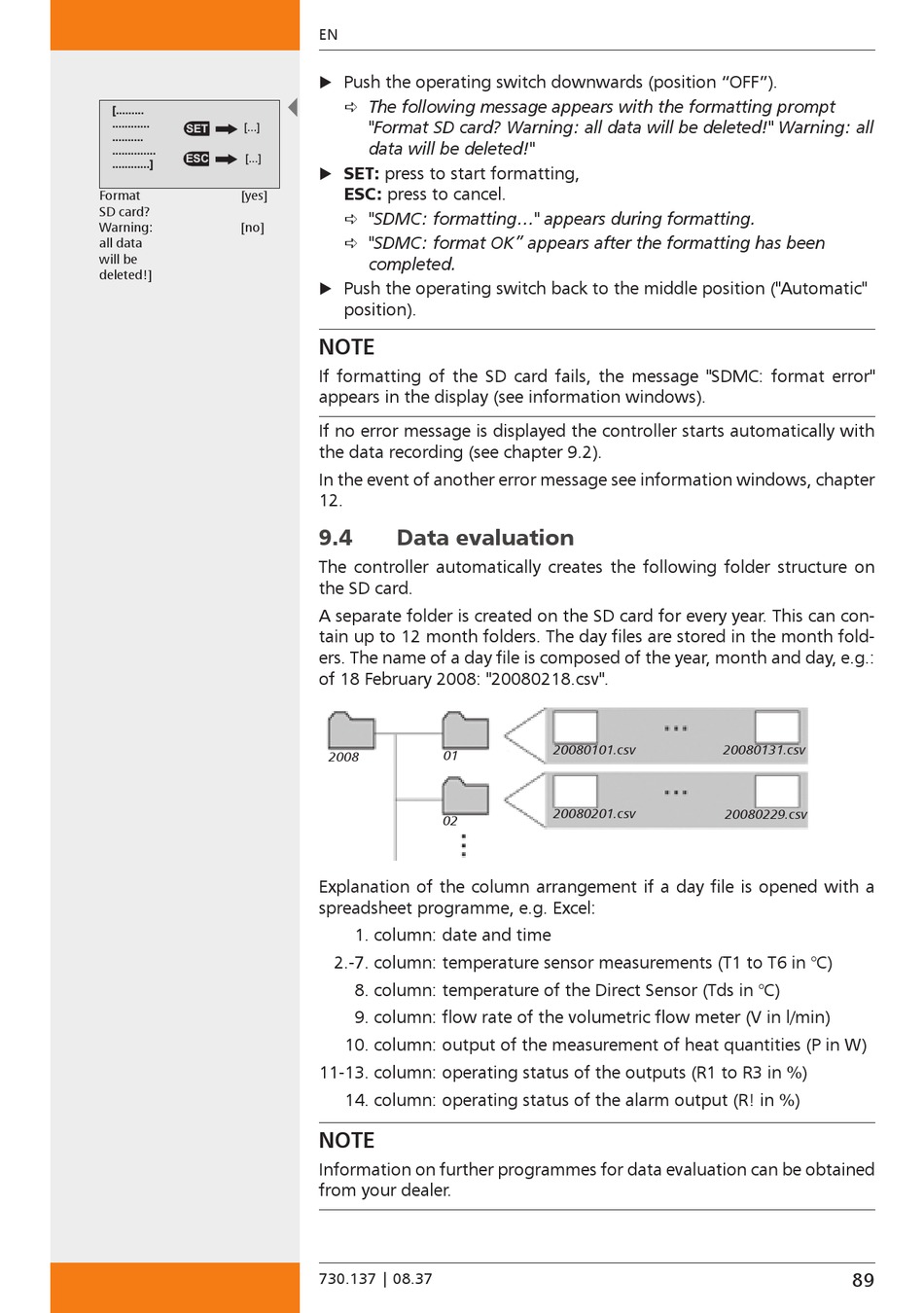

SET
..........
..............
ESC [...]
............]
Format [yes]
SD card?
Warning: [no]
all data
will be
deleted!]
EN
Push the operating switch downwards (position "OFF").


The following message appears with the formatting prompt

"Format SD card? Warning: all data will be deleted!" Warning: all
data will be deleted!"
SET: press to start formatting,

ESC: press to cancel.
"SDMC: formatting..." appears during formatting.

"SDMC: format OK" appears after the formatting has been

completed.
Push the operating switch back to the middle position ("Automatic"

position).
NOTE
If formatting of the SD card fails, the message "SDMC: format error"
appears in the display (see information windows).
If no error message is displayed the controller starts automatically with
the data recording (see chapter 9.).
In the event of another error message see information windows, chapter
1.
9.4

Data evaluation

The controller automatically creates the following folder structure on
the SD card.
A separate folder is created on the SD card for every year. This can con-
tain up to 1 month folders. The day files are stored in the month fold-
ers. The name of a day file is composed of the year, month and day, e.g.:
of 18 February 008: "008018.csv".
01
2008
02
Explanation of the column arrangement if a day file is opened with a
spreadsheet programme, e.g. Excel:
1. column: date and time
.-7. column: temperature sensor measurements (T1 to T6 in °C)
8. column: temperature of the Direct Sensor (Tds in °C)
9. column: flow rate of the volumetric flow meter (V in l/min)
10. column: output of the measurement of heat quantities (P in W)
11-13. column: operating status of the outputs (R1 to R3 in %)
14. column: operating status of the alarm output (R! in %)
NOTE
Information on further programmes for data evaluation can be obtained
from your dealer.
