Display: .7.5 Display: .7.5
Display: .7.6 Display: .7.6
EN

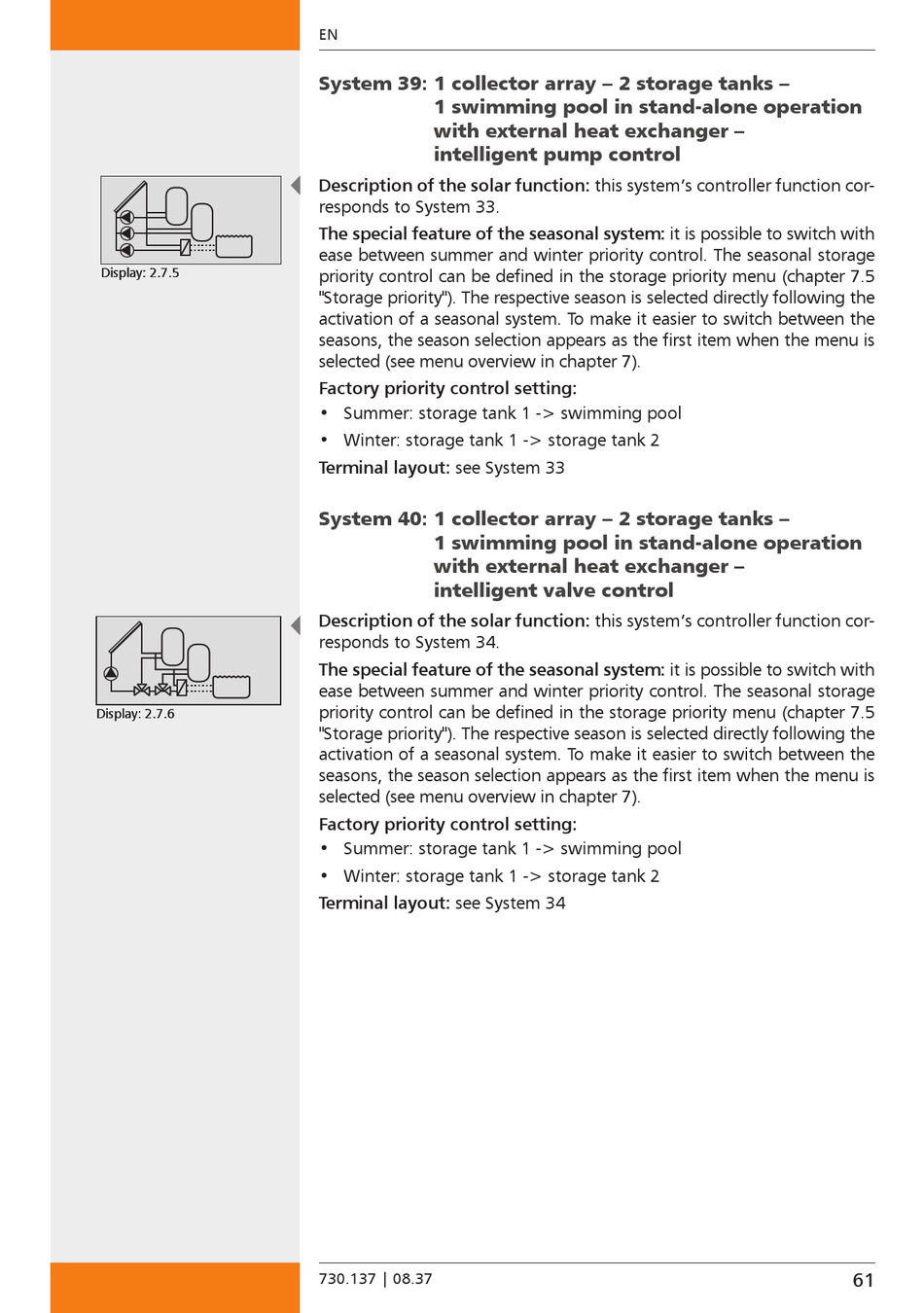

System 39: 1 collector array – 2 storage tanks –
1 swimming pool in stand-alone operation
with external heat exchanger –
intelligent pump control
 
Description of the solar function: this system's controller function cor-
responds to System 33.
The special feature of the seasonal system: it is possible to switch with
ease between summer and winter priority control. The seasonal storage
priority control can be defined in the storage priority menu (chapter 7.5
"Storage priority"). The respective season is selected directly following the
activation of a seasonal system. To make it easier to switch between the
seasons, the season selection appears as the first item when the menu is
selected (see menu overview in chapter 7).
Factory priority control setting:
• Summer: storage tank 1 -> swimming pool
• Winter: storage tank 1 -> storage tank
Terminal layout: see System 33
System 40: 1 collector array – 2 storage tanks –
1 swimming pool in stand-alone operation
with external heat exchanger –
intelligent valve control
Description of the solar function: this system's controller function cor-
 
responds to System 34.
The special feature of the seasonal system: it is possible to switch with
ease between summer and winter priority control. The seasonal storage
priority control can be defined in the storage priority menu (chapter 7.5
"Storage priority"). The respective season is selected directly following the
activation of a seasonal system. To make it easier to switch between the
seasons, the season selection appears as the first item when the menu is
selected (see menu overview in chapter 7).
Factory priority control setting:
• Summer: storage tank 1 -> swimming pool
• Winter: storage tank 1 -> storage tank
Terminal layout: see System 34
