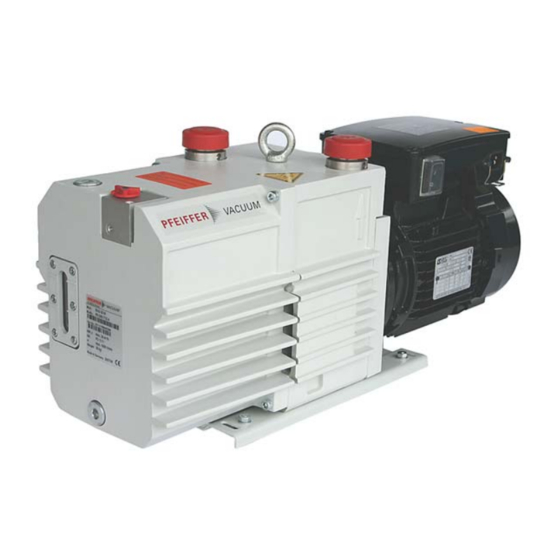

Rotary vane pump
Hide thumbs Also See for UNO 30 M:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS
EN
Translation of the original instructions
UNO 30 M
Rotary Vane Pump

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNO 30 M and is the answer not in the manual?

Questions and answers

Related Manuals for Pfeiffer Vacuum UNO 30 M

Summary of Contents for Pfeiffer Vacuum UNO 30 M

  • Page 1 OPERATING INSTRUCTIONS Translation of the original instructions UNO 30 M Rotary Vane Pump...

  • Page 2: Table Of Contents

    Table of contents Table of contents About this manual ..........3 1.1 Validity.

  • Page 3: About This Manual

    About this manual Validity This operating manual is for customers of Pfeiffer Vacuum. It describes the functioning of the designated product and provides the most important information for safe use of the unit. The description follows applicable EU guidelines. All information provided in this operating manual refers to the current state of the product's development.
  • Page 4 About this manual Pictographs Prohibition of an action to avoid any risk of accidents, the disregarding of which may result in serious accidents Warning of a displayed source of danger in connection with operation of the unit or equipment Command to perform an action or task associated with a source of dan- ger, the disregarding of which may result in serious accidents Important information about the product or this document Instructions in the...

  • Page 5: Safety

    Installation and operation of accessories Pfeiffer Vacuum pumps can be equipped with a series of adapted accessories. The in- stallation, operation and maintenance of connected devices are described in detail in the operating instructions of the individual components.

  • Page 6: Proper Use

    ● use of the vacuum pump to generate pressure ● pumping of liquids ● the use of operating fluids not specified by Pfeiffer Vacuum ● connection to pumps or units which are not suitable for this purpose according to their operating instructions ●...

  • Page 7: Transport And Storage

    Transport and storage Transport and storage Transport Transport instructions  Remove the locking cap from the vacuum and exhaust flange immediately before con- necting! – Check the protective strainer, paying attention to the O-ring.  Use only the handle or the crane eye on the top side of the pump to lift the pump. –...

  • Page 8: Product Description

    Product description Product description Product identification To correctly identify the product when communicating with Pfeiffer Vacuum, always have the information from the rating plate available. ● Pump model and model number ● Serial number ● Type and amount of operating fluid ●...

  • Page 9: Function

    Product description Function The vacuum pump UNO 30 M is a single stage rotary vane pump and is used primarily for rough and medium vacuum applications. The pump is fitted with a hydraulically con- trolled vacuum safety valve which, when the pump is at a stillstand, closes the vacuum chamber vacuum tight and at the same time vents the pump.

  • Page 10: Installation

    Installation Installation Setting up the pump Installation location Observe the following requirements when setting up the pump: ● Consider the load-bearing capacity of the installation site. ● Maximum installation altitude 2000 m (above mean sea level) ● Permissible ambient temperature: +15 ... 40°C ●...

  • Page 11: Connecting The Exhaust Side

    Installation Connecting the exhaust side CAUTION High pressure in the exhaust line! Danger of damage to the seals and danger of the pump bursting.  Observe the maximum permissible pressure of 1500 hPa (absolute), activate shut- off valves in such a way that they open before or at the same time as the pump is started.
  • Page 12 Installation NOTICE Excess voltage! Danger of destroying the motor.  Power connections must comply with local regulations. Voltage and frequency infor- mation given on the motor rating plate must correspond to the mains voltage and fre- quency values.  To protect the motor and supply cable in case of malfunction, mains fuse protection must be implemented.
  • Page 13 Installation Rocker switch in the terminal box for changing the voltage range Switch position: Voltage range: 200 ... 230 V/50 Hz 100 ... 110 V/50 Hz 200 ... 240 V/60 Hz 100 ... 120 V/60 Hz Fuse protection  To protect the motor in case of malfunction, carry out fuse protection in accordance with the regional regulations.
  • Page 14 Installation Inspection of the direction of rotation For pumps with three-phase motors, it is necessary to check the direction of rotation! CAUTION Operating fluids may leak out! If the direction of rotation is incorrect, there is a danger that operating fluids may leak at the vacuum flange.

  • Page 15: Filling Up The Operating Fluid

    NOTICE Use approved operating fluids only! The use of operating fluids that have not been approved by Pfeiffer Vacuum shall result in a limited warranty. In such cases, it is not possible to guarantee that product-specific performance data will be achieved.

  • Page 16: Operations Monitoring (Option)

    Installation Operations monitoring (Option) For operations monitoring a pressure switch can be installed on the side of the support. In case of a malfunction, e. g. pressure drop or when the pump is at rest, the contact of the pressure switch opens. The signal can be used to control external valves. Switching voltage: 5 ...

  • Page 17: Operation

    Operation Operation Before switching on the pump  Check the operating fluid level in the sight glass.  Compare the voltage and frequency information on the rating plate with the mains volt- age and frequency values.  Check that the exhaust connection allows free flow (max. permissible pressure 1500 hPa absolute).

  • Page 18: Pumping Condensable Vapours

    Operation Pumping condensable vapours Should the process gases contain condensable gases, the rotary vane pump must be operated with gas ballast (i.e. with an open gas ballast valve). NOTICE Bad final vacuum and damage to the pump! Danger of condensation and corrosion due to exceeding the water vapour compatibility during operation without gas ballast or in case of insufficient supply of flushing gas.

  • Page 19: Topping Up The Operating Fluid

    Operation 45.1 Fig. 12: Gas ballast valve with flushing gas connection  Unscrew purge orifice 45 from gas ballast valve 42 and insert elsewhere in the flush- ing gas supply line for flow limitation.  Replace purge orifice 45 with an elbow union 45.1. ...

  • Page 20: Switching Off The Pump

    Operation Switching off the pump The pump can be switched off in any pressure range. Rotary vane pumps have an integrated safety valve on the intake side. If the differential pressure between the exhaust side and the intake side is  250 hPa, then the valve clos- es automatically and vents the pump when the pump is switched off.

  • Page 21: Maintenance

    Maintenance Maintenance Precautions DANGER Strong magnetic field in the vicinity of the drive system! Danger to life for persons with cardiac pacemakers when the drive system is disassem- bled.  Persons with cardiac pacemakers must not enter the area (≤ 2m) of the magnetic field.
  • Page 22 Checklist for inspec- Certain maintenance and overhaul work should only be performed by Pfeiffer Vacuum Service (PV). Pfeiffer Vacuum will be released from all warranty and liability claims if the tion, maintenance required, below listed, intervals are exceeded or maintenance or overhaul procedures and overhaul are not performed properly.

  • Page 23: Changing The Operating Fluid

    Depending on the applications, Pfeiffer Vacuum recommends determining the ex- act service life of the operating fluid during the first year of operation. The replacement interval may vary from the guide value specified by Pfeiffer Vacuum depending on the thermal and chemical loads, and the accumulation of suspended par- ticles and condensation in the operating fluid.
  • Page 24 Maintenance 198a Fig. 14: Draining the operating fluid  Screw in operating fluid drain screw 198a; pay attention to O-ring.  Screw in operating fluid filler screw 198.  Allow pump to run for a maximum of 5 seconds with the vacuum flange open. ...

  • Page 25: Changing The Kind Of Operating Fluid

    Maintenance Changing the kind of operating fluid When filling up, topping up or changing the operating fluid, always use the type of oper- ating fluid indicated on the pump type plate. If, for example, amended process conditions require the use of a different operating fluid, the fluid can be changed as follows: NOTICE Changing the type of operating fluid.

  • Page 26: Cleaning Or Changing The Silencer

     Remove the gas ballast valve housing 42 from the casing; taking care with O-ring 148.  Unscrew silencer nozzle 44 and O-ring 138; clean it and replace if necessary. Gas ballast valve housing Silencer nozzle Purge orifice (only at Uno 30 M) 138 O-ring 141 O-ring 148 O-ring 182 Cheesehead screws Fig.

  • Page 27: Decommissioning

     Replace the operating fluid.  Replace the elastomer parts, with reference to DIN 7716 and the manufacturer's specifications.  Follow the maintenance instructions and inform Pfeiffer Vacuum. Disposal Products or parts thereof (mechanical and electrical components, operating fluids, etc.) may cause environmental burden.

  • Page 28: Malfunctions

    Malfunctions Malfunctions Please note the following instructions should the pump malfunction: CAUTION Hot surface! Danger of burns if hot parts are touched. The surface temperature of the pump may rise above 105 °C in case of malfunction.  Carry out work on the pump only after it has cooled to a safe temperature. NOTICE Motor overload! Depending on the malfunction (e.g.

  • Page 29: Rectifying Malfunctions

    NOTICE Service work should be carried out by a qualified person only! Pfeiffer Vacuum is not liable for any damage to the pump resulting from work carried out improperly.  Take advantage of our service training programs; additional information at www.pfei- ffer-vacuum.com.

  • Page 30: Service

    The following steps are necessary to ensure a fast, smooth servicing process:  Download the forms "Service Request" and "Declaration on Contamination".  Fill out the "Service Request" form and send it by fax or e-mail to your Pfeiffer Vacuum service address.

  • Page 31: Spare Parts

    Parts according to the exploded spare parts view on the following page Set of seals UNO 30 M PK E30 006 -T 76, 112, 113, 138, 141, 144, 147, 148, 149, 150, 152, 153, 155, 157, 158, 162. Maintenance kit...
  • Page 32 30 183 2 x 220 198/ 37/153/36 180 3 44/138 113/ (112) 198/ 149/118 2 x 200 27 184/ 155/158 208, 4 x 192 2 x 191 4 x (218, 219) 20 208/ 186/218 Fig. 16: Exploded view UNO 30 M...
  • Page 33 Spare parts Rotor Strainer, rough 153 O-ring Hydraulic pump Gas ballast valve housing 155 O-ring Pump cylinder Silencer nozzle 156 O-ring Support plate Purge orifice 157 O-ring Bearing cover Plate spring 158 O-ring Vanes Rapid action coupling, gas 162 O-ring ballast valve Hydraulic vane 178 Allan head screw...

  • Page 34: Accessories

    PK Z60 508 KAS 25 L, condensate separator for pumping speeds up to 35 m PK Z10 033 Oil return unit from ONF 25 L to Uno 30 M, standard version PK 196 944 -T ZFO 025, zeolite trap PK Z70 006...

  • Page 35: Technical Data And Dimensions

    Technical data and dimensions 13 Technical data and dimensions 13.1 General ● Recommendations of PNEUROP committee PN5 ● ISO 21360; 2007: "Vacuum technology - Standard methods for measuring vacuum- pump performance - General description" Conversion table: pressure units mbar Torr mm Hg mbar 1 ·...

  • Page 36: Technical Data

    Cooling method, standard 13.3 Dimensions 76.5 DN 25 ISO-KF 77.5 99.5 7 (4x) Ø 113.5 112...140 ( Ø ±1 Fig. 17: UNO 30 M Pump with three phase motor Pump with single phase motor 545 mm 551 mm 212 mm 262 mm...

  • Page 37: Declaration Of Conformity

    ● Electromagnetic Compatibility 2014/30/EU ● Restriction of the use of certain Hazardous Substances 2011/65/EU The agent responsible for compiling the technical documentation is Mr. Sebastian Ober- beck, Pfeiffer Vacuum GmbH, Berliner Straße 43, 35614 Aßlar. UnoLine™ UNO 30 M Harmonised standards and national standards and specifications which have been ap-...
  • Page 38 VACUUM SOLUTIONS FROM A SINGLE SOURCE Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, technological perfection, competent advice and reliable service. COMPLETE RANGE OF PRODUCTS From a single component to complex systems: We are the only supplier of vacuum technology that provides a complete product portfolio.
