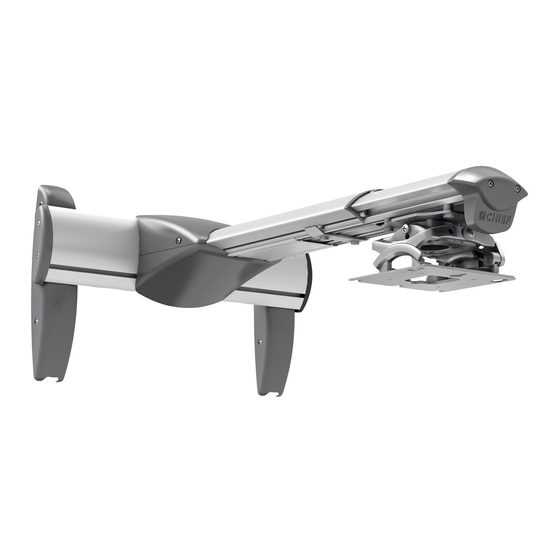

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation WM-210 WM-220 WM-240 WM-230 Dual Stud Short Throw Wall Mounts Spanish Product Description German Product Description...
-
Page 2: Installation Instructions
Chief® is a registered trademark of Milestone AV Technologies. Reinforce the structure as required before installing the All rights reserved. - Page 3 Installation Instructions WM210-220-230-240 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 4: Tools Required For Installation
(included) (included) (security) 1/2" (12.7mm) 1/2" (12.7mm) 3/8" (9.5mm) 7/32" (5.6mm) PARTS WM-230 WM-240 WM-220 WM-210 A (1) B (1) [Short throw wall mount] [wall bracket] E (2) F (10) C (2) G (4) 1/4-20 x 5/8" #8-32 x 1/2"... -
Page 5: Site Requirements
Installation Instructions WM210-220-230-240 Site Requirements WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! The figure below identifies the minimum requirements for installation of display mounts onto a steel stud structure. If the structure or its components do not meet these requirements contact the mount manufacturer for specific instructions before attempting installation. -
Page 6: Assembly And Installation
WM210-220-230-240 Installation Instructions Assembly and Installation The WM-210, 220, 230 and 240 short throw projector mounts can be mounted to concrete, concrete block, wood studs or (L) x 4 (K) x 4 steel studs. They can be mounted to studs up to 16" apart. For (M) x 4 studs more than 16"... - Page 7 Installation Instructions WM210-220-230-240 Hold metal channel on anchor (P) flat alongside plastic straps and slide channel through hole. (See Figure 6) (L) x 4 Drywall (M) x 4 Plastic Straps (P) x 4 Figure 6 Holding plastic straps on anchor (P), pull anchor away from wall until channel rests flush behind wall making sure anchor channel is positioned vertically on stud.
-
Page 8: Installation To Wall Bracket
WM210-220-230-240 Installation Instructions 11. Place wall bracket over anchors and align mounting holes in display mount with holes in anchors. (See Figure 9) 12. Insert 1/4-20 x 1-3/4" Phillips pan head screws (N) through 1/4" washer (Q), corresponding mounting hole on wall bracket and into anchor (P) and tighten until flush against mount. -
Page 9: Projector Installation
Installation Instructions WM210-220-230-240 Install two 1/4-20 x 5/8" hex head bolts (E) through holes on short throw projector arm (A) and into sliding nuts on mounting bracket (B). DO NOT TIGHTEN SCREWS AT THIS POINT! (See Figure 12) (F) x 2 (bottom view) (E) x 2 Figure 14... - Page 10 WM210-220-230-240 Installation Instructions Install four 1/4-20 x 1-1/2" Phillips pan machine screws (H) through RPM holes and into projector mounting plate. (See Figure 16) mounting plate mounting plate (G) x 4 (H) x 4 Figure 18 Install interface and projector to RPA according to RPA installation instructions.
-
Page 11: Cable Management (Optional)
Installation Instructions WM210-220-230-240 Cable Management (Optional) Remove two screws #8-32 x 1/2" Phillips pan machine screws (F) to release mount cover. (See Figure 20) Slide mount cover away from wall mount. (See Figure 20) cable clips (F) x 2 Figure 22 Thread cable up wall bracket channel and into opened cable clips. - Page 12 WM210-220-230-240 Installation Instructions • Routing Cables from Above (Step 6) Thread cables down through a surface mount cable cables (view from front) accessory (not included), then behind and into the wall Surface Mount bracket. (See Figure 24) Proceed to Step 7 Cable Accessory Route cables through cover mount, projector arm tunnel (not included)
- Page 13 Installation Instructions WM210-220-230-240 (Optional) Cables can be tied to inside of projector’s front cover using cable ties (not included). Route cables near front cover and wrap cable tie through slots on front cover and around cables. (See Figure 26) cable tie (not included) Figure 28 11.
-
Page 14: Installation Of Wall Bracket Covers
WM210-220-230-240 Installation Instructions Installation of Wall Bracket Covers Adjustments NOTE: If security screws are going to be used, use the security Bracket Width Adjustment screws (V) to install wall bracket covers. See Security Loosen two flat head cap screws on wall bracket. (See Screw Installation section for details. - Page 15 Installation Instructions WM210-220-230-240 Slide outer cover of mount (A) away from mounting bracket to expose pitch adjustment screw. (See Figure 34) pitch adjustment screw Figure 36 Slide outer cover of mount (A) back against mounting bracket. (See Figure 36) Figure 34 Reinstall two #8-32 x 1/2"...
-
Page 16: Lateral Shift Adjustment
WM210-220-230-240 Installation Instructions Extension Adjustment Loosen two bolts holding stop bracket in place on underside of short throw projector mount. (See Figure 38) Adjust mount to desired extension length. (See Figure 37) Tighten two bolts holding stop bracket to secure mount in desired position. -
Page 17: Security Screw Installation (Optional)
Installation Instructions WM210-220-230-240 Security Screw Installation (Optional) Remove eight #8-32 x 1/2" Phillips pan machine screws (F) from wall bracket covers. (See Figure 42) (F) x 2 (F) x 8 projector arm not shown for display purposes (V) x 2 Figure 44 Figure 42 Remove two bolts holding stop bracket in place on... - Page 18 WM210-220-230-240 Installation Instructions Install two 1/4-20 x 1/2" button head security screws (T) through holes in stop bracket and into holes in sliding nuts. (See Figure 46) adapter plate stop bracket sliding nuts x 4 (one at a time) Figure 47 (T) x 2 Install one 1/4-20 x 3/4"...
- Page 19 Installation Instructions WM210-220-230-240...
- Page 20 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
