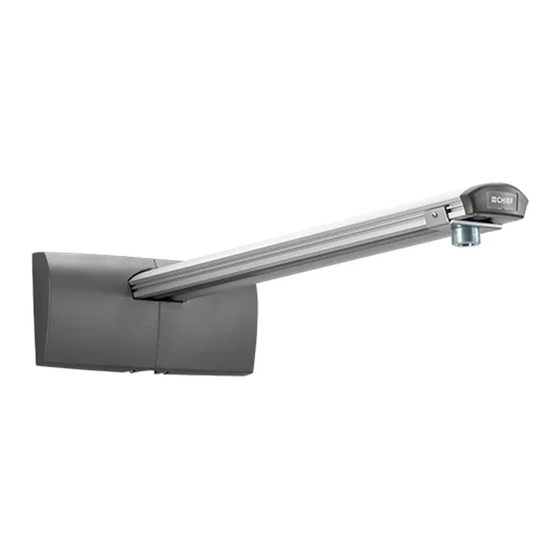

- Page 1 Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation WP2XS WP2XUS Short Throw Projector Wall Mounts Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description WP2XS, WP2XUS...
-
Page 2: Installation Instructions
Chief® is a registered trademark of Milestone AV Technologies. • a 2" x 4"-25ga minimum steel studs wall. All rights reserved. WP2XS models do not include UL Listed RSA series product and are considered accessories. IMPORTANT WARNINGS AND CAUTIONS! --SAVE THESE INSTRUCTIONS--... - Page 3 Installation Instructions WP2XS, WP2XUS DIMENSIONS DIMENSION A DIMENSION B MIN DIMENSION B MAX WEIGHT CAPACITY WP21S/US 24.36 [618.8] 3.62 [92.0] 22.12 [561.9] 25 LBS WP22S/US 40.36 [1025.2] WP21S/US 8.62 219.0 1.00 25.4 1-1/2" PIPE THREAD ATTACH PROJECTOR MOUNT HERE DIMENSIONS:...
- Page 4 WP2XS, WP2XUS Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 5: Tools Required For Installation
Installation Instructions WP2XS, WP2XUS TOOLS REQUIRED FOR INSTALLATION 5/32" Hardware required, not included: 5/32" (security) Steel Stud Install (included) 4 - Toggler® 1/4-20 (BB) Snap-Toggle 4 - Grade 2 or better 1/4-20 x 1-3/4" Phillips 1/4" (included) pan head screws 4 - Grade 2 or better 1/4"... -
Page 6: Installation
WP2XS, WP2XUS Installation Instructions INSTALLATION The WP2XS/WP2XUS short throw projector mounts are designed to be mounted to an 8" concrete, 8"x8"x16" concrete block, clay brick, 2" x 4" wood studs (16" on center), or steel studs wall. NOTE: Proceed to the Concrete, Concrete Block or Clay Brick, Wood Studs or Steel Studs Installation Installation section, as appropriate for installation. -
Page 7: Site Requirements
Installation Instructions WP2XS, WP2XUS Site Requirements 16" (on center) Studs Short Throw Mount Installation Location (Must be centered over two studs) If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the studs being used to install the mount. - Page 8 WP2XS, WP2XUS Installation Instructions Steel Studs Steel Stud IMPORTANT ! : See Site Requirements section before proceeding with Steel Studs installation to ensure Drywall installation site meets requirements! The drywall must have a minimum thickness of 1/2"! Plastic Cap Determine mounting location on wall. Use stud finder to locate steel studs.
- Page 9 Installation Instructions WP2XS, WP2XUS 10. Place wall plate (E) over anchors and align mounting holes in wall plate with holes in anchors. (See Figure 8) 11. Insert Grade 2 or better 1/4-20 x 1-3/4" Phillips pan head screws (not included) through Grade 2 or better 1/4" washer...
- Page 10 WP2XS, WP2XUS Installation Instructions Projector Installation (WP2XUS Models Only) NOTE: Proceed to Adjustments section to continue installation. WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the weight of the projector does not exceed 25 lbs (11.3 kg).
- Page 11 Installation Instructions WP2XS, WP2XUS Projector Installation (WP2XS Models Only) Tighten the M5x35mm button head cap screw (H) on the wall plate (E). (See Figure 14) WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the weight of the...
-
Page 12: Cable Management (Optional)
WP2XS, WP2XUS Installation Instructions Adjustments Projector Arm Height Adjustment Distance from Wall / Screen Size (See Figure 15) 13. Loosen two Phillips screws (one on left, one on right) on sides of projector arm plate. (See Figure 16) Loosen two Phillips screws (one on left, one on right). - Page 13 Installation Instructions WP2XS, WP2XUS Add Covers Add left and right wall plate covers (B and C) over wall plate (E). (See Figure 18) Fasten covers using four M5 x 12mm Phillips cap head screws (J). (See Figure 18) (J) x 2...
- Page 14 WP2XS, WP2XUS Installation Instructions...
- Page 15 Installation Instructions WP2XS, WP2XUS...
- Page 16 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
