I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação

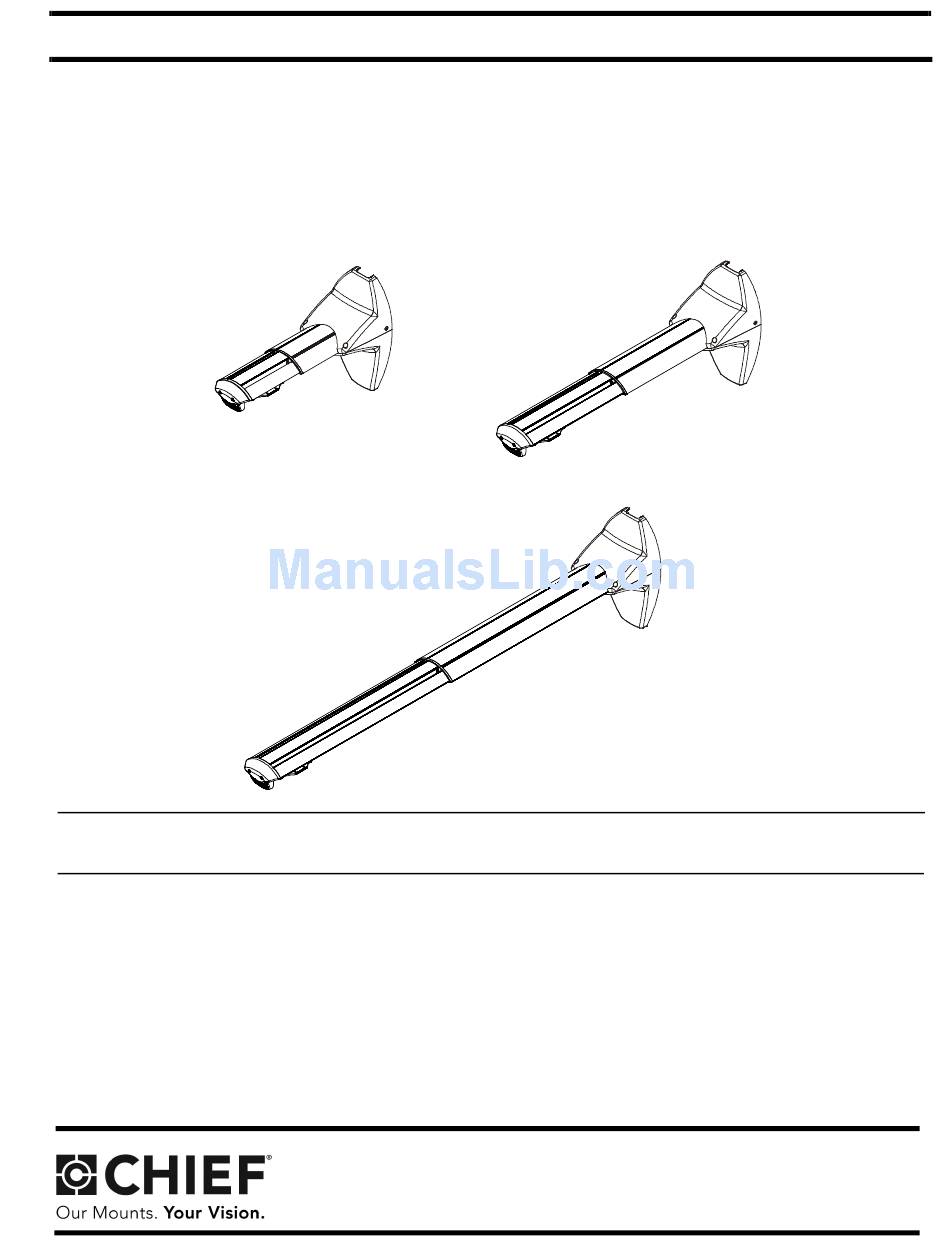

Single Stud Short Throw Wall Mounts
WM-110
WM-130
WM110S-120S-130S
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
WM-120
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF WM-110
Summary of Contents for CHIEF WM-110
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation WM-110 WM-120 WM-130 Single Stud Short Throw Wall Mounts Spanish Product Description German Product Description Portuguese Product Description...
-
Page 2: Installation Instructions
Chief® is a registered trademark of Milestone AV Technologies. Reinforce the structure as required before installing the All rights reserved. - Page 3 Installation Instructions WM110S-120S-130S LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 4: Tools Required For Installation
WM110S-120S-130S Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/2" (12.7mm) 5/32" 3/8" (9.5mm) (included) (security) 7/32" (5.6mm) 1/2" (12.7mm) PARTS WM-110 WM-130 WM-120 A (1) [Short throw wall mount] D (1) [Lower cover] B (1) [Wall bracket] C (1) [Top cover]... -
Page 5: Site Requirements
Installation Instructions WM110S-120S-130S Site Requirements WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! The figure below identifies the minimum requirements for installation of display mounts onto a steel stud structure. If the structure or its components do not meet these requirements contact the mount manufacturer for specific instructions before attempting installation. -
Page 6: Assembly And Installation
WM110S-120S-130S Installation Instructions ASSEMBLY AND INSTALLATION The WM1XXS single stud short throw wall mount can be (X) x 4 mounted to concrete, concrete block, 2" x 4" wood studs or steel studs. Installing Mounting Bracket (F) x 4 WARNING: ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL CORDS OR CABLES CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free... - Page 7 Installation Instructions WM110S-120S-130S Install three 5/16 x 2-1/2" hex head lag screws (E) through three 5/16" washers (F), inner holes of mounting bracket and into drilled holes. (See Figure 4) (F) x 3 (E) x 3 Steel stud Figure 5 Hold metal channel on anchor (J) flat alongside plastic straps and slide channel through hole.
-
Page 8: Installation To Wall Bracket
WM110S-120S-130S Installation Instructions Snap off plastic straps on anchor at wall by pushing side to side, snapping off straps level with flange of plastic cap. (side view) (See Figure 8) Repeat Steps 5 through 8 for each mounting hole. Steel Stud Drywall (side view) (G) x 3... -
Page 9: Installing Mount Covers
Installation Instructions WM110S-120S-130S (U) x 2 (S) x 2 (T) x 2 (Y) x 2 Figure 11 Installing Mount Covers Raise lower cover (D) up to WM1XXS. (See Figure 12) Figure 13 PROJECTOR INSTALLATION WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components attached to the short throw projector mounts... - Page 10 WM110S-120S-130S Installation Instructions (bottom view) mounting plate (W) x 4 Figure 16 Install interface and projector to RSM according to RSM installation instructions. Figure 14 RPA Installation RPM Installation Line up mounting holes on RPA mount with corresponding holes on projector mounting plate. (See Figure 14) Line up mounting holes on RPM mount with corresponding holes on projector mounting plate.
-
Page 11: Removing Mount Covers
Installation Instructions WM110S-120S-130S level. • Turn clockwise to raise mounting level. • Turn counterclockwise to lower mounting level. (See Figure 20) Tighten two bolts (one bolt on either side of pitch adjustment screw). (See Figure 20) mounting plate Tighten two 5/16 x 1/2" hex head screws (S) (one on each side of mounting bracket). - Page 12 WM110S-120S-130S Installation Instructions (Optional) Cables may be tied to inside of WM1XXS front cover using cable ties (not included). Route cables near (projector not shown) front cover and wrap cable tie through slots on front cover and around cables. (See Figure 23) cable tie (not included) [Small cable cover] [Large cable cover]...
-
Page 13: Security Screw Installation (Optional)
Installation Instructions WM110S-120S-130S Return outer covers to the mount following instructions in Remove two bolts holding stop bracket in place on Installing Mount Covers section. underside of short throw projector mount. (See Figure 27) Extension Adjustment Loosen two bolts holding stop bracket in place on underside of short throw projector mount. - Page 14 WM110S-120S-130S Installation Instructions (Optional) Remove projector from WM1XXS according to projector interface instructions. NOTE: For most projectors, it will be necessary to remove Adapter plate projector prior to install four security screws to projector bracket. For ease of installation, it is recommended to remove projector prior to performing the following Plastic spacer steps.
- Page 15 Installation Instructions WM110S-120S-130S...
- Page 16 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
