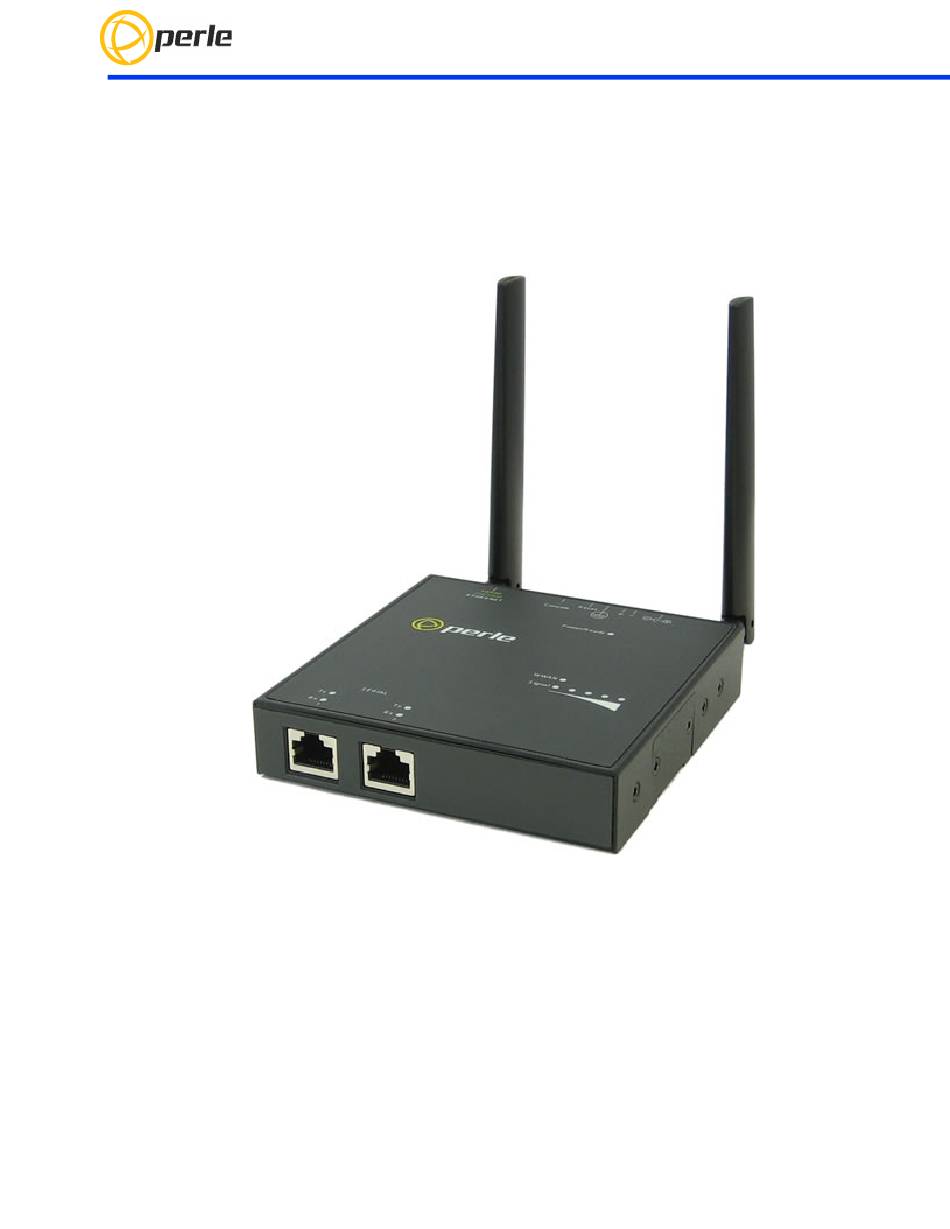

- Page 1 IOLAN SDG2 LA/LE Hardware Installation Guide Updated: January 2021 Version: A3-20-01-2021 www.perle.com Document Part#:5500410-10(Rev. E)
- Page 2 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
-
Page 3: Table Of Contents
IOLAN SDG2 LA/LE (Side Views) ........ -
Page 4: Hardware
Hardware Preface Audience This guide is for the network or computer technician responsible for installing the Perle IOLAN SDG2 LA/LE. Familiarity with the concepts and terminology of Ethernet and local area networks is required. Purpose This document describes the hardware and physical characteristics of the Perle IOLAN SDG2 LA/LE. -
Page 5: Overview

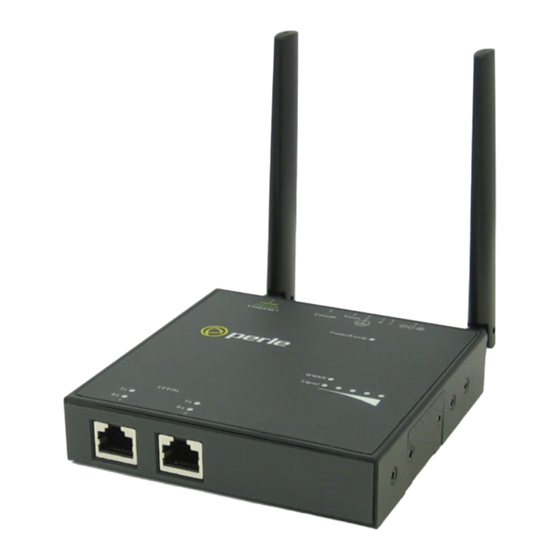

Overview This guide provides information on installing and doing the initial configuration on the IOLAN SDG2 LA/LE unit. The IOLAN SDG2 LA/LE has two RJ-45 serial ports. IOLAN SDG2 LA/LE (Top View) IOLAN SDG2 LA/LE Hardware Installation Guide... -
Page 6: Iolan Sdg2 La/Le (Side Views)
IOLAN management function using the industry standard CLI command set (see Console Port Mode See the IOLAN Command Line Interface Reference Guide for a complete set of the com- mands available via the console. IOLAN SDG2 LA/LE Hardware Installation Guide... - Page 7 Insert a paper clip into the inset hole labeled as “WPS” and gently press inwards. Pressing this button for less than 3 seconds will put the IOLAN SDG2 LA/LE in WPS mode, greater than 4 seconds will put the unit in Soft-AP mode.
-
Page 8: Led Indicators
Data is being transmitted over the cellular network no cellular connection established Signal strength State Description Amber/ Green Wireless signal strength from amber LEDS to green LEDS with green being the strongest signal strength Ethernet Port Status Indicators IOLAN SDG2 LA/LE Hardware Installation Guide... - Page 9 Port Link / Speed State Description Green 1000 Mbps (flashes with activity) Green/Amber 100 Mbps (flashes with activity) Amber 10 Mbps (flashes with activity) No LAN connection IOLAN SDG2 LA/LE Hardware Installation Guide...
-
Page 10: Installation
Warning: In case of malfunction or damage, no attempts at repair should be made. Do not dismantle the product. All repairs need to be made by a qualified Perle representative. Warning:... -
Page 11: Connecting The Hardware
Connecting the barrel connector Plug the power adapter into a power socket and connect the barrel connector end into the IOLAN SDG2 LA/LE. The SDG2 LA/LE will perform a power up sequence. The Power/ Ready LED should show a solid green. See LED Indicators for power up sequence. -
Page 12: Connecting The Serial Port
To set serial port 1 in this mode, ensure that the “console/serial DIP switch” is in the serial (up) position. Connecting Data Ports Wi-Fi Connections Connect the Wi-Fi antennas by simply screwing the antennas onto the connectors on the IOLAN. IOLAN SDG2 LA/LE Hardware Installation Guide... - Page 13 10/100/1000 RJ45 port on the network hub/switch. 2. Once the IOLAN SDG2 LA/LE is connected and the link is established, the link LEDs will turn on. These LEDs will indicate whether you have a 10,100 or 1000 Mb/s link to your hub/switch.
-
Page 14: Operation
To reset the IOLAN insert a paper clip into the inset hole labelled as “Reset” and gently press inwards. The Power/Ready LEDs on the IOLAN SDG2 LA/LE will go ON and then momentarily OFF when released to show that the unit has been reset. -
Page 15: Appendix A - Technical Specifications
Storage Temperature -40°C to 85°C -40°F to 185°F Operating and Storage 5 to 95% (non condensing) Humidity Weight 0.4 kg (0.88 lbs) Dimensions 110 by 111 by 24 mm 4.3 by 4.4 by 0.9 in IOLAN SDG2 LA/LE Hardware Installation Guide... -
Page 16: Appendix B - Mechanical Drawing
Appendix B - Mechanical Drawing IOLAN SDG2 LA/LE Hardware Installation Guide... -
Page 17: Appendix C - Sample Label
Appendix C - Sample Label IOLAN SDG2 LA/LE Hardware Installation Guide... -
Page 18: Appendix D - Cabling And Connectors
Pinout EIA-485 EIA-485 Pinout EIA-232 EIA-422 Full Duplex Half Duplex 1 (in) 2 (out) TxD+ TxD+ TxD+/RxD+ 3 (in) 4 (out) TxD- TxD- TxD-/RxD- 5 (in) RxD+ RxD+ 7 (in) RxD- RxD- 8 (out) IOLAN SDG2 LA/LE Hardware Installation Guide... - Page 19 Note: For EIA-232 these switches must be in the OFF position (default) Ethernet Cable The 10/100/1000BaseT(X) port is located on the back of the IOLAN SDG2 LA/LE. This Ethernet port will automatically adjust depending on the type of Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or HUB/Switch-type) connected to the port.
-
Page 20: Appendix E - Iolan Maintenance
Appendix E - IOLAN Maintenance • Ensure there is clearance of 50.8mm (2 inches) on all sides of the IOLAN SDG2 LA/LE to provide proper airflow through the unit • Do not use solvents or cleaning agents on this unit •... -
Page 21: Contacting Perle Systems Limited
Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. https://www.perle.com/support_services/support_request.shtm Warranty / Registration This product is covered by the Perle IOLAN SDG Warranty. Details can be found at: https://www.perle.com/support_services/warranty.shtml IOLAN SDG2 LA/LE Hardware Installation Guide...
