Assembly Instructions & User's Manual
For
Member's Mark

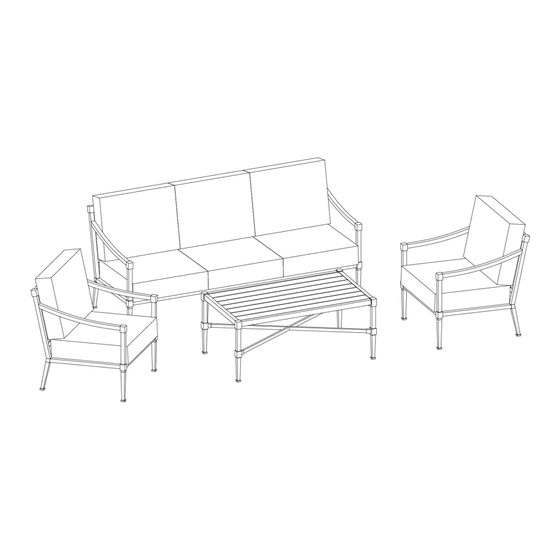

Sheffield 4pc Sofa Seating Set
Item Number: 990018891
Model Number: GB-11449-4PC
Customer Assistance
: 1-888-691-2824
(spare/replacement parts)
or Email:
customerservice@coronadocasuals.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Member's Mark GB-11449-4PC
Summary of Contents for Member's Mark GB-11449-4PC
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Sheffield 4pc Sofa Seating Set Item Number: 990018891 Model Number: GB-11449-4PC Customer Assistance : 1-888-691-2824 (spare/replacement parts) or Email: customerservice@coronadocasuals.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................3 Important Safety Information ........................3 Before Assembly .............................3 Care & Use ..............................3 Package Contents ...........................4 Product Information ..........................4 Components ..............................5 Hardware ..............................5 Tools ................................5 Step 1 .................................6 Step 2 ..............................7 Furniture Cover ...........................8 Warranty Information ..........................9 P a g e... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this product. Where applicable, and for your safety, assembly by an adult is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Table leg 1 Allen/Hex Head Bolt M6x20mm Table leg 2 Allen/Hex Head Bolt M6x35mm M6 Washer Table support bar Table top M6 Spring Washer Product Information Product Dimensions： Lounge Chair: 27.75"x34.75"x32.7" (70.5cm x 88.3cm x 83cm) Sofa: 77.75"x34.75"x32.7"(197.5cm x 88.3cm x 83cm) Coffee table: 46.5"x26.5"x20"(118cm x 67.3cm x 50.8cm) Product Weight Capacity... -
Page 5: Components
Components Table top Table leg 1 Table leg 2 Table support bar Qty: 2pcs Qty: 2pcs Qty: 1pc Qty: 1pc Hardware Allen/Hex Head Allen/Hex Head Bolt M6 Washer M6 Spring Washer Bolt M6x20mm M6x35mm Qty: 8pcs Qty: 12pcs Qty: 4pcs Qty: 8pcs Tools M6 Allen Wrench... -
Page 6: Step 1
Step 1 Table leg 1 Table leg 2 Table support bar Qty: 2pcs Qty: 2pcs Qty: 1pc Allen/Hex Head Bolt M6x20mm M6 Washer M6 Allen Wrench Qty: 4pcs Qty: 4pcs Qty: 1pc Assemble the table legs 1 (A) and table legs 2 (B) to table support bar (C) with bolts (E) and M6 washer (F) by using Allen wrench (I). -
Page 7: Step 2
Step 2 Table top M6 Washer M6 Allen Wrench Allen/Hex Head Bolt M6 Spring Washer Qty: 1pc Qty: 8pcs M6x35mm Qty: 8pcs Qty: 1pc Qty: 8pcs Carefully place the table top (D) upside down on a non-abrasive surface. Assemble the table legs (A&B) to table top (D) with bolts (F), M6 spring washer(H) and washer (G) by using Allen wrench (I). -
Page 8: Furniture Cover
Furniture Cover Component Description Quantity Component Description Quantity Lounge chair Sofa Seat cushion for Lounge Furniture cover chair and sofa for sofa Back cushion for Lounge Coffee table chair and sofa Furniture cover for Furniture cover Lounge chair for Coffee table For maximum protection, use Heavy Duty Furniture Cover (M&Q&S). -
Page 9: Warranty Information
Warranty Information This product component has a 5 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number customerservice@coronadocasuals.com 1-888-691-2824 or email us at NOTE: Please consider recycling all applicable packaging material.
