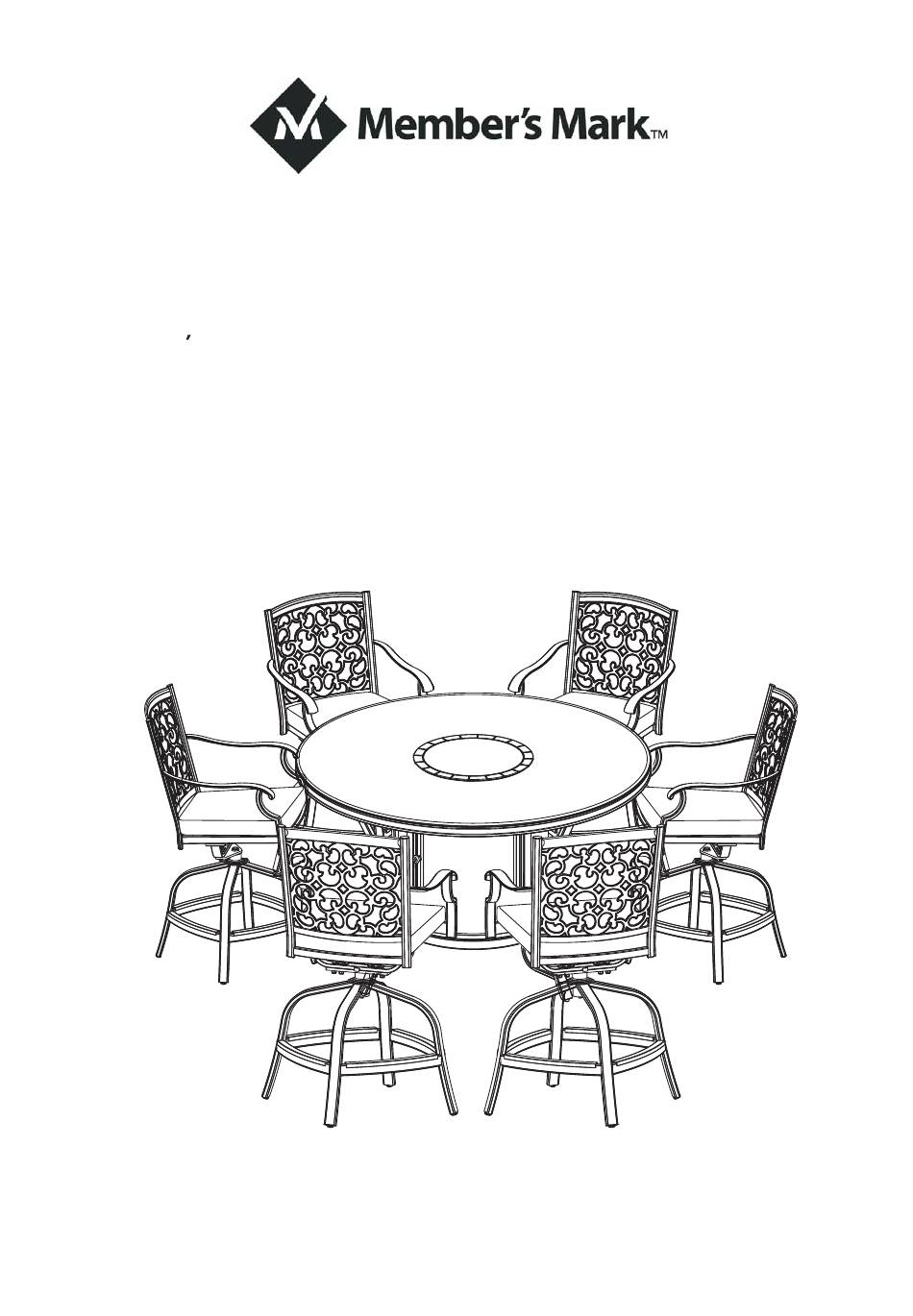

Assembly Instructions & User's Manual
for
Members Mark Hastings 7pc High Fire Pit Dining Set
Item Number:
Model Number: AAW01411-7SC
Customer Assistance
: 1-800-416-3511
(spare/replacement parts)
or Email: customerservice@agio-usa.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Advertisement
Table of Contents
Related Manuals for Member's Mark Hastings AAW01411-7SC
Summary of Contents for Member's Mark Hastings AAW01411-7SC
- Page 1 Assembly Instructions & User's Manual Members Mark Hastings 7pc High Fire Pit Dining Set Item Number: Model Number: AAW01411-7SC Customer Assistance : 1-800-416-3511 (spare/replacement parts) or Email: customerservice@agio-usa.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Page 1 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
-
Page 2: Table Of Contents
Table of Contents Quality Statement.............3 Important Safety Information..........3 Before Assembly..............3 Package Contents............4 Product Information............5 Swivel Chair Components..............6 Hardware..............6 Tools................6 Step1.................7 Fire Pit Table Components...............8 Hardware..............8 Tools................8 Step1-Step 8............9-11 Care & Use and Storage Instructions.........12 Warranty Information............12 Page 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents 1Set / 3Ctn Box 1 of 3： Component Description Quantity Swivel Chair Firepit Table Leg Box 2 of 3： Component Description Quantity Firepit Table Base Fire Ices Furniture Cover Box 3 of 3： Component Description Quantity Firepit Table Top Burner Cover Page 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 5: Product Information
Product information Weight Factory Description Dimensions Part No. Capacity Assembly 250lb per seat Swivel Chair AAW01411 24.5" W *24.5" D *42.5" H A.Foot Cap FC0607 Factory Weight Description Dimensions Part No. Assembly Capacity 59.75" RD * 35.75"H Firepit Table ART01400 A.Foot Cap FC0553 Description... -
Page 6: Components
Components CHAIR FRAME SWIVEL BASE Part No.AS0136 Part No. AS0137 Qty 1 Qty 1 Hardware (H1) (H2) (H3) 5/16" X 42 MM BOLT Ø8.0 X 2.3 MM SPRING WASHER METAL PLATE PART NO:HW0809 PART NO:HW0003 PART NO:HW0847 Qty: 4 Qty: 4 Qty: 2 (H4) (H5) -
Page 7: Step1
Step 1 (H1) (H2) (H3) 5/16" X 42 MM BOLT Ø8.0 X 2.3 MM SPRING WASHER METAL PLATE Qty: 4 Qty: 4 Qty: 2 (H4) (H5) (H7) 5/16" NUT Ø8.5 X 1.5 MM WASHER HEX WRENCH-1 Qty: 4 Qty: 4 Qty: 1 (H8) HEX WRENCH-2... -
Page 8: Components
Components A. FIRE PIT TABLE TOP B FIRE PIT TABLE BASE C. FIRE PIT TABLE LEG Part No. FP2888 Part No. FP2889 Part No. FP2890 Qty 1 Qty 1 Qty 4 D. BURNER COVER E. BURNER PAN PROTECTIVE F. FIRE ICE Part No. -
Page 9: Step1-Step 8
Step 1 - Step 7 Step 1 (H15) (H17) (H19) 1/4" X 35 MM BOLT Ø6.5 X 1.0 MM WASHER HEX BOLT DRIVER Qty: 8 Qty: Qty: 1 NOTE: Bolts must be FULLY tightened. Step 2 There are three factory assembled M4 screws in the firepan/burner assembly. Remove those three screws in order to remove the burner pan protective ring. - Page 10 Step 3 Note: holes do not go through to the top of table. Holes shown for illustration purposes only. (H15) 1/4” X 35 MM BOLT Qty: 8 (H16) Ø20 X Ø6.5 X 2 MM WASHER Qty: 8 (H19) HEX BOLT DRIVER Qty: 1 Step 4 Place the burner pan protective ring, into the burner as shown in the...
- Page 11 Step 5 Place the firepit table in its final position. There must be a minimum of 24 inches of clearance from the side of the table top to any combustible walls. Step 6 Pour ALL the fire ices into the burner pan. The burner MUST be completely covered to ensure the appliance functions properly and safely.
-
Page 12: Care & Use And Storage Instructions
Care & Use Instructions CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. - Page 13 Distributed by Sam's West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Page 13 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
