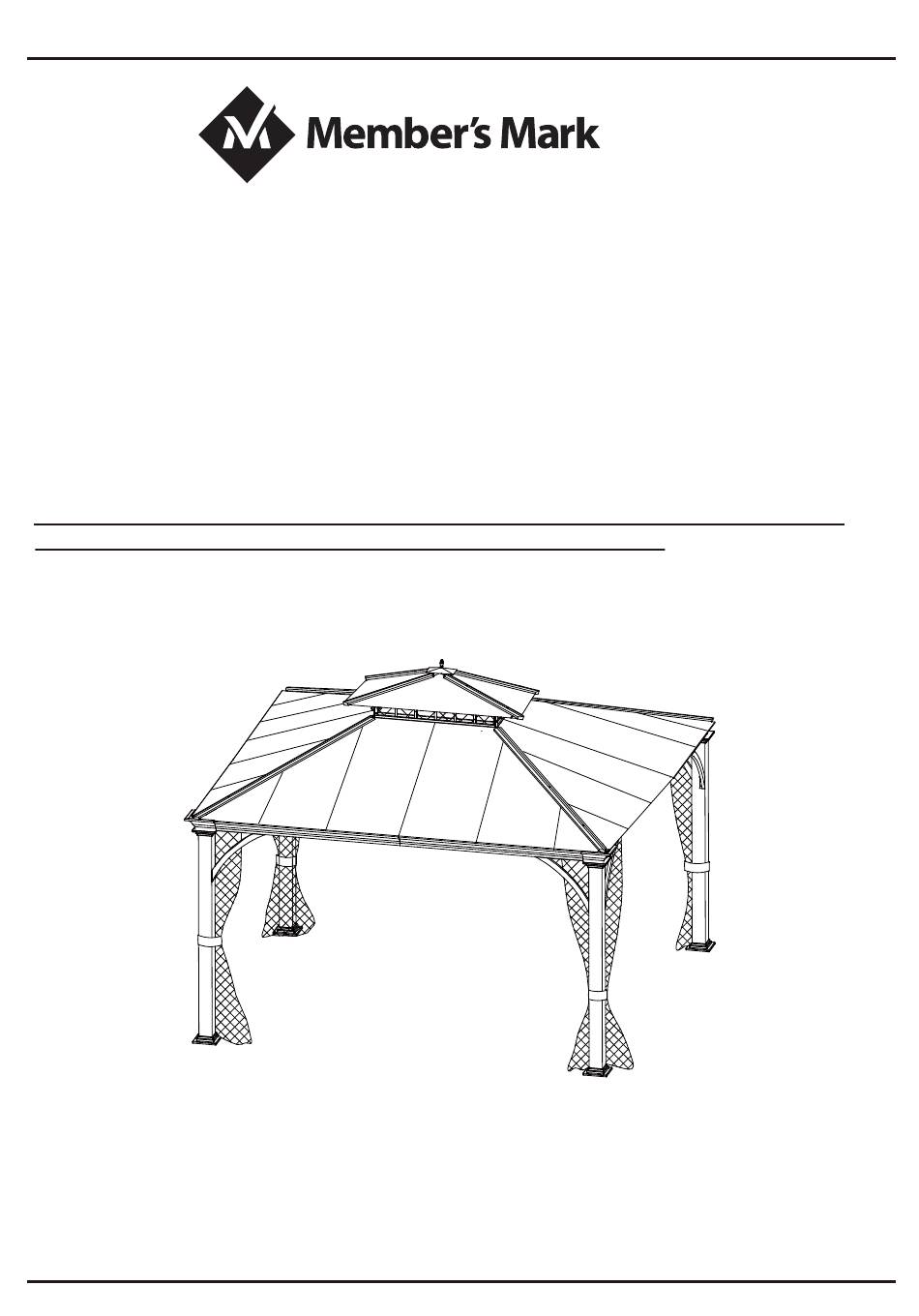

Assembly Instructions & User's Manual
Member's Mark [12'x12'Salemo Hardtop Gazebo]
Item Number: 980241174
Model Number:TPGAZ2027
Customer Assistance (spare/replacement parts):1-800-847-7508
or Email: servicet@taipengchina.com
DISCLAIMER: Supplier is fully responsible for the entire content of the assembly
manual, including all Sam's Club suggested edits or revisions.
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
for
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Salemo TPGAZ2027 and is the answer not in the manual?

Questions and answers

Tamela Sue Chenault
March 13, 2025

I need a replacement netting

0
1 comments:
Mr. Anderson
March 13, 2025

You can find a replacement netting for the Member's Mark Salemo TPGAZ2027 by contacting customer assistance. Call 1-800-847-7508 or email servicet@taipengchina.com for spare or replacement parts.

This answer is automatically generated

0
Ivan J Boatwright
March 24, 2025

I purchased from Big Lots a Louvered metal roof 10x12 ft pergola. I received 3- 10 ft. screen panels and 1- 12 ft panel. I need to exchange the 0nw 10 ft panel for a 12 ft panel. I assume it was packaged wrong. Item # TPGAZ25120 SKU# 810775523

0

Related Manuals for Member's Mark Salemo TPGAZ2027

Summary of Contents for Member's Mark Salemo TPGAZ2027

  • Page 1 Assembly Instructions & User’s Manual Member’s Mark [12'x12'Salemo Hardtop Gazebo] Item Number: 980241174 Model Number:TPGAZ2027 Customer Assistance (spare/replacement parts):1-800-847-7508 or Email: servicet@taipengchina.com DISCLAIMER: Supplier is fully responsible for the entire content of the assembly manual, including all Sam’s Club suggested edits or revisions. THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.

  • Page 2: Table Of Contents

    Table of Contents Quality Statement ..................3 Important Safety Information ................3 Before Assembly ....................3 Care & Use.....................3 Product Information..................3 Components....................4 Hardware......................6 Tools.......................6 Step 1 – Step 4....................7 Warning....................20 Danger....................20 Care & Use and Storage Instructions.............20 Warranty Information..................21 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...

  • Page 3: Quality Statement

    Quality Statement Important Safety Information Please read all instructions carefully before assembling this gazebo. For your safety, assembly by two or more adults is strongly recommended. Hardware may loosen overtime. Periodically check that all connections are tight. NOTICE: To prevent injury and property damage from unexpected tipping of furniture, we highly recommend installation of the anti-tip kit included with this product.

  • Page 4: Components

    Components Support Bar Left Lintel -Left Support Bar Right Lintel -Right Big Top Connector Connector Corner Small Top cover Lintel Center Lintel Cover Connector Connection Hook Piece Small Top Post Support Beam Base Plate Long-Top Bar Base Cover Short-Top Bar Roof Framing Corner Beam-Left Top...
  • Page 5 Components Roof Framing Small Top Roof Beam- Cover 51" / 1295mm Left Middle Roof Framing Panel Cover Beam- Right - Big Top 51" / 1295mm Middle Roof Framing Panel Cover Beam- - Big Top 70" / 1782mm Left Bottom Roof Framing Small Top Cover 1 Beam- 70"...

  • Page 6: Hardware

    Hardware Bolt\Plastic Bolt\Flat Washer (m6*15) Washer (m6*15) Bolt\Plastic Flat Bolt\ Washer (m6*20) Washer (m6*20) Bolt\Plastic Bolt\Plastic Washer (m6*35) Washer (m6*40) Bolt\Flat Washer\ Nut Screw (m6*35) Bolt\Flat Washer\ Nut Stake (m6*55) Tools Wrench (Included) Hammer(Not Included) Allen Wrench (Included) Qty: Part No:GJ Qty: Part No:GK Safety goggles...

  • Page 7: Step 1 - Step 4

    Step 1 (GA) (GB) (GJ) Bolt\Flat Washer (M6X15) Bolt\Flat Washer (M6X20) Wrench Qty: 108 Qty: 24 Qty: 1 Fig 1 Fig 1 Fig 2 Fig 2 1-a . Insert the Post (E) into the Base Cover (G), then connect the Base Plate (F) to the Post (E) by Bolt\Flat Washer M6*15 (GA), as per Fig 1.
  • Page 8 Fig 3/Fig 4/Fig 5 Fig 3 Fig 4 Fig 5 1-b. Connect the Left Lintel (A1) and Right Lintel (A2) with the Connector (B) by Bolt\Flat Washer M6*15 (GA), as per Fig 3/Fig 4. Attach the Lintel Cover (C2) to the Lintel (A1/A2) by Bolt\Flat Washer M6*15 (GA), as per Fig 5.
  • Page 9 Fig 6 Fig 7 Fig 8 Equal diagonal distance Fig 6 Fig 7 Fig 8 1-c. Connect the Lintel (A1/A2) to the Corner Connector (H) by Bolt\Flat Washer M6*15 (GA). Attach the Support Bar (J1/J2) to the Lintel (A1/A2) and Post (E) by Bolt\Flat Washer M6*15 (GA). Attach the Slanting Bar Connector (I) to the Post (E) by Bolt\Flat Washer M6*20 (GB), as per Fig.6/Fig.7/Fig.8.
  • Page 10 Step 2 (GA) (GE) (GJ) Bolt\Flat Washer (M6X15) Bolt\Flat Washer \Nut (M6X55) Wrench Qty: 20 Qty: 8 Qty: 2 Fig 9 Fig 10 Fig 9 Fig 10 2-a. Connect the Long-Top Bar (S) to the Slanting Bar connector (I) by Bolt\Flat Washer \Nut M6*55 (GE), as per Fig 9. Connect the Long-Top Bar (S) to the Big Top Connector (M) by Bolt\Flat Washer M6*15 (GA), as per Fig 10.
  • Page 11 Fig 11 Fig 11 Fig 12 Fig 12 A1/A2 2-b. Connect the Short- Top Bar (T) to the Big Top Connector (M) by Bolt\Flat Washer M6*15 (GA), as per Fig 11. Connect the other end of Short- Top Bar (T) to the Connection Piece (D) by Bolt\Flat Washer M6*15 (GA), as per Fig 12. Connect other sides in the same way.
  • Page 12 Fig 13/Fig 14 Fig 16 Fig 15 Fig 13 Fig 14 3-a . Attach the Small Top Lintel (N) to the Small Top Lintel (N) by Bolt\Flat Washer \Nut M6*35 (GD), as per Fig 13. Then connect the other sides in the same way. 3-b.
  • Page 13 Fig 17 3-d . Attach the Small Top Panel (AG) to the small top Support Beam (R) by Bolt\Flat Washer M6*15 (GA), as per Fig 17. Assemble the others In the same way. Plastic Washer Fig 18 3-e. Attach the Small Top Roof Cover (BA) to the assembled small top by Bolt\Plastic Washer M6*35 (GH),as per Fig.18.
  • Page 14 Step 4 (GA) (GJ) Bolt\Flat Washer (M6X15) Wrench Qty: 52 Qty: 1 Fig 20 Fig 21 Fig 21 Fig 22 Fig 24 Fig 23 Fig 24 Fig 20 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 15 4-a . Connect the Big Top Connector (M) with the Small Top Lintel (N) by Bolt\Flat Washer M6*15(GA), as per Fig 20. Fig 21 Fig 22 UR/VR UL/VL UL/VL UR/VR 4-b. Connect the Roof Framing Beam-Right Top (UR) / Roof Framing Beam- Right Middle (VR) and the Roof Framing Beam-Left Top(UL) / Roof Framing Beam-Left Middle (VL) to the Long-Top Bar (S) by Bolt\Flat Washer M6*15(GA) , as per Fig 21.
  • Page 16 (GC) (GF) (GG) Bolt\Plastic Washer (M6X40) Bolt\Plastic Washer (M6X15) Bolt\Plastic Washer (M6X20) Qty: 8 Qty: 48 Qty: 8 (GI) (GJ) (GK) Screw Wrench Allen Wrench Qty: 40 Qty: 1 Qty: 1 Fig 26 Fig 25 4pcs 4pcs 4pcs 4pcs 4pcs 4pcs Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 17 Fig 26 Fig 25 Plastic Washer Plastic Washer AE/AF the connect shape of steel top panel 5-a. Attach the Big Top Panel-Left (AA/AC) to the assembled Roof Framing Beam-Left Bottom(WL) by Bolts\Plastic Washer M6*15 (GF) , Attach the Big Top Panel-Middle (AE) to the assembled Roof Framing Beam-Left Bottom (WL) by Bolts\Plastic Washer M6*15 (GF) In the same way.
  • Page 18 Fig 28 Fig 29 5-d. Attach the Corner cover (C1) to the corner of the Lintel (A1/A2) by Screws (GI). Attach the Edge Cover- Left (DA) / Edge Cover- Right (DB) to the edge of the Lintel (A1/A2) by Screws (GI), as per Fig.28-29. Note: Keep the end of the Edge Cover (DA/DB) and the outer edge of the cross beam is on the same line.
  • Page 19 Fig 32 Fig 31 5-f. Put the Air Vent (FA) inside of the frame and attach the Air Vent (FA) to the Small Top Lintel (N) using the velcro straps, as per Fig.31. c. Adjust the position and then insert the Stakes (GL) into each hole of the Base Plate (F), as per Fig.32.

  • Page 20: Warning

    WARNING KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame-resistant properties ineffective.

  • Page 21: Warranty Information

    Warranty Information This product component has a 1 year guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number 1-800-847-7508 or email us at servicet@taipengchina.com NOTE: Please consider recycling all applicable packaging material.
  • Page 22 MADE IN CHINA Need Assistance? Visit us at: samsclub.com/membersmarkhelp Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
