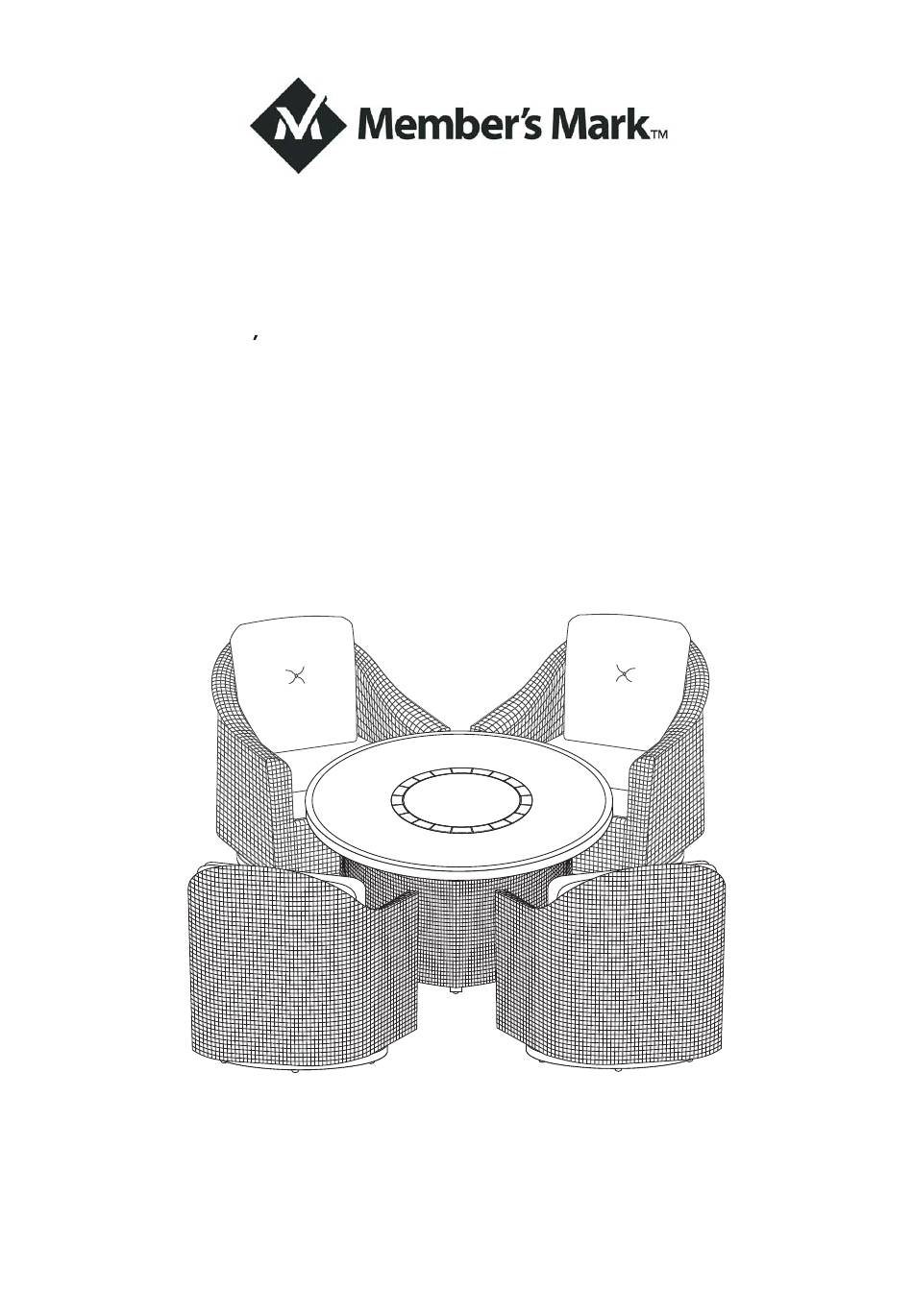

Assembly Instructions & User's Manual
for
Members Mark Heritage 5pc Gas Firepit Set
in Dove/in Indigo
Item Number:
Model Number: BGX03823-5DC/BGX03823-5IC
Customer Assistance
: 1-800-416-3511
(spare/replacement parts)
or Email: customerservice@agio-usa.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Advertisement
Table of Contents
Related Manuals for Member's Mark BGX03823-5DC
Summary of Contents for Member's Mark BGX03823-5DC
- Page 1 Assembly Instructions & User's Manual Members Mark Heritage 5pc Gas Firepit Set in Dove/in Indigo Item Number: Model Number: BGX03823-5DC/BGX03823-5IC Customer Assistance : 1-800-416-3511 (spare/replacement parts) or Email: customerservice@agio-usa.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Quality Statement.............3 Important Safety Information..........3 Before Assembly..............3 Package Contents............4 Product Information............5 Components..............6 Hardware.................6 Tools................6 Step 1 – Step 7..............7-9 Care & Use and Storage Instructions.........10 Warranty Information............10 Page 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents 1Set / 4Ctn Box 1 of 4： Component Description Quantity Swivel Glider Box 2 of 4： Component Description Quantity Swivel Glider Box 3 of 4： Component Description Quantity Firepit Table Base Furniture Cover Fire ice Box 4 of 4： Component Description Quantity... -
Page 5: Product Information
Product information Weight Factory Description Part No. Dimensions Capacity Assembly 250lb per seat Swivel Glider BGX03823 30.5" W *33.75" D *34.75" H A.Foot Cap FC0768 Weight Factory Description Dimensions Part No. Capacity Assembly 45.75" RD * 25"H Firepit Table BRE01100 A.Foot Cap FC0553 Description... -
Page 6: Components
Components A. FIRE PIT TABLE TOP B FIRE PIT TABLE BASE C. BURNER COVER Part No.FP2309 Part No.FP2308 Part No.FP2310 Qty 1 Qty 1 Qty 1 D. BURNER PAN PROTECTIVE E. FIRE ICE RING Part No.FP2147 Part No.FP2311 Qty 2 Qty 1 Hardware (H1) -
Page 7: Step 1 - Step 7
Step 1 - Step 7 Step 1 There are three factory assembled M4 screws in the firepan/burner assembly. Remove those three screws in order to remove the burner pan protective ring. Step 2 (H17) (H19) (H16) Ø20 X Ø6.5 X 2.0 MM HEX BOLT DRIVER 1/4"... - Page 8 Step 3 Place the burner pan protective ring, into the burner as shown in the diagram . Secure the burner pan protective ring to the burner pan by using three M4 screws. (H10) M4 BOLT Qty: 3 (H18) HEX BOLT DRIVER Qty: 1 NOTE: Bolts must be FULLY tightened.
- Page 9 Step 6 Open the door and place the LP tank in the bottom frame. Connect the regulator. Turn the black handle clockwise to tighten. Turn the handle counterclockwise to remove. The hose must point down. Open the control door and check that the valve is turned all the way clockwise to the “OFF”...
-
Page 10: Care & Use And Storage Instructions
Care & Use Instructions CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. - Page 11 Distributed by Sam's West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Page 11 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
