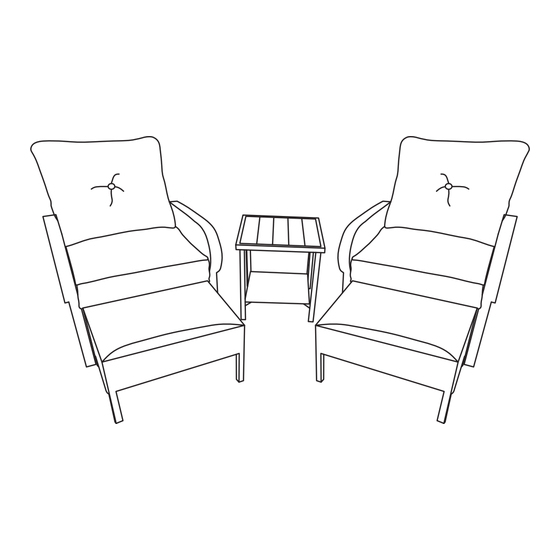

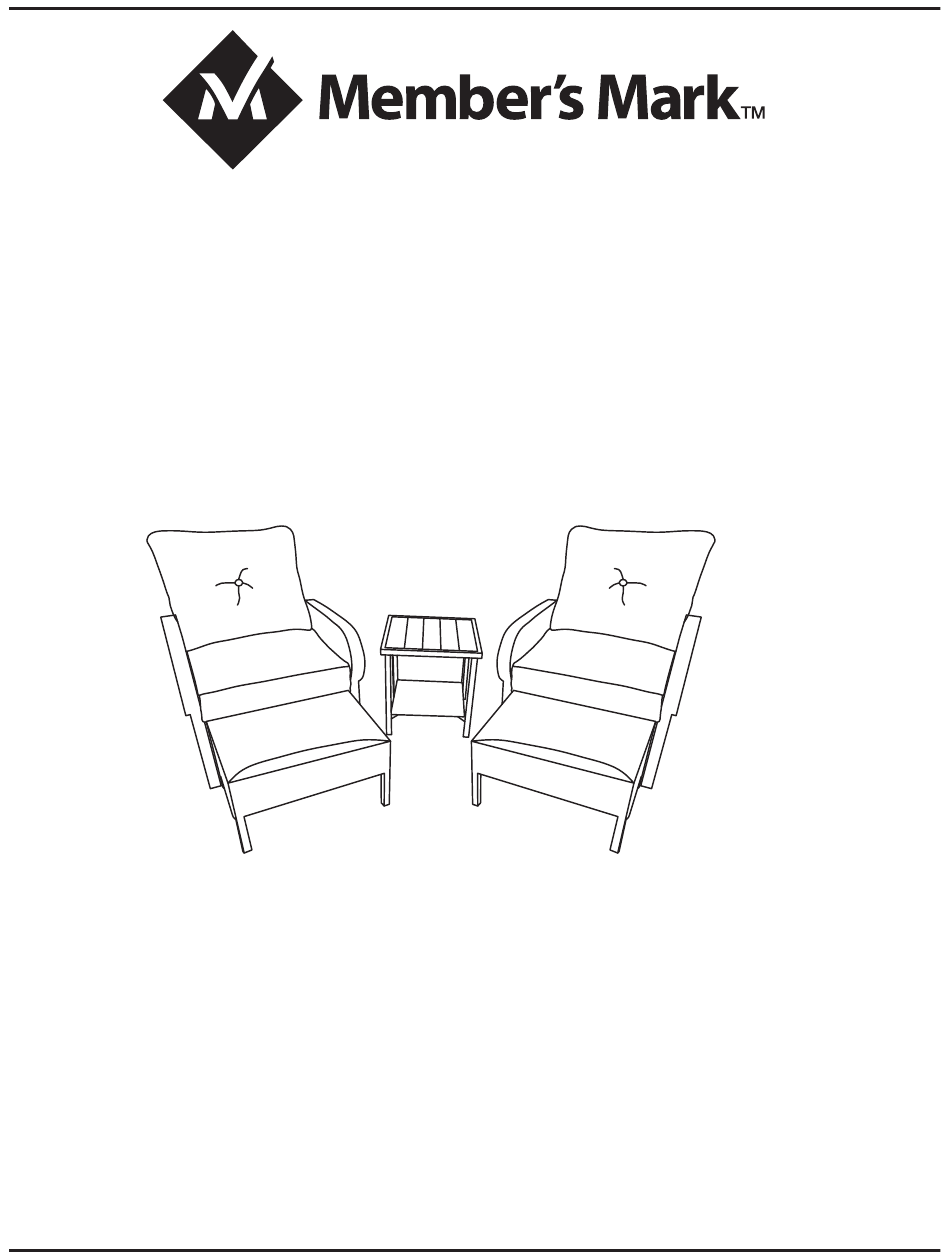

- Page 1 Assembly Manual Charles 5pc Deep Seating set Model Number: GC-9067-5PC THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime.
- Page 3 Components A..Table top..1 B..Table leg..4 C..Shelf..1 Hardware M6x20mm Allen/Hex M6 Washer Allen Wrench Head Bolt Qty: 12 Qty: 1 Qty: 12 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 4 Step 1 M6x20mm M6 Washer Hex Wrench Allen/Hex Head Bolt Qty: 12 Qty: 1 Qty: 12 Carefully place the table top (A) upside down on a non-abrasive surface. Assemble the table legs (B) to the table top(A) with bolts (D) and washer (E) by using Allen wrench (F).
- Page 5 Step 2 Attach the shelf (C) to the table legs (B) using bolts (D) and washers (E) with AllenWrench (F). Tighten all bolts with Allen wrench. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 6 Step 3 Crefully turn the table over. The side table is ready for your enjoyment. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
