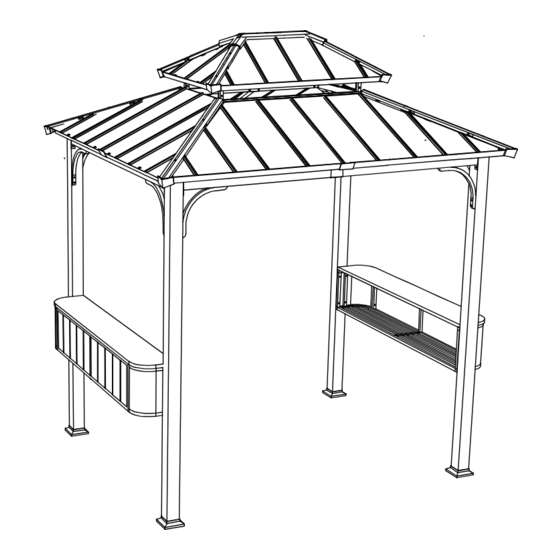

Grill gazebo

Advertisement

Congratulations on your purchase of Hickory Hardtop Grill Gazebo. Our clear, easy to
follow, step-by-step instructions will guide you through the assembly process from start to finish.

WARNING:

z Do not assemble this item alone. 3 peoples are recommended for safe assembly.
z Keep all children and pets away from assembly area. Children and pets should be supervised when
they are in the area of the Gazebo construction.
z Keep assembly area at least 6ft/1.8m from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
z Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the product.
Please read all instructions before assembly and use.
z Check all bolts for tightness before use and periodically check and tighten bolts as necessary.
z Assemble on level ground.
z For outdoor use only.
z Anchor the gazebo to the ground with stakes for added safety. Stakes are provided to secure the
gazebo in the ground. If you wish to secure the gazebo to a concrete and wood surfaces, use anchors
suited for these surfaces (anchors not included).
Hickory Hardtop Grill Gazebo
Owner's Manual
