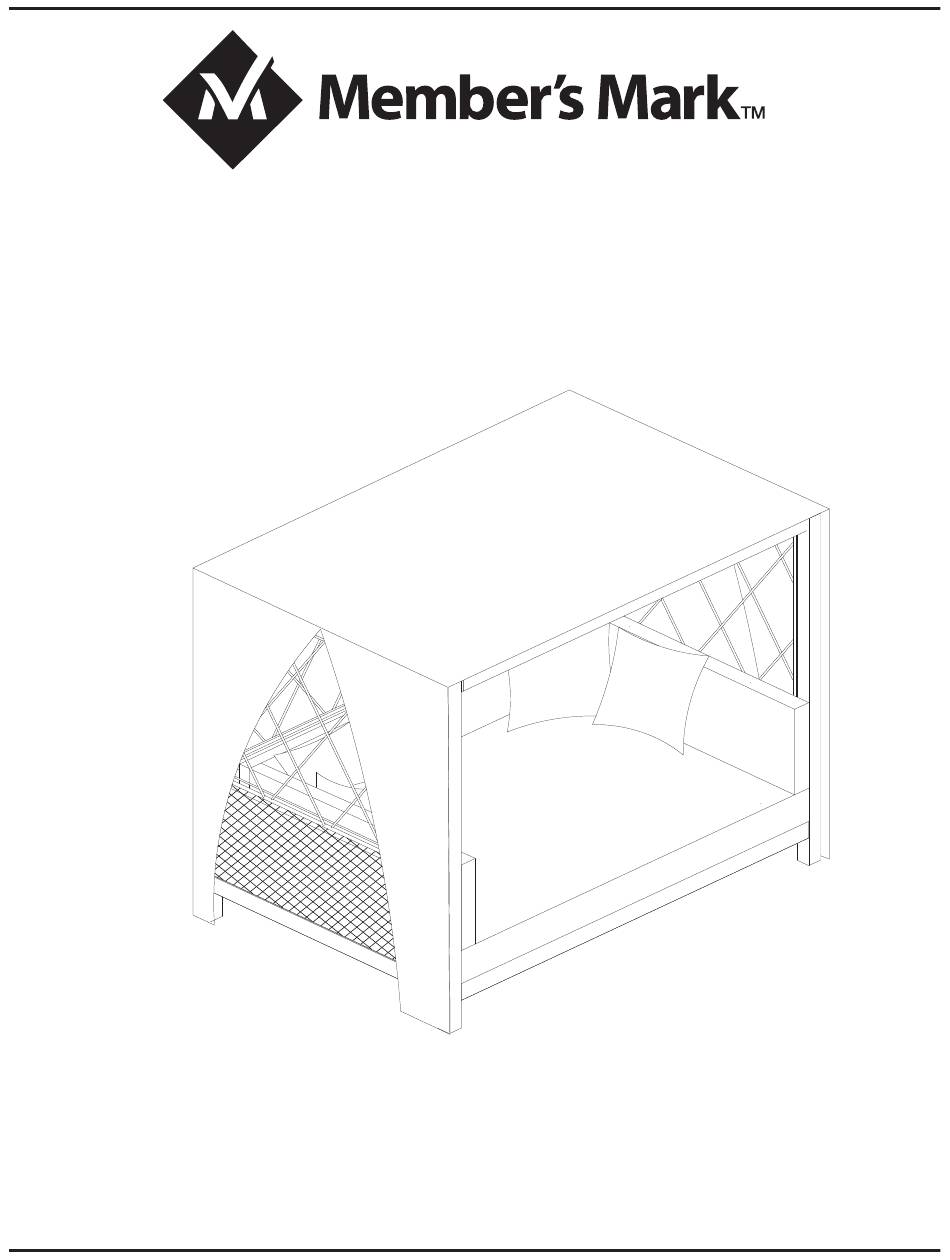

- Page 1 Assembly Manual Dream day lounger with 4pcs toss pillow Model Number: GL-1268-ARP THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime.
- Page 3 Components F..Back panel..1 A..Left panel..1 G..Seat panel..1 B..Right panel..1 H..Back connector panel..1 C..Front cross beam..1 I..Middle leg..3 D..Back cross beam..1 E..Ceiling...1 Hardware M6 Washer Allen/Hex Head Bolt Allen/Hex Head Bolt Qty: 38 M6x40mm M6x25mm Qty: 25 Qty: 10 Allen/Hex Head Bolt Canopy Allen Wrench M6x120mm...
- Page 4 Allen/Hex Head M6 Washer Allen Wrench Bolt M6x25 Qty: 16 Qty: 1 Qty: 16 Step 1 Carefully place the Left panel (A) and Right panel (B) on a non-abrasive surface. Assemble the front cross beam (C) and back cross beam (D) to the left panel(A) and back panel(B) with bolts (J) and washer (K) by using Allen wrench (O).
- Page 5 Step 2 Attach the ceiling (E) to the front cross beam (C) and back cross beam (D) using bolts (J) and washers (K) with Allen Wrench (O). Do not tighten the bolts until assembling is completed. Step 3 Attach the back panel(F) to the left panel (A) and right panel (B) using bolts (J) and washers (K) with Allen Wrench (O).
- Page 6 Step 4 M6 Washer Allen Wrench Allen/Hex Head Qty: 10 Qty: 1 Bolt M6x40 Qty: 10 Attach the seat panel (G) to the left panel (A) and right panel (B) using bolts (L) and washers (K) with Allen Wrench (O). Do not tighten the bolts until assembling is completed.
- Page 7 Attach the back connector panel (H) to the seatt panel (G) and back panel (E) using bolts (J & M) and washers (K) with Allen Wrench (O). Tighten all bolts (J,M and K) with Allen wrench (O) . Step 6 Allen/Hex Head Bolt M6 Washer Allen Wrench...
- Page 8 Step 7 Crefully turn the daybed over. Attach the Canopy (N)on the daybed. Step 8 Crefully turn the table over. Place the seat cushions (P), back cushion (Q), side cushion (R) and toss pillow (S) on the day lounger. The day lounger is ready for your enjoyment. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
