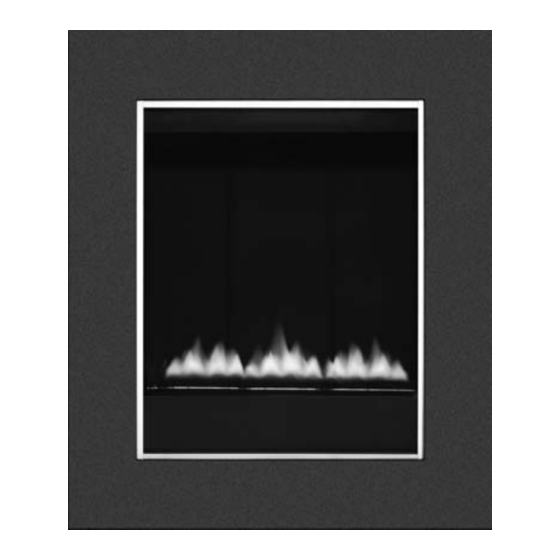

V V E E N N T T F F R R E E E E G G A A S S F F I I R R E E P P L L A A C C E E
MODEL : F500116
WALL MOUNTED ROOM HEATER (PROPANE)
INSTALLATION INSTRUCTIONS
(Para Instrucciones en español, ver la página 13)
Issue A-07/07
FOR USE ONLY WITH DECORATIVE TYPE
UNVENTED ROOM HEATERS.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR ADDITIONAL
INFORMATION CONSULT A QUALIFIED INSTALLER,
SERVICE AGENCY OR THE GAS SUPPLIER.
WARNING: DO NOT BUILD A WOOD FIRE. DO NOT
BURN WOOD OR OTHER MATERIAL IN THESE
APPLIANCES.
This appliance may be installed in an aftermarket,
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
The appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
Installer And Consumer Are
To Retain The Appliance
Manual With The Installed
WARNING: IF THE INFORMATION IN THIS MANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone.
Follow your gas suppliers instructions.
• If your gas supplier cannot be reached, call the fire
department.
Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air
must be provided. Refer to Combustion and Ventilation
Air Section, Page 3.
LEAVE THIS MANUAL WITH THE APPLIANCE.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Due to high temperatures, the appliance should be
located out of traffic and away from furniture or
draperies. Do not place clothing or other materials on or
near this appliance.
1
Appliance
317-F-09-5
INSTALLER:
CONSUMER:
