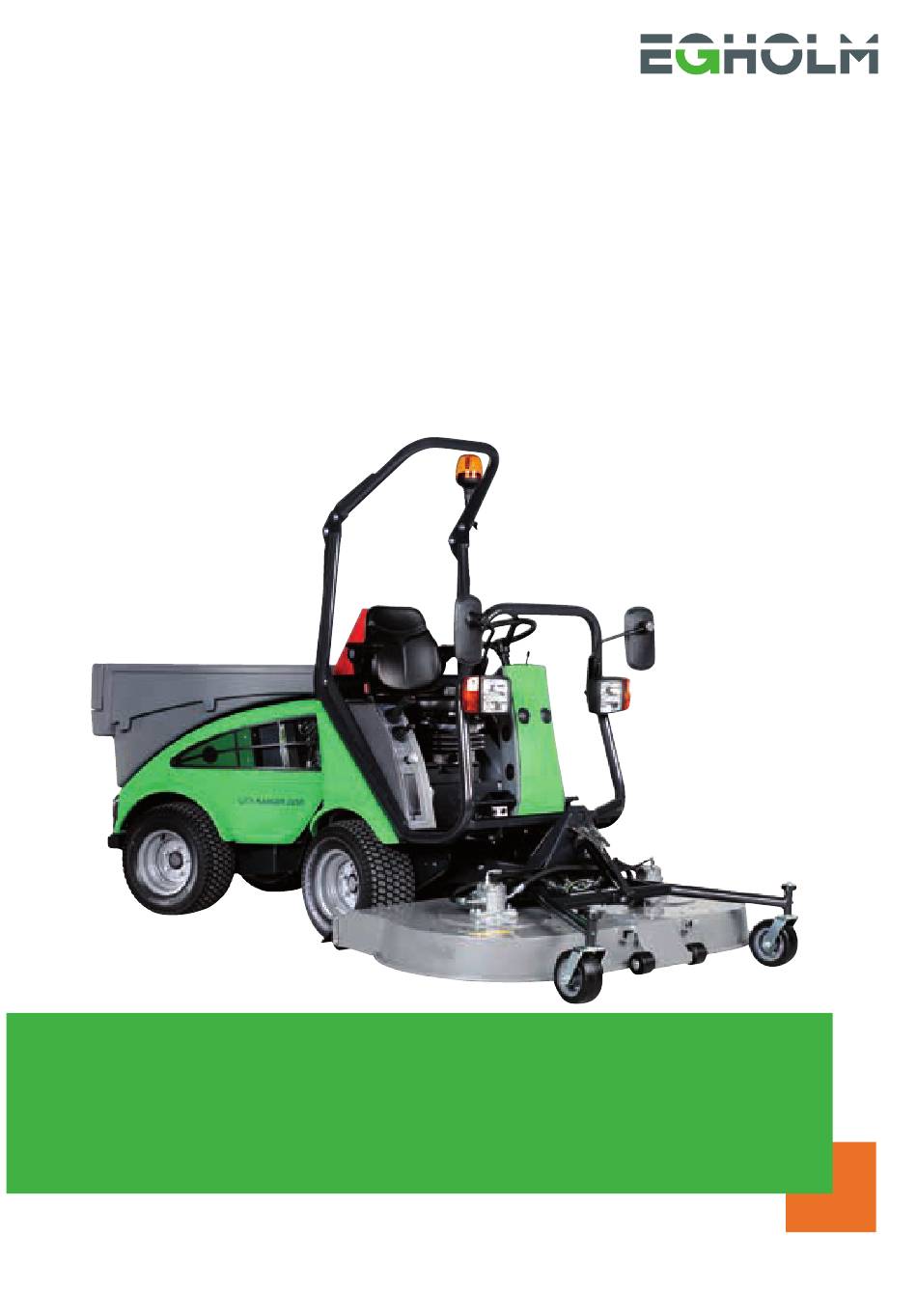

- Page 1 Operator´s manual Rotary/Mulch Mower 1600 City Ranger 2260/2250...
- Page 2 Egholm accepts no liability for errors or shortcomings in the operator’s manual. Contact Egholm Please do not hesitate to contact Egholm should you have questions of any kind regarding your new Egholm product. Best regards, Egholm A/S ·...
-
Page 3: Table Of Contents
Wearing parts ................23 5.1 Spare parts - City Ranger 2260/2250 Rotary/Mulch mower 1600 ......23 Notes . -
Page 4: General Information
General information... -
Page 5: Safety
Remove stones and branches more than 10° from the lawn as they can be unintentionally thrown out and cause damage to people and property. Prevent people from standing in the working area. Warning label Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... -
Page 6: Ec Declaration Of Conformity
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the data originator (data originator) of all data generated by the machine and attachments during use. -
Page 7: Technical Data
30-90 mm Performance/hour approx 8,000-15,000 m²/h Ground clearance below mower 90 mm No. of mower blades 3 units Specifications may be changed without prior notice. Optional equipment 70301081 Mulch-kit for rotary mower Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... -
Page 8: Operator's Manual
Operator´s manual... -
Page 9: Assembly / Disassembly
5. Use the locking handle on the A-frame to lock the mower in place. (Picture 4). The locking handle can only be engaged when the engine has been switched off. Removal Follow the procedure for fitting in reverse order. Lift Locking Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... -
Page 10: Before Start-Up
2. Lower the rotary mower by moving the joystick down. (Picture 3) 3. Activate the weight distribution using the red button on the joystick. (Picture 4) The mower will now adjust to ground conditions. Joystick Weight distribution Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... - Page 11 Make sure no one is standing close to the machine while it is in use. When turning, the rear of the machine swings out so there is a risk of crushing or collision. Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600...
-
Page 12: Adjustment
1. Unscrew the winged nut. (Picture 4) 2. Turn the wheel to the hole that corresponds to the height required. Height adjustment scale 3. Retighten the winged nut. Rear support wheel – Winged nut Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... -
Page 13: Tilt The Mower Up During Maintenance And Service Procedures
Make sure that the lock falls into place when the mower is laid down. The frame can be carried on top of the mower, if it is placed upside down on the mower guard. Lock Lever Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... -
Page 14: Service And Maintenance
Service and maintenance... -
Page 15: Cleaning
Clean the snap couplings 6. Avoid high pressure cleaning of the snap couplings. We recommend that you clean the mower immediately after operation to stop the grass sticking too firmly to the guard and blades. Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... - Page 16 Warning Blow the radiator clean with compressed air before washing the machine. Otherwise the dirt will not wash off. Wash the radiators with clean water Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600...
-
Page 17: Maintenance
This prevents the blades from falling off during operation. New blades and locking plates can be ordered Direction of blade travel from an authorised Egholm distributor. Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... - Page 18 When it is time to store the mower for the winter, the following steps are recommended: 1. Remove any loose paint and repaint any damaged areas. 2. Spray the mower with protective oil. Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600...
-
Page 19: Conditions
Conditions... -
Page 20: Warranty
The warranty period for the materials and manufacture of this Rotary/Mulch mower is 12 months from the date of purchase. In case of faults or defects in the machine within the warranty period, Egholm will carry out the necessary repairs without charge for materials and working hours in accordance with the terms and conditions listed below. -
Page 21: Complaints
2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable environmental legislation. 3. After the aforementioned parts have been removed, the machine is ready to be handed over to a local approved scrap merchants. Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... -
Page 22: Wearing Parts
Wearing parts... -
Page 23: Spare Parts - City Ranger 2260/2250 Rotary/Mulch Mower 1600
Wearing parts 5.1 Spare parts - City Ranger 2260/2250 Rotary/Mulch mower 1600 E01604250 Fan belt E70301141 Blade set E01100300 Wheel E09724030 Rubber guard Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... -
Page 24: Notes
Notes Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600... - Page 25 Notes Operator’s Manual City Ranger 2260/2250 Rotary/mulch mower 1600...
- Page 26 Egholm A/S Transportvej 27 7620 Lemvig, Denmark T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk...
