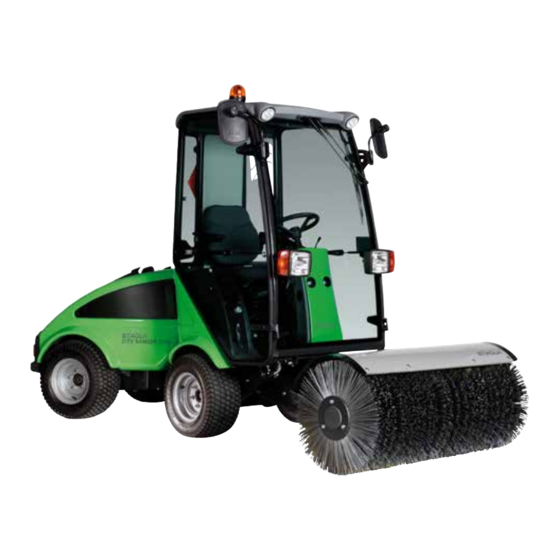

- Page 1 Operator´s manual Snow Sweeper City Ranger 2250...
-
Page 2: Introduction
Introduction Dear Customer Congratulations with your Egholm product. The City Ranger 2250 is a Danish designed and manufactured product, which offers a very flexible way of maintaining outdoor areas. Optimal use of your City Ranger 2250 Snow sweeper: To ensure the optimal performance of your City Ranger 2250 snow sweeper, please read this operator’s manual carefully before starting to use the machine. -
Page 3: Table Of Contents
5.1 Wearing parts - City Ranger 2250 snow sweeper ....... . -
Page 4: General Information
General information... -
Page 5: Safety
Do not drive on slopes with an incline of more than 10°. (Picture 3) Máx. 10º Do not drive on slopes with an incline of more than 10° Operator’s Manual City Ranger 2250 Snow Sweeper... -
Page 6: Ec Declaration Of Conformity
+45 97 81 12 05 hereby declares that Machine: Snow sweeper Type: 22SK120 · has been manufactured in conformity with the provisions of the Machinery Directive 2006/42/EU Place: Lemvig Date: Signature: Knud Olsen, Senior Engineer Operator’s Manual City Ranger 2250 Snow Sweeper... -
Page 7: Technical Data
550 mm Weight of snow sweeper 104 kg Number of brush rings Number of skewed brush rings Number of spacer rings Sweeping capacity approx. 10–12,000 m hour Attention: Specifications may change without prior notice. Operator’s Manual City Ranger 2250 Snow Sweeper... -
Page 8: Operator's Manual
Operator´s manual... -
Page 9: Assembly / Disassembly
6. Step down on the support strut and swivel it to the machine’s front wheel, until it falls into place. Joystick (Picture 4) Disassembly: Follow the procedure for fitting in the reverse order. Locking the attachment 1. Down 2. Swivel Swivel support strut Operator’s Manual City Ranger 2250 Snow Sweeper... -
Page 10: Before Start-Up
(Picture 3) The snow sweeper will now follow the terrain perfectly. To adjust the weight distribution read the operator’s manual for the basic City Ranger 2250 machine. 4. Start the snow sweeper by activating the PTO- front. (Picture 3) 5. - Page 11 Make sure that no one is standing near the machine while it is in use. N.B! When turning, the rear of the machine swings out, so there is a risk of crushing or collision. Operator’s Manual City Ranger 2250 Snow Sweeper...
-
Page 12: Service And Maintenance
Service and maintenance... - Page 13 4. Then place all brush rings, each followed by a spacer ring, on the brush axle. 5. Finally, mount a straight brush ring. 6. Refit the flange. New brush rings can be ordered from an Brush ring Spacer ring authorised Egholm distributor. Operator’s Manual City Ranger 2250 Snow Sweeper...
- Page 14 When the snow sweeper is to be stored outside the season, it is recommended to remove any flaking paint and to repaint any damaged areas. It is recommended that the attachment is greased or sprayed with protective lubricant. Operator’s Manual City Ranger 2250 Snow Sweeper...
-
Page 15: Conditions
Conditions... -
Page 16: Warranty
The warranty period for the materials and manufacture of the snow sweeper is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs at no charge to the customer, including materials and working hours, in accordance with the terms and conditions listed below. -
Page 17: Complaints
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site. 2. Remove all plastic and rubber parts and dispose of. 3. After the parts mentioned have been removed, the machine is ready to be handed over to an approved scrap merchant. Operator’s Manual City Ranger 2250 Snow Sweeper... -
Page 18: Wearing Parts
Wearing parts... -
Page 19: Wearing Parts - City Ranger 2250 Snow Sweeper
Wearing parts 5.1 Wearing parts - City Ranger 2250 snow sweeper 01109000 Spacer ring 90501911 Set of brush rings 09701390 Wheel for support strut 09722670 Rubber guard Operator’s Manual City Ranger 2250 Snow Sweeper... -
Page 20: Notes
Notes Operator’s Manual City Ranger 2250 Snow Sweeper... - Page 21 Notes Operator’s Manual City Ranger 2250 Snow Sweeper...
- Page 22 Egholm A/S Transportvej 27 7620 Lemvig, Denmark T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk...
