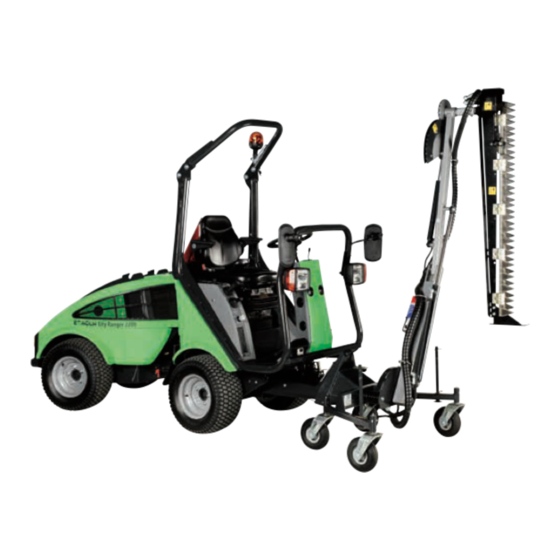

- Page 1 Operator´s manual Hedge cutter City Ranger 2260-2250...
- Page 2 Reservations As it is the Egholm policy to make continuous improvements, we reserve the right to alter the machine’s specifications and equipment at any time without notice. Egholm accepts no liability for errors or omissions in the operator’s manual.
-
Page 3: Table Of Contents
5.1 Wearing parts - City Ranger 2260-2250 Hedge cutter ....... . -
Page 4: General Information
General information... -
Page 5: Safety
Max. 10° bar (22 psi) when the Hedge cutter Do not drive on slopes with an incline of is attached. Lower tyre pressure more than 10° increases the risk of roll-overs. (Picture 3) Operator’s Manual City Ranger 2260/2250 Hedge cutter... -
Page 6: Ec Declaration Of Conformity
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the data originator (data originator) of all data generated by the machine and attachments during use. -
Page 7: Technical Data
Hydraulic oil ....... . Texaco Rando HDZ 46 or equivalent Specifications may be changed without prior notice. Information plate (Picture 1) Information plate Operator’s Manual City Ranger 2260/2250 Hedge cutter... -
Page 8: Operator's Manual
Operator´s manual... -
Page 9: Assembly/Disassembly
3. Raise the A-frame by pulling the joystick back until the Hedge cutter is suspended, i.e. free of the ground. (Picture 4) 4. Stop the machine. Support strut lowered Locking Pull joystick back Operator’s Manual City Ranger 2260/2250 Hedge cutter... - Page 10 7. Removal: Follow the procedure for fitting in reverse order. To avoid accidents when detaching the Hedge cutter, always make sure the machine is on a level and stable surface. Support strut up Operator’s Manual City Ranger 2260/2250 Hedge cutter...
-
Page 11: Before Start-Up
(Picture 1) How to unlock the transport lock Unhitch the handle and lift the A-frame to the highest position. The attachment can now be lowered again. (Picture 2) Transport lock in unlocked position Operator’s Manual City Ranger 2260/2250 Hedge cutter... -
Page 12: Start-Up
2,000. (Picture 2) Protective covering 4. Move the joystick forward to lower the Hedge cutter and align the wheels with the surface. (Pictures 3 and +4) PTO front and throttle Joystick forward Wheels on surface Operator’s Manual City Ranger 2260/2250 Hedge cutter... - Page 13 Activate the weight distribution (red button) if the surface is soft. Weight distribution is adjusted using the control knob. (Picture 1) Make sure no one is standing close to the machine when it is in use. Weight distribution Operator’s Manual City Ranger 2260/2250 Hedge cutter...
-
Page 14: Setting Trimmer Position
4. To trim at lower horizontal/vertical positions: Press and hold the black button and move the joystick to the left. The arm moves down. Repeat Arm down positions as described in points 1 + 2. Cutting bar up Operator’s Manual City Ranger 2260/2250 Hedge cutter... - Page 15 3. Press and hold the black button and move the joystick to the left. The arm now moves to the right. (Picture 4) Locking pin Arm to right Operator’s Manual City Ranger 2260/2250 Hedge cutter...
- Page 16 The cutting bar is then raised higher up the hedge, so that the same section is trimmed all the way to the top. (Picture 1) Operating speed Depending on the conditions, an operating speed of 1–3 km/h is recommended. Operator’s Manual City Ranger 2260/2250 Hedge cutter...
-
Page 17: Service And Maintenance
Service and maintenance... - Page 18 Defective blades must be replaced immediately. This ensures effective trimming and reduces wear and tear on the Hedge cutter. Blade replacement must only be carried out by an authorised Egholm dealer Lubricating nipples Operator’s Manual City Ranger 2260/2250 Hedge cutter...
-
Page 19: Conditions
Conditions... -
Page 20: Warranty
The warranty period for the materials and manufacture of this Hedge cutter is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs without charge for materials and working hours in accordance with the terms and conditions listed below. -
Page 21: Complaints
2. Remove all plastic and rubber parts and dispose of. 3. After the parts mentioned have been removed, the machine is ready to be handed over to one of your local approved scrap merchants. Operator’s Manual City Ranger 2260/2250 Hedge cutter... -
Page 22: Wearing Parts
Wearing parts... -
Page 23: Wearing Parts - City Ranger 2260-2250 Hedge Cutter
Wearing parts 5.1 Wearing parts - City Ranger 2260-2250 Hedge cutter E90601370 Complete blade set E90601050 Blade tooth E90601060 Rivet E90601410 Complete upper blade E90601420 Complete lower blade E01100330 Wheel E90601030 Knife Guide E02901080 Lubricant spray E90601100 Skid Operator’s Manual City Ranger 2260/2250 Hedge cutter... -
Page 24: Notes
Notes Operator’s Manual City Ranger 2260/2250 Hedge cutter... - Page 25 Notes Operator’s Manual City Ranger 2260/2250 Hedge cutter...
- Page 26 Notes Operator’s Manual City Ranger 2260/2250 Hedge cutter...
- Page 27 Notes Operator’s Manual City Ranger 2260/2250 Hedge cutter...
- Page 28 Egholm A/S Egholm A/S Transportvej 27 Transportvej 27 7620 Lemvig, Denmark 7620 Lemvig, Denmark T.: +45 97 81 12 05 T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk www.egholm.eu - info@egholm.dk...
