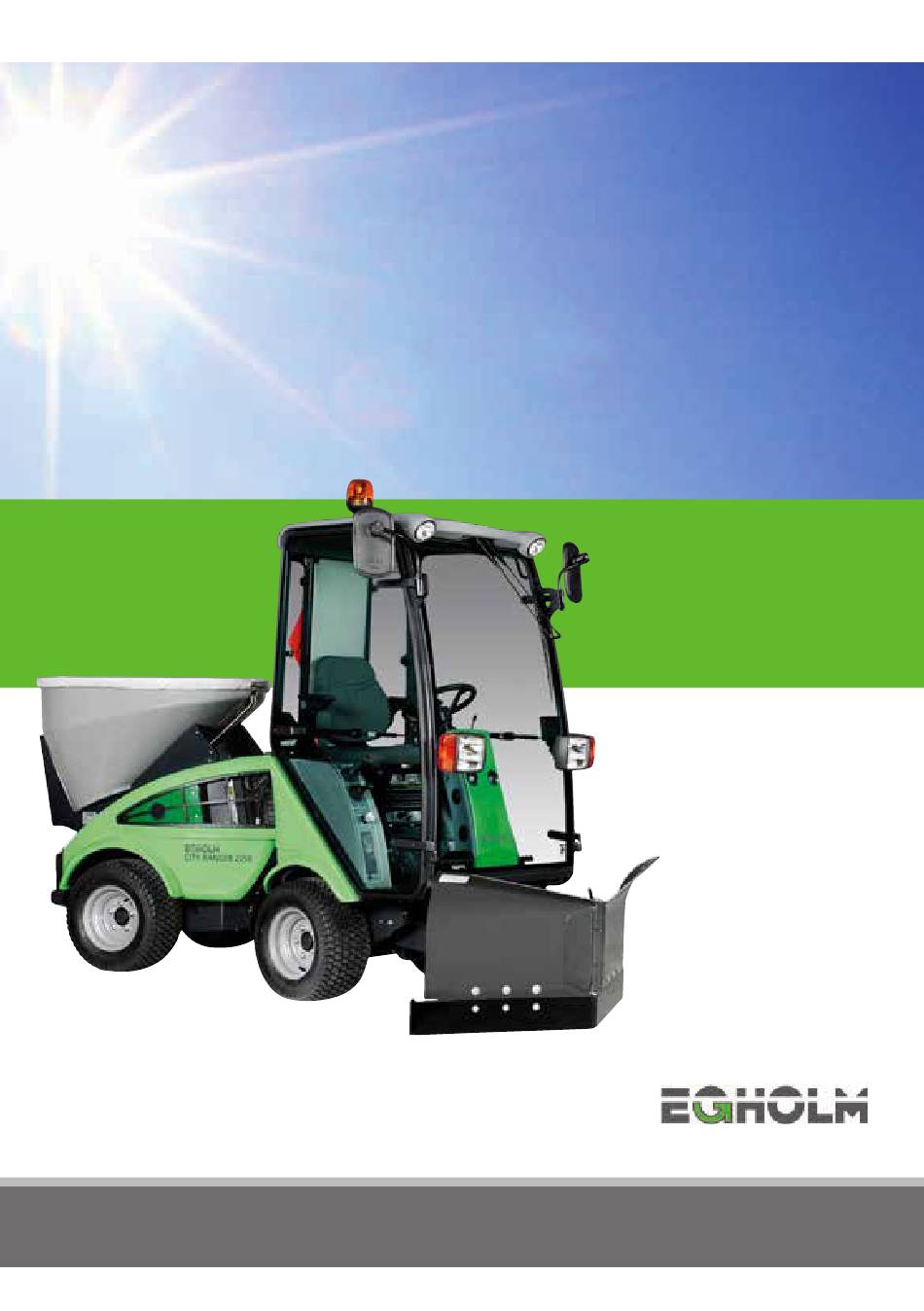

  • Page 1 ’ peratOr s manual SNOW V-BLADE City Ranger 2250...
  • Page 2 Reservations: As it is the Egholm policy to make continuous improvements, we reserve the right to alter the specifications and equipment at any time without notice. Egholm accepts no liability for errors or omissions in the operator’s manual.
  • Page 3: Table Of Contents

    5.1 Wearing parts – City Ranger 2250 snow V-blade ....... .
  • Page 4: General Information

    Do not drive on slopes Max. 10° with an incline of more than 10°. (Picture 3) Do not drive on slopes with an incline of more than 10° Operator’s Manual City Ranger 2250 Snow V-blade...
  • Page 5: Eu Declaration Of Conformity

    · has been manufactured in conformity with: European Parliament and Council directive 2006/42/EC of 17 June 2006 on approximation of the laws of the Member States on machinery. Place: Lemvig Date: Signature: Poul Møller Rasmussen Operator’s Manual City Ranger 2250 Snow V-blade...
  • Page 6: Technical Data

    Weight on snow V-blade 118 kg Clearing width: 1,200 -1,400 mm Ground clearance below scraping edge, lifted 240 mm Ground clearance below skids, lifted 215 mm Attention: Specifications may be changed without prior notice Operator’s Manual City Ranger 2250 Snow V-blade...
  • Page 7: Operator's Manual

    A-frame. (Picture 3) The locking handle can only be engaged when the machine has been stopped. Attaching Disassembly: Follow the procedure for fitting in reverse order. To make attachment and removal easier, set the left and right blades evenly. Locking Operator’s Manual City Ranger 2250 Snow V-blade...
  • Page 8: Important Before Start-Up

    (Picture 4). The snow V-blade will now adjust to ground conditions. To adjust the weight distribution read the operator’s manual for the basic City Ranger 2250 machine. 4. Turn the left blade of the snow V-blade by moving the joystick to the left or to the right.
  • Page 9: Adjustment

    2. Lock the snow V-blade in the raised position using the transport lock. (Picture 2) Skid 3. Stop the machine. 4. Remove the locking ring on the skid. (Picture 3) Adjust the skid height by moving washers up or down. Operator’s Manual City Ranger 2250 Snow V-blade...
  • Page 10: Service And Maintenance

    (Picture 2) There are five lubrication nipples in the centre swivel. There are four lubrication nipples on the cylinder. (Picture 3) Location of lubrication nipples Operator’s Manual City Ranger 2250 Snow V-blade...
  • Page 11 When the snow V-blade is to be stored outside the season, it is recommended to remove any loose paint and to repaint any damaged areas. It is recommended the attachment is greased / sprayed with protective lubricant. Operator’s Manual City Ranger 2250 Snow V-blade...
  • Page 12: Conditions

    In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs at no charge to the customer, including materials and working hours, in accordance with the terms and conditions listed below.
  • Page 13: Complaints

    2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable environmental legislation. 3. After the parts mentioned have been removed, the machine is ready to be handed over to an approved scrap merchant. Operator’s Manual City Ranger 2250 Snow V-blade...
  • Page 14: Wearing Parts

    Wearing parts 5.1 Wearing parts – City Ranger 2250 snow V-blade 09722135 Rubber scraping edge for 01108120 Spacer profiles for steel scraper V-blade 01108130 Front plate for rubber scraping 01108090 Rubber scraping edge for edge, V-blade V-blade 01905020 Safety split pin for skids...
  • Page 15: Notes

    Notes Operator’s Manual City Ranger 2250 Snow V-Blade...
  • Page 16 Egholm A/S Transportvej 27 DK-7620 Lemvig T. +45 97 81 12 05 F. +45 97 81 12 10 www.egholm.eu info@egholm.dk 70101291-01 EN...
