- Page 1 ’ peratOr s manual SALT AND SAND SPREADER City Ranger 2250...

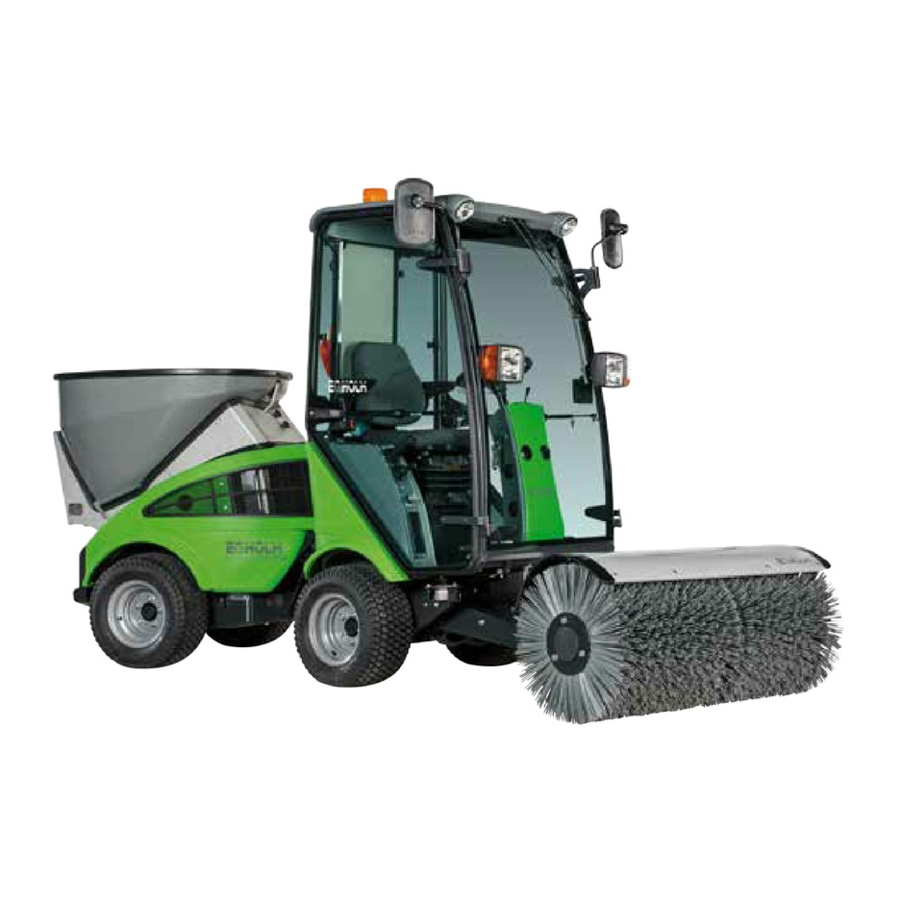

- Page 2 Dear Customer, Congratulations with your new Egholm product. The City Ranger 2250 is a Danish designed and manufactured product, which offers a very flexible way of maintaining outdoor areas. Optimal use of your City Ranger 2250 salt and sand spreader: To ensure optimal performance of your City Ranger 2250 salt and sand spreader, please read this manual carefully before using the machine.
-
Page 3: Table Of Contents
5.1 Wearing parts - City Ranger 2250 salt and sand spreader ...... -
Page 4: General Information
Do not drive Spreader plate on slopes with an incline of more than 10°. (Picture 4) Max. 10° Do not drive on slopes with an incline of more than 10° Operator’s manual City Ranger 2250 Salt and sand spreader... - Page 5 The safety grill must be fitted before onto the machine. the salt and sand spreader can be used. (Picture 2) Loading salt and grit: Do not fill the container all the way to the rim. Safety grill Operator’s manual City Ranger 2250 Salt and sand spreader...
-
Page 6: Ec Declaration Of Conformity For Machinery
The machine: Salt and sand spreader 2250 22SG Type: · has been manufactured in conformity with the provisions of the Machinery Directive, 2006/42/EU Place: Lemvig Date: Signature: Knud Olsen, Senior Engineer Operator’s manual City Ranger 2250 Salt and sand spreader... -
Page 7: Technical Data
More wear and tear must be expected when spreading gravel rather than salt and sand. Extra equipment: 09723170 Cover Operator’s manual City Ranger 2250 Salt and sand spreader... -
Page 8: Operator's Manual
The salt and sand spreader must be lined up with the centre of the machine. The salt and sand spreader must be empty before being fitted or removed. Cleaning the couplings Mounting the salt and sand spreader Operator’s manual City Ranger 2250 Salt and sand spreader... - Page 9 Removing the salt and sand spreader: Follow the procedure for fitting in reverse order. Turn locking handle Operator’s manual City Ranger 2250 Salt and sand spreader...
-
Page 10: Start-Up
The spread quantity can be adjusted at the rear of the salt and sand spreader. Turn handle. (Picture 3) Turn handle a. Turn the feed plate clockwise to reduce the supply. b. Turn the feed plate anti-clockwise to increase the supply. Operator’s manual City Ranger 2250 Salt and sand spreader... -
Page 11: Application
The salt and sand spreader may only be used with the City Ranger 2250. The salt and sand spreader must not be used to manure or fertilise fields, or to spread lime. It must not be used to store corrosive materials. Operator’s manual City Ranger 2250 Salt and sand spreader... -
Page 12: Service And Maintenance
If the salt and sand spreader is to be stored for long periods or when the season is over, it is important to clean it to prevent rust from forming. Operator’s manual City Ranger 2250 Salt and sand spreader... -
Page 13: Conditions
The warranty period for the materials and manufacture of this salt and sand spreader is 12 months from the date of purchase. In the case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs without charge for materials and working hours in accordance with the terms and conditions listed below. -
Page 14: Complaints
2. Remove all plastic and rubber parts and dispose of. 3. After the parts mentioned have been removed, the machine is ready to be handed over to one of your local approved scrap merchants. 14 14 Operator’s manual City Ranger 2250 Salt and sand spreader... -
Page 15: Wearing Parts
Wearing parts 5.1 Wearing parts - City Ranger 2250 salt and sand spreader 80600010 Complete Stirrer Set 09923630 Lower bushing part 41110100 Spreader adjusting plate 09923620 Shaft 41203520 Spreader housing 09923610 Upper bushing part 41203510 Base plate 09723170 Cover 41108300 Stirrer arm... - Page 16 Wearing parts 5.1 Wearing parts - City Ranger 2250 salt and sand spreader 01700030 Top bearing 01700260 Bottom bearing 09722680 Spreader plate 16 16 Operator’s manual City Ranger 2250 Salt and sand spreader...
-
Page 17: Notes
Notes 17 17 Operator’s manual City Ranger 2250 Salt and sand spreader... - Page 18 Notes 18 18 Operator’s manual City Ranger 2250 Salt and sand spreader...
- Page 19 Notes 19 19 Operator’s manual City Ranger 2250 Salt and sand spreader...
- Page 20 Egholm A/S Transportvej 27 7620 Lemvig T. +45 97 81 12 05 F. +45 97 81 12 10 www.egholm.eu info@egholm.dk 70101301-01 EN...
