Swing-N-Slide WS 8338 Instructions

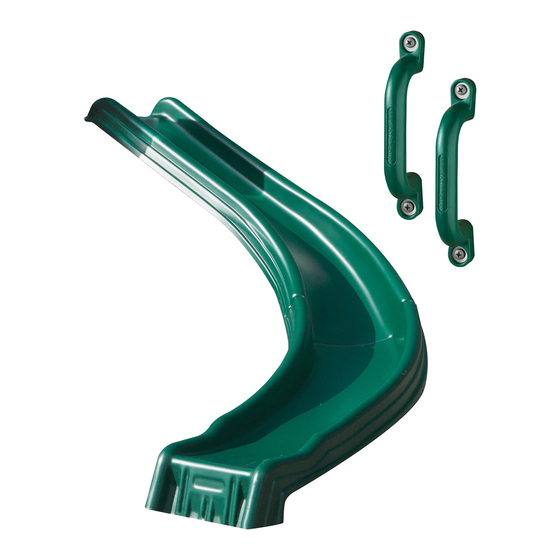

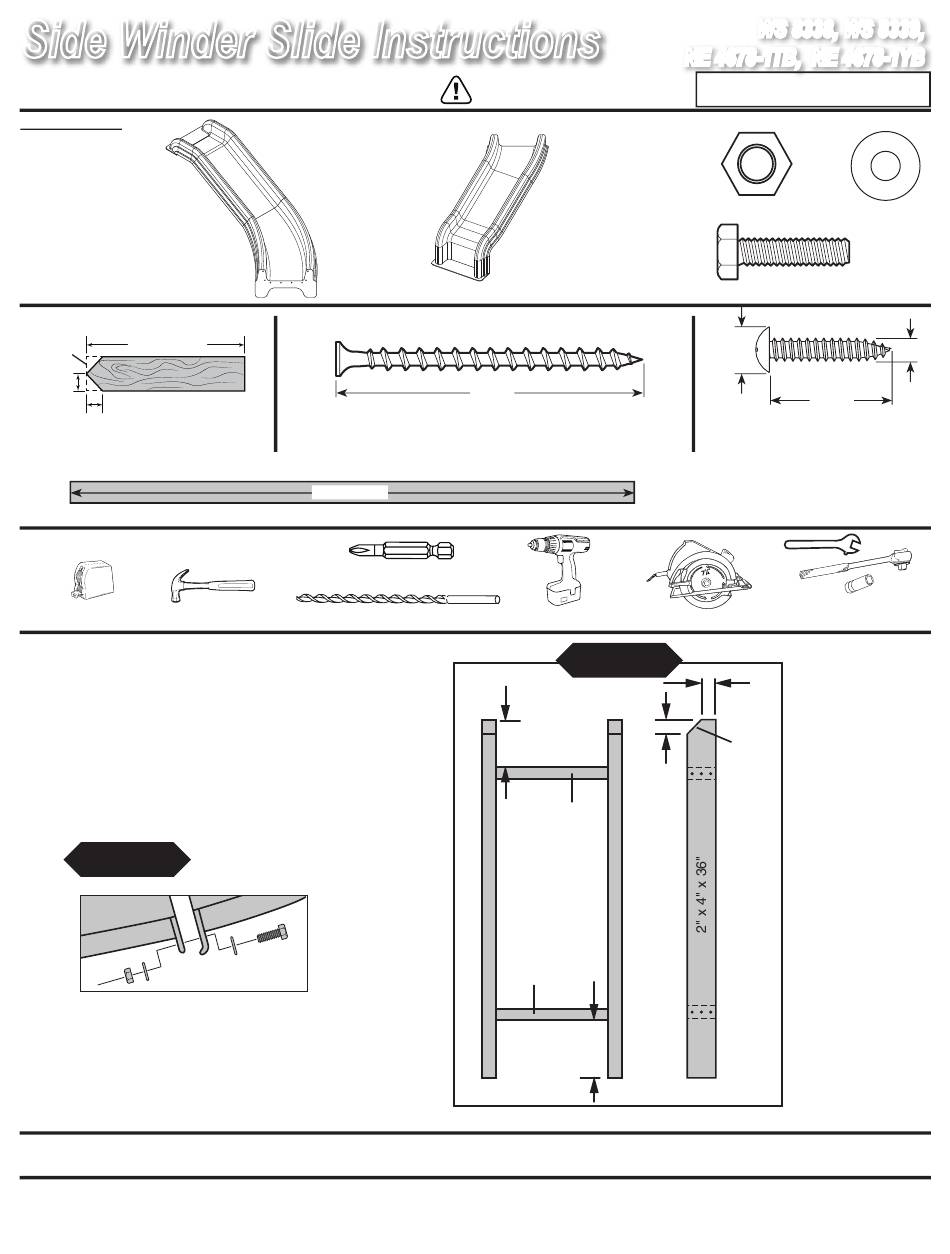

Side Winder Slide Instructions
Fits 48" or 60" (121,9 cm or 152,4 cm) Deck Height
KIT INCLUDES:
x1
Not Included In Kit:
17" (43,1 cm)
Cut
1-3/4"
(4,4 cm)
1-3/4" (4,4 cm)
Stake
2" x 4" x 17" (5,1 x 10,2 x 43,1 cm)
Use Pressure-Treated Wood
x1
Tools Required:
Tape Measure
Hammer
ASSEMBLY STEPS
1. Cut lumber as indicated in Fig. 1. Assembly requires (2) 36" legs,
(2) 15" cross supports and (1) 17'' stake. Angle the tops of the (2)
36" legs as indicated.
2. Assemble the slide support using (3) 2-1/2'' Deck Screws at
each joint.
3. Assemble the slide halves with (1) bolt, (2) washers and (1) loc
nut
at each hole as indicated in Fig. 2.
Fig. 2
Weight Limit: 250 lbs
For children 2-10 years of age
Specifi cations subject to change without notice.
Manufactured for: Swing-N-Slide® • 1212 Barberry Drive • Janesville, Wisconsin 53545 • USA • 1-800-888-1232 • www.swing-n-slide.com
Made in USA • Printed in USA
x1
x12
x1
Screw size should be a #8 thread size minimum
and coated for use with treated wood.
144' (366 cm)
Phillips Bit
1/8" & 1/4" Drill Bits
WARNING: Assembly by adult.
AVERTISSEMENT: L'assemblage dolt être exécuté par un adulte.
ADVERTENCIA: El ensamblaje lo debe hacer un adulto.
WARNING: ASSEMBLY BY ADULT.
WARNING: ASSEMBLY BY ADULT
Deck Screw
2-1/2"
(6,3 cm)
Slide Support Lumber
2" x 4" x 12' (5,1 x 10,2 x 366 cm)
Use Pressure-Treated Wood
Electric Drill
Fig. 1
8"
2" x 4" x 15"
2" x 4" x 15"
12"
1
WS 8338, WS 8339,
NE 4678-1TB, NE 4678-1YB
FOR PRIVATE USE ONLY
DO NOT USE IN PUBLIC SETTNGS!
x8 x19
Hex Bolt
x8
Truss Screw
1/2"
(12,7 mm)
x6
1-1/4"
(3,2 cm)
Screw must be to sizes shown at a
minimum. Do not use a screw size
shorter than 1-1/4" (3,2 cm) long.
Socket Wrench set /
Circular Saw
Wrenches
1"
Cut
1-1/2"
LDR 02-21-2019
1/4"
(6 mm)
LA 9435
