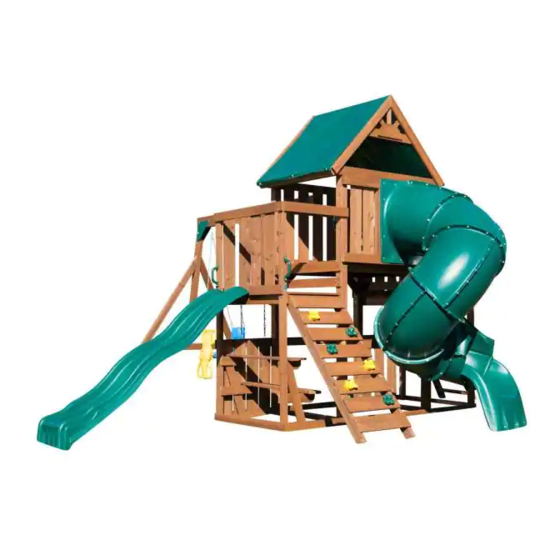

Swing-N-Slide WS 8358 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Swing-N-Slide Manuals
  4. Play Sets & Playground Equipment
  5. WS 8358
  6. Assembly instructions manual

Swing-N-Slide WS 8358 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
WS 8358
IMPORTANT!!
PLEASE READ BEFORE BEGINNING ASSEMBLY!!
Please make sure all lumber, hardware and accessory parts are accounted for.
If you are missing anything, please DO NOT RETURN to the store where purchased.
Please call our Customer Service Department at the number below.
ASSEMBLY INSTRUCTIONS
LDR 03-06-2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS 8358 and is the answer not in the manual?

Questions and answers

Related Manuals for Swing-N-Slide WS 8358

Summary of Contents for Swing-N-Slide WS 8358

  • Page 1 WS 8358 IMPORTANT!! PLEASE READ BEFORE BEGINNING ASSEMBLY!! Please make sure all lumber, hardware and accessory parts are accounted for. If you are missing anything, please DO NOT RETURN to the store where purchased. Please call our Customer Service Department at the number below.
  • Page 4 6 ft. 6 ft. Denotes Use Zone with Protective Surfacing L+6 ft. 6 ft. Denotes Use Zone with Protective Surfacing 6 ft. 6 ft. 6 ft. Use Zone for Single-Axis Swings Use Zone for Multi-Axis Swings...
  • Page 5 PLAYSET SAFETY ZONE 28'-0" 14'-0" 14'-0" 6'-0" 28'-5 15/16" 16'-5 15/16" 6'-0" 6'-0" 6'-0" 6'-0" 16'-7 1/4" 30'-7 3/16" MINIMUM USE ZONE FOR PLAY EQUIPMENT SHALL EXTEND NO LESS THAN 72” FROM ALL SIDES OF THE PLAY STRUCTURE. SWING USE ZONE EXTENDS NO LESS THAN 168”. SWINGS MUST HAVE A MINIMUM CLEARANCE OF 8”...

  • Page 6: Tools Required

    REMEMBER- If you are missing anything, please DO NOT RETURN to the store where purchased. Contact our Customer Service Department at 1-800-888-1232 or email us at: service@swing-n-slide.com For ease in inventorying your wooden playset parts all have been marked with a part number. Look for the part number typically located on the end of the part.

  • Page 7: Tower Components

    (4) [PF 6062] 1’’ x 3-3/8’’ x 42-1/2’’ ROOF A-FRAME TOWER COMPONENTS (7) [PF 6008] 3/4’’ x 5-3/8’’ x 42’’ WS 8358 (2) [PF 6013] 5/8’’ x 5-3/8’’ x 22-3/4’’ ROCKWALL BOARD (10) [PF 6000] 5/8’’ x 5-3/8’’ x 33-3/4’’...
  • Page 8 TOWER MODULE SA6000 / SA 6081 /SA6022 COMPONENTS CONT. STD Swing Seat (x2) Wind Rider Handle (x1) Wind Rider Seat (x1) Quick Link (x8) 58” Dipped Chain (x4) 51” Chain (x4) Beam Clamp Slotted (x6) Climbing Rock (x6) Anchor It Strap (x4) Anchor It (x4) (x1) (x1)
  • Page 9 TOWER MODULE SA6000 / SA 6081 /SA6022 HARDWARE 1/4’’ Washer (x16) 5/16” Washer (x24) 5/16” Loc Nut (x9) 5/16’’ Loc Washer (x12) 5/16” Wood Loc Washer (x3) #12 x 3/4” Truss Screw (x14) 3/16” Tarp Washer (x7) 1/4’’ x 1-3/4” Pan Screw (x4) 1/4’’...

  • Page 10: Board List

    TERRACE MODULE SA6001 / SA 6031 x2 BOARD LIST (1) [PF 6061] 1-1/2’’ x 1-1/2’’ x 40’’ (2) [PF 6028] 1-3/8’’ x 3’’ x 79’’ (2) [PF 6026] 1’’ x 3-3/8’’ x 42’’ (3) [PF 6005] 3/4’’ x 3-3/8’’ x 42’’ (4) [PF 6025] 3/4’’...
  • Page 11 LADDER MODULE SA6004 PICNIC TABLE MODULE SA6018 BOARD LIST BOARD LIST (1) [PF 6031] 1-3/8’’ x 3-3/8’’ x 52-3/4’’ LADDER SUPPORT-L (1) [PF 6040] 1’’ x 5-3/8’’ x 41-1/2’’ BENCH (1) [PF 6030] 1-3/8’’ x 3-3/8’’ x 52-3/4’’ LADDER SUPPORT-R (2) [PF 6133] 3/4’’...
  • Page 12 TURBO TUBE SLIDE Five Foot Turbo Slide (x1) BOARD LIST (2) [PF 6144] 1-3/8’’ x 3-3/8’’ x 47-1/2’’ (1) [PF 6143] 1-3/8’’ x 3-3/8’’ x 46’’ (1) [PF 6142] 1-3/8’’ x 3-3/8’’ x 30-5/8’’ (1) [PF 6141] 1-3/8’’ x 3-3/8’’ x 24-5/8’’ (1) [PF 6140] 1-3/8’’...
  • Page 13 STEP 1 6’’ 47-1/2’’ 2-1/2’’ Screws Flush 6’’ 2-1/2’’ Screws T-Nut Small 2-1/2’’ Screws 5/16-18 X 4’’ Hex Head Bolt 5/16’’ Washer 5/16’’Loc-Washer 59-1/4’’ FRAME A 2-1/2’’ Screws 1-1/2’’ JOINTS 2-1/2” Deck Screw (x14) 1. Assemble Frame A as shown above. Note: Tap each T-Nut into its pre-drilled hole until the metal tangs sink fully into the wood.
  • Page 14 STEP 2 6’’ 47-1/2’’ 2-1/2’’ Screws Flush 6’’ 2-1/2’’ Screws T-Nut Small 2-1/2’’ Screws 5/16-18 X 4’’ Hex Head Bolt 5/16’’ Washer 5/16’’Loc-Washer 2-1/2’’ Screws 2-1/2’’ Screws 59-1/4’’ 31’’ FRAME B 2-1/2’’ Screws 1-1/2’’ Hint!! Use parts from your Tower Box. BOTH SIDES 2-1/2”...
  • Page 15 STEP 3 Check to make sure struc- 2-1/2’’ Screws 2-1/2’’ Screws ture is square Flush 2-1/2’’ Screws 2-1/2’’ Screws 59-1/4’’ Flush 2-1/2’’ Screws NOTE: Board mounts 2-1/2’’ Screws to inside of upright. 2-1/2’’ Screws FRAME A 2-1/2” Deck Screw (x16) 1.
  • Page 16 STEP 4 2-1/2’’ Screws Check to make sure struc- ture is square 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws FRAME B NOTE: Board mounts to inside of upright. 2-1/2’’ Screws FRAME A 2-1/2” Deck Screw (x16) 1. Attach Frame A to Frame B as shown.
  • Page 17 STEP 5 1-3/4’’ Screws Per Board Flush PF 6149 1-3/8’’ x 3-3/8’’ x 15-1/2’’ DECK SUPPORT Flush 1-3/4’’ Screw per joint (4) 3’’ Screw NOTE: PRE-DRILLED HOLES 1-3/4” Deck Screw (x6) 3” Deck Screw (x4) 1. Install Deck Supports as shown.
  • Page 18 STEP 6 PF 6003 3/4’’ x 3-3/8’’ x 35-7/8’’ 1-3/4’’ Screws 2-1/2’’ Screws 1-3/4’’ Screws PF 6003 3/4’’ x 3-3/8’’ x 35-7/8’’ 2-1/2’’ Screws PF 6011 1’’ x 3/8’’ x 47-1/2’’ 16-1/2’’ PF 6011 1’’ x 3/8’’ x 47-1/2’’ 16-1/2’’ 1-3/4”...
  • Page 19 STEP 7 PF 6008 3/4’’ x 5-3/8’’ x 42’’ 1-3/4’’ Screws per board 1-3/4” Deck Screw (x42) 1. Install Deck Boards as shown. NOTE: Standard gap between deck boards is 3/8’’.
  • Page 20 STEP 8 Check to make sure struc- ture is square 47-1/4’’ FRAME A 2-1/2’’ Screws 5/16-18 X 4’’ Hex Head Bolt 5/16’’Loc-Washer 5/16’’ Washer T-Nut Hint!! Use parts from your Terrace Boxes. Small 2-1/2” Deck Screw (x8) 1. Install Deck Support Board as shown.
  • Page 21 STEP 9 2’’ Screws Check to make sure struc- ture is square Flush 2’’ Screws 5/16-18 X 2’’ Hex Head Bolt 47-1/4’’ 5/16’’Loc-Washer 5/16’’ Washer 2’’ Screws 2’’ Screws T-Nut Small 2’’ Screws Flush FRAME C AND D 2” Deck Screw (x16) 1.
  • Page 22 STEP 10 Flush With Outside 2-1/2’’ Screws Face of 1-3/8’’ x 3’’ Flush With Check to make sure struc- ture is square Top of Flush With Frame Flush With Top of Outside Frame Face of 1-3/8’’ x 3’’ 2-1/2’’ Screws 2-1/2’’...
  • Page 23 STEP 11 Flush With Outside Face of 2-1/2’’ Screws 1-3/8’’ x 3’’ Check to make sure struc- Flush With ture is square Top of Flush With Frame Outside Flush With Face of Top of 1-3/8’’ x 3’’ Frame 2-1/2’’ Screws 2-1/2’’...
  • Page 24 STEP 12 Check to make sure struc- ture is square 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws 79’’ 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws FRAME D FRAME C 2-1/2’’ Screws 2-1/2” Deck Screw (x26) 1. Attach Frame C Frame D to Tower as shown.
  • Page 25 STEP 13 PF 6150 3/4’’ x 3-3/8’’ x 24-3/4’’ Check to make sure struc- ture is square 10-5/8’’ 10-5/8’’ PF 6150 3/4’’ x 3-3/8’’ x 24-3/4’’ PF 6150 3/4’’ x 3-3/8’’ x 24-3/4’’ TOP VIEW 1-3/4’’ Screws 1-3/4’’ Screws 1-3/4’’ Screws PF 6061 1-1/2’’...
  • Page 26 STEP 14 PF 6135 3/4’’ x 5-3/8’’ x 26-1/4’’ Note: Holes 1-7/8’’ From Edge on This Side PF 6135 3/4’’ x 5-3/8’’ x 26-1/4’’ 1-3/4’’ Screws per board All Boards 1-3/4’’ Screws per board Flush Note: Holes 1-7/8’’ From Edge on This Side 1-3/4”...
  • Page 27 STEP 15 PF 6005 3/4’’ x 3-3/8’’ x 42’’ 2-1/2’’ Screws 53-7/8’’ PF 6005 3/4’’ x 3-3/8’’ x 42’’ 53-7/8’’ 2-1/2’’ Screws 2-1/2” Deck Screw (x12) 1. Attach Gap Filler Boards as shown.
  • Page 28 STEP 16 PF 6022 3/4’’ x 3-3/8’’ x 19-1/2’’ 2’’ Screws 50-5/8’’ PF 6022 3/4’’ x 3-3/8’’ x 19-1/2’’ 2’’ Screws 50-5/8’’ PF 6005 3/4’’ x 3-3/8’’ x 42’’ 2” Deck Screw (x12) 1. Install Barrier Support Boards as shown.

  • Page 29: Inside View

    STEP 17 2-7/8’’ (2) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ 30mm Screws per board Panel Bracket 3/4’’ Pan Screws #12 x 3/4” Pan Screw (x4) INSIDE VIEW 30mm Deck Screw (x8) 1. Install Barrier Boards as shown.
  • Page 30 STEP 18 (2) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ 2-7/8’’ 30mm Screws per board Panel Bracket 3/4’’ Pan Screws INSIDE VIEW #12 x 3/4” Pan Screw (x8) 30mm Deck Screw (x8) 1. Install Barrier Boards as shown.
  • Page 31 STEP 19 PF 6007 3/4’’ x 3-3/8’’ x 47-1/2’’ 2-1/2’’ Screws (2) PF 6025 3/4’’ x 3-3/8’’ x 29-1/4’’ 2-1/2’’ Screws 2-1/2’’ Screws 50-5/8’’ 2-1/2’’ Screws PF 6023 3/4’’ x 3-3/8’’ x 22-1/2’’ 62-5/8’’ 2-1/2’’ Screws 2-1/2” Deck Screw (x19) 1.
  • Page 32 STEP 20 1’’ 1’’ 3-1/8’’ 3-1/8’’ 1-5/8’’ PF 6172 5/8’’ x 3-3/8’’ x 11-1/2’’ PF 6001 5/8’’ x 5-3/8’’ x 9-1/4’’ PRE-DRILL (4) 1/8’’ 1/2’’ GAP 1/2’’ GAP HOLES PF 6172 5/8’’ x 3-3/8’’ x 11-1/2’’ 30mm Screws 17-3/8’’ per board PF 6172 5/8’’...
  • Page 33 STEP 21 1-1/4’’ (6) PF 6000 5/8’’ x 5-3/8’’ x 33-3/4’’ 1-1/4’’ GAPS BETWEEN BOARDS 30mm Screws 2-1/8’’ per board (3) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ 2-1/8’’ GAPS BETWEEN BOARDS 30mm Screws per board 30mm Screws per board Panel 3/4’’...
  • Page 34 STEP 22 (3) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ 2-1/8’’ GAPS BETWEEN BOARDS 2-1/8’’ 30mm Screws per board (3) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ 2-1/8’’ GAPS BETWEEN BOARDS 2-1/8’’ 30mm Screws per board 30mm Deck Screw (x24) 1.
  • Page 35 STEP 23 2-1/2’’ Screws PF 6144 1-3/8’’ x 3-3/8’’ x 47-1/2’’ 62-5/8’’ 2-1/2’’ Screws 2-1/2’’ Screws PF 6144 1-3/8’’ x 3-3/8’’ x 47-1/2’’ 31’’ 2-1/2’’ Screws 2-1/2’’ Screws Flush PF 6143 1-3/8’’ x 3-3/8’’ x 46’’ 2-1/2’’ Screws Hint!! Use parts from your Tube Slide. 2-1/2”...
  • Page 36 STEP 24 (2) PF 6000 5/8’’ x 5-3/8’’ x 33-3/4’’ 1-1/4’’ GAPS BETWEEN BOARDS PF 6142 1-3/8’’ x 3-3/8’’ x 30-5/8’’ 30mm Screws per board 2-1/2’’ Screws 1-1/4’’ 23-5/8’’ 2-1/2” Deck Screw (x6) 30mm Deck Screw (x8) 1. Attach Slide Barrier Board as shown.
  • Page 37 STEP 25 PF 6140 1-3/8’’ x 3-3/8’’ x 23-5/8’’ 2-1/2’’ Screws PF 6178 1-3/8’’ x 2-5/8’’ x 23-5/8’’ 2-1/2’’ Screws FLUSH WITH INSIDE OF POST PF 6146 1-3/8’’ x 3-3/8’’ x 8-1/4’’ 2-1/2’’ Screws PF 6181 5/8’’ x 3-1/4’’ x 3-3/8’’ 2-1/2’’...
  • Page 38 STEP 26 Flush 2-1/2’’ Screws 31’’ Flush 2-1/2’’ Screws PF 6024 3/4’’ x 3-3/8’’ x 27-3/4’’ 2-1/2’’ Screws 2-1/2’’ Screws PF 6024 3/4’’ x 3-3/8’’ x 27-3/4’’ 2’’ 30mm Screws per board 1-5/8’’ 2’’ GAPS BETWEEN BOARDS (3) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ 30mm Screws per board (4) PF 6021 5/8’’...
  • Page 39 STEP 27 PF 6020 3’’ x 3’’ x 47-1/2’’ SWING BEAM SUPPORT TOP OF BEAM SUPPORT 84-1/2’’ FROM BOTTOM OF POST Loc Nut 5/16’’ Washer Wood Loc-Washer 5/16-18 X 6’’ Carriage Bolt 1. Install Swing beam support as shown.
  • Page 40 STEP 28 PF 6019 2-11/16’’x5-3/8’’x93’’ Swing Beam 5/16’’ T-Nut 5-1/2’’ Swing Large Hanger Beam Clamp (4) 1-1/4’’ Deck Screws Correct Orientation 1-1/4” Deck Screw (x24) 1. Attach Swing Hanger(s) to swing beam as shown. NOTE: Make certain hanger and plate are snug against the bottom of the swing beam, (Fig 5), before installing screws.
  • Page 41 STEP 29 PF 6018 2-11/16’’x3’’x62’’ A-Frame SB Support 5/16”-18 x 7” Hex Head Bolt 3’’ Screws 3’’ Screws 5/16” Washer 5/16” Washer 5/16” Loc Nut (2) PF 6017 1-3/8’’x3-3/8’’x83’’ A-Frame 5/16”-18 x 2-1/2” Hex Head Bolt 5/16” Loc Washer 5/16” Washer 5/16”...
  • Page 42 STEP 30 (2) Swing Beam Bracket 5/16”-18 x 3-1/2” Hex Head Bolt 5/16” Washer 5/16” Loc Nut 5/16”-18 x 3-1/2” 5/16” Washer Hex Head Bolt 5/16” Washer 5/16” Washer 5/16” Loc Nut 1. Attach Swing Beam Bracket to A-Frame & Swing Beam as shown.
  • Page 43 STEP 31 Beam Brace 5/16”-18 x 3 1/4” Hex Head Bolt 5/16” Loc Washer 5/16” Washer 5/16-18 T-Nut Small 1. Install Swing Beam Brace as shown.
  • Page 44 STEP 32 5/16”-18 x 6” 5/16”-18 x 8-1/2” Carriage Bolt Hex Head Bolt 5/16” Loc Washer 5/16” Washer 5/16” Wood Loc Washer 5/16-18 T-Nut Small 5/16” Washer 5/16” Loc Nut 1. Install Swing Beam as shown.
  • Page 45 STEP 33 (1) 3’’ Deck Screws 1-5/8’’ 1-5/8’’ 13-1/2’’ Check to make sure struc- ture is square PF 6058 5/8’’ x 3-3/8’’ x 30’’ (4) 30mm Deck Screws 3/4’’ CENTERED PF 6060 5/8’’ x 5-3/8’’ x 13’’ SUN (4) 30mm Screws 3”...
  • Page 46 STEP 34 (10) 30mm Screws (1) PF 6056 5/8’’ x 2’’ x 10’’ (2) PF 6059 5/8’’ x 2’’ x 7’’ Note: Place screws through A-Frame and CENTERED Note: PF 6053 into end of PF 6053 Rests on Top of 2-1/2’’...
  • Page 47 STEP 35 3/4’’ Offset 1-5/8’’ Screws Each Side Side View 1-5/8’’ Screws 1-5/8’’ Screws 1-5/8’’ Screws 1-5/8” Deck Screw (x12) Attach Roof Frame to Tower as shown.
  • Page 48 STEP 36 2’’ Screws 2’’ Screws 2” Deck Screw (x8) 1. Attach Roof Side Support Boards as shown.
  • Page 49 STEP 37 3/4’’ Screws 3/16’’ Tarp Washer 3/4” Pan Head Screw (x6) 3/16” Tarp Washer (x6) 1. Attach Tarp as shown.
  • Page 50 STEP 38 2-1/2’’ Screws per Rung (4) PF 6032 1’’ x 3-3/8’’ x 18-1/2’’ 2-1/2’’ Screws per Rung PF 6029 5/8’’ x 3-3/8’’ x 20-1/2‘’ FLUSH 2-1/2’’ Screws Hint!! Use parts from your Ladder Box. 2-1/2” Deck Screw (x20) 1. Assembly Ladder as shown.

  • Page 51: Underside View

    STEP 39 2-1/2’’ Screws Panel Bracket 3/4’’ Pan Screw UNDERSIDE VIEW 2-1/2” Deck Screw (x3) #12 x 3/4” Pan Screw (x4) 1. Attach Ladder to Tower as shown.
  • Page 52 STEP 40 ALIGN SCREWS WITH PRE DRILLS (1) PF 6013 5/8’’ x 5-3/8’’ x 22-3/4’’ ROCK WALL BOARD (6) PF 6389 5/8’’ x 5-3/8’’ x 22-3/4’’ ROCK WALL BOARD (4) 2’’ Deck Screws per board (1) PF 6013 5/8’’ x 5-3/8’’ x 22-3/4’’ ROCK WALL BOARD 2”...
  • Page 53 STEP 41 2-1/2’’ Screws per side Under Deck View 2-1/2” Deck Screw (x6) 1. Attach Rock Wall as shown.
  • Page 54 STEP 42 (2) 1/4’’ T-Nuts (2) 1-1/4’’ Hex Head Bolts (2) 1/4’’ Flat Washer Per Rock (2) 1/4’’ Loc-Washer Per Rock 1. Attach Climbing Rocks as shown.
  • Page 55 STEP 43 (2) PF 6039 3/4’’ x 3-3/8’’ x 9-3/4’’ (2) PF 6133 3/4’’ x 3-3/8’’ x 41-1/2’’ TABLE 2’’ Screws TABLE SUPPORT (2) PF 6037 3/4’’ x 3-3/8’’ x 15-3/4’’ 3’’ 3’’ BENCH SUPPORT 2’’ Screws 11-1/4’’ 1-1/4’’ Deck 1-1/4’’...
  • Page 56 STEP 44 1-5/8’’ Screws From Behind Deck Support (3) 1’’ Truss Screws Flush to Support Flush to Upright Underdeck View Grade 2” (2) 30mm Deck Screws PF 6009 1-3/8’’x3-3/8’’x17-1/4’’ Slide Stake 30mm Deck Screw (x8) 1” Truss Screw (x3) 1-5/8” Deck Screw (x4) Attach Slide Support Boards and Slide as shown.
  • Page 57 STEP 45 NOTE: Attach secondary handles at desired location 1/4” Washer 1/4’’ x 1-3/4” 11” Pan Screw to the top of the handle. Back View Front View 1/2” Pan Screw (x2) 1-3/4” Pan Screw (x8) 1. Attach Safety Handle and I.D. Tag as shown.
  • Page 58 STEP 46 Wind Rider 51” Un-Coated chain Loc-Nut 5/16’’ Flat Washer QuickLink 5/16’’ Flat Washer 5/16”-18 x 6-1/2” Hex Bolt QuickLink Wind-Rider Wind Rider Assembly 1. Insert Seat into Handle as shown in (Step1). Secure in place with hardware shown. Note: Make certain no more than two bolt threads protrude from the Loc-Nut once fully tightened.
  • Page 59 STEP 47 PLASTIC COATED END Swing Seat Assembly 1. Take one length of chain and place the outermost link of coated chain through the Quick Link as shown. 2. Place the Quick Link through the Grommet of the swing seat as shown. 3.
  • Page 60 STEP 48 1. Install Turbo Tube Slide as shown. NOTE: Turbo Tube Slide assembly detailed in instructions included with accessory.
  • Page 61 STEP 49 PF 6136 1-3/8’’ x 3-3/8’’ x 11-1/4’’ PF 6145 1-3/8’’ x 3-3/8’’ x 8-3/8’’ 2-1/2’’ Screws PF 6138 1-3/8’’ x 3-3/8’’ x 18’’ 2-1/2’’ Screws PF 6145 1-3/8’’ x 3-3/8’’ x 8-3/8’’ 2-1/2’’ Screws PF 6138 1-3/8’’ x 3-3/8’’ x 18’’ PF 6138 1-3/8’’...
  • Page 62 STEP 50 5/16” Washer Fold up Anchor-It Strap 1-1/2” Lag Screw Anchor-It 5/16’’ x 1-1/2” Lag Screw (x4) 2. Twist the Anchor-It into the ground until only the loop is exposed. 3. Place Anchor-It Strap thru loop, fold the ends together and attach to the unit as shown. Note: Keep as little play as possible using any of the holes in the strap that work best.
  • Page 63 Plastic Components, Chains, Hardware and Fasteners – 5 years. These items to be free from defects in workmanship and materials, under Swing-N-Slide® will repair, or at its discretion, replace any part within the stated warranty period which is defective in workmanship or Janesville, Wisconsin, 53545.
  • Page 64 Call our Customer Support Representatives 1-800-888-1232 Available Monday - Friday, 7am - 5pm (CST) Weekend support available April through July Technical support from experienced Swing-N-Slide customer service representatives who have actually built a swing set themselves. © Swing-N-Slide Inc. 2018 Printed in USA...
