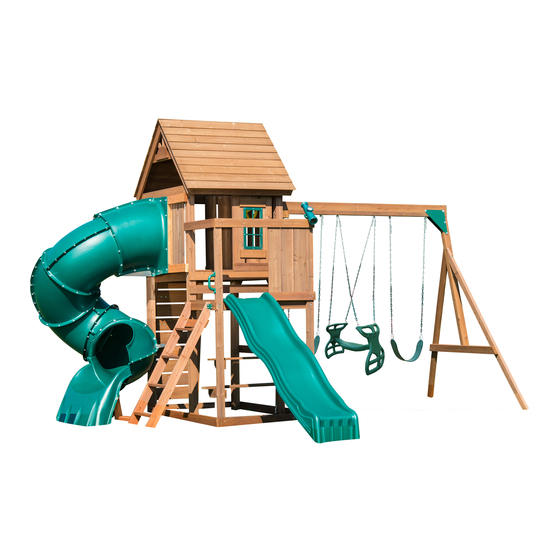

Swing-N-Slide WS 8345 Assembly Instructions Manual

Hide thumbs Also See for WS 8345:

Advertisement

Quick Links

Download this manual
WS 8345
IMPORTANT!!
PLEASE READ BEFORE BEGINNING ASSEMBLY!!
Please make sure all lumber, hardware and accessory parts are accounted for.
If you are missing anything, please DO NOT RETURN to the store where purchased.
Please call our Customer Service Department at the number below.
ASSEMBLY INSTRUCTIONS
LDR 03-02-2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS 8345 and is the answer not in the manual?

Questions and answers

Related Manuals for Swing-N-Slide WS 8345

Summary of Contents for Swing-N-Slide WS 8345

  • Page 1 WS 8345 IMPORTANT!! PLEASE READ BEFORE BEGINNING ASSEMBLY!! Please make sure all lumber, hardware and accessory parts are accounted for. If you are missing anything, please DO NOT RETURN to the store where purchased. Please call our Customer Service Department at the number below.
  • Page 4 6 ft. 6 ft. Denotes Use Zone with Protective Surfacing L+6 ft. 6 ft. Denotes Use Zone with Protective Surfacing 6 ft. 6 ft. 6 ft. Use Zone for Single-Axis Swings Use Zone for Multi-Axis Swings...
  • Page 5 PLAYSET SAFETY ZONE 14'-0" 6'-0" 6'-0" 16'-6" 28'-0" 30'-5" 6'-0" 6'-0" 6'-0" 14'-0" 6'-0" 28'-6" MINIMUM USE ZONE FOR PLAY EQUIPMENT SHALL EXTEND NO LESS THAN 72” FROM ALL SIDES OF THE PLAY STRUCTURE. SWING USE ZONE EXTENDS NO LESS THAN 168”. SWINGS MUST HAVE A MINIMUM CLEARANCE OF 8”...

  • Page 6: Tools Required

    REMEMBER- If you are missing anything, please DO NOT RETURN to the store where purchased. Contact our Customer Service Department at 1-800-888-1232 or email us at: service@swing-n-slide.com For ease in inventorying your wooden playset parts all have been marked with a part number. Look for the part number typically located on the end of the part.

  • Page 7: Board List

    (4) [PF 6062] 1’’ x 3-3/8’’ x 42-1/2’’ ROOF A-FRAME TOWER COMPONENTS (7) [PF 6008] 3/4’’ x 5-3/8’’ x 42’’ WS 8345 (2) [PF 6013] 5/8’’ x 5-3/8’’ x 22-3/4’’ ROCKWALL BOARD (10) [PF 6000] 5/8’’ x 5-3/8’’ x 33-3/4’’...
  • Page 8 TOWER MODULE SA6051 / SA6022 COMPONENTS CONT. Window Pane (x1) STD Swing Seat (x2) Safety Handle (x1) 5/16’’ x 5-1/2’’ Swing Hanger (x6) Climbing Rock (x6) Quick Link (x8) 58” Dipped Chain (x4) Beam Clamp Slotted (x6) 60’’ GliderChain (x4) Glider Seat (x1) Anchor It Strap (x4) Glider End (x2)
  • Page 9 TOWER MODULE SA6051 / SA6022 COMPONENTS CONT. Telescope (x1) Steering Wheel (x1) Steering Wheel Spacer (x1) 5/16”-18 x 3” Carriage Bolt (x1) Eye Bolt (x4) Coolwave Slide (x1)
  • Page 10 TOWER MODULE SA6051 / SA6022 HARDWARE 5/16-18 T-Nut (x28) Small 1/4’’ Loc Washer (x12) 1/4’’ T-Nut (x12) 5/16” Washer (x24) 1/4’’ Washer (x16) 5/16’’ Loc Washer (x12) #8 x 1/2” Pan Screw (x2) #12 x 3/4” Pan Screw (x14) 5/16-18 T-Nut (x6) 3/4”...
  • Page 11 TERRACE MODULE SA6031 BOARD LIST (1) [PF 6061] 1-1/2’’ x 1-1/2’’ x 40’’ (2) [PF 6028] 1-3/8’’ x 3’’ x 79’’ (2) [PF 6026] 1’’ x 3-3/8’’ x 42’’ (3) [PF 6005] 3/4’’ x 3-3/8’’ x 42’’ (4) [PF 6025] 3/4’’ x 3-3/8’’ x 29-1/4’’ (3) [PF 6024] 3/4’’...
  • Page 12 LADDER MODULE SA6032 PICNIC TABLE MODULE SA6018 BOARD LIST BOARD LIST (1) [PF 6030] 1-3/8’’ x 3-3/8’’ x 52-3/4’’ LADDER SUPPORT-L (1) [PF 6040] 1’’ x 5-3/8’’ x 41-1/2’’ BENCH (1) [PF 6031] 1-3/8’’ x 3-3/8’’ x 52-3/4’’ LADDER SUPPORT-R (2) [PF 6133] 3/4’’...
  • Page 13 TURBO TUBE SLIDE WOOD ROOF SA6035 BOARD LIST (18) [PF 6055] 1/2’’ x 5’’ x 47-1/2’’ SHINGLE (2) [PF 6061] 1-1/2’’ x 1-1/2’’ x 40’’ Five Foot Turbo Slide (x1) BOARD LIST HARDWARE (2) [PF 6144] 1-3/8’’ x 3-3/8’’ x 47-1/2’’ 1-5/8”...
  • Page 14 STEP 1 6’’ 47-1/2’’ 2-1/2’’ Screws Flush 6’’ 2-1/2’’ Screws T-Nut Small 2-1/2’’ Screws 5/16-18 X 4’’ Hex Head Bolt 5/16’’ Washer 5/16’’Loc-Washer 59-1/4’’ FRAME A 2-1/2’’ Screws 1-1/2’’ Hint!! Use parts from your Tower Box. BOTH SIDES 2-1/2” Deck Screw (x14) 1.
  • Page 15 STEP 2 6’’ 47-1/2’’ 2-1/2’’ Screws Flush 6’’ 2-1/2’’ Screws T-Nut Small 2-1/2’’ Screws 5/16-18 X 4’’ Hex Head Bolt 5/16’’ Washer 5/16’’Loc-Washer 2-1/2’’ Screws 59-1/4’’ 2-1/2’’ Screws 31’’ FRAME B 2-1/2’’ Screws 1-1/2’’ JOINTS 2-1/2” Deck Screw (x18) 1. Assemble Frame B as shown above. Note: Tap each T-Nut into its pre-drilled hole until the metal tangs sink fully into the wood.
  • Page 16 STEP 3 Check to make sure struc- 2-1/2’’ Screws ture is square Flush 2-1/2’’ Screws 59-1/4’’ Flush 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws FRAME A 2-1/2” Deck Screw (x14) 1. Attach support boards to Frame A as shown.
  • Page 17 STEP 4 2-1/2’’ Screws Check to make sure struc- ture is square 2-1/2’’ Screws 2-1/2’’ Screws FRAME B 2-1/2’’ Screws FRAME A 2-1/2’’ Screws 2-1/2” Deck Screw (x14) 1. Attach Frame A to Frame B as shown.
  • Page 18 STEP 5 PF 6149 1-3/8’’ x 3-3/8’’ x 15-1/2’’ DECK SUPPORT Flush NOTE: Insert Hardware From Inside Flush 1-3/4’’ Screw per joint (4) 3’’ Screw NOTE: Pre-Drilled Holes 1-3/4” Deck Screw (x6) 3” Deck Screw (x4) 1. Install Deck Supports as shown.
  • Page 19 STEP 6 PF 6003 3/4’’ x 3-3/8’’ x 35-7/8’’ 1-3/4’’ Screws 1-3/4’’ Screws PF 6003 3/4’’ x 3-3/8’’ x 35-7/8’’ PF 6011 1’’ x 3-3/8’’ x 47-1/2’’ 2-1/2’’ Screws 16-1/2’’ PF 6011 1’’ x 3-3/8’’ x 47-1/2’’ 16-1/2’’ 1-3/4” Deck Screw (x12) TOP VIEW 2-1/2”...
  • Page 20 STEP 7 PF 6008 3/4’’ x 5-3/8’’ x 42’’ 1-3/4’’ Screws per board 1-3/4” Deck Screw (x42) 1. Install Deck Boards as shown. NOTE: Standard gap between deck boards is 3/8’’.
  • Page 21 STEP 8 Flush 2-1/2’’ Screws PF 6002 PF 6144 3/4’’ x 3-3/8’’ x 22-1/2’’ 1-3/8’’ x 3-3/8’’ x 47-1/2’’ 2-1/2’’ Screws Flush 2-1/2’’ Screws 2-1/2’’ Screws Flush PF 6007 62-5/8’’ 3/4’’ x 3-3/8’’ x 47-1/2’’ PF 6172 2-1/2’’ Screws 5/8’’ x 3-3/8’’ x 11-1/2’’ 2-1/2’’...
  • Page 22 STEP 9 Check to make sure struc- ture is square 47-1/4’’ 2-1/2’’ Screws FRAME A 5/16-18 X 4’’ Hex Head Bolt 5/16’’Loc-Washer 5/16’’ Washer Hint!! Use parts from your Terrace Box. T-Nut Small 2-1/2” Deck Screw (x4) 1. Install Deck Support Board as shown.
  • Page 23 STEP 10 Check to make sure struc- ture is square 2’’ Screws Flush 2’’ Screws 2’’ Screws Flush 2’’ Screws FRAME C 2” Deck Screw (x12) 1. Assemble Frame C as shown.
  • Page 24 STEP 11 Check to make sure struc- ture is square 5/16-18 X 2’’ Hex Head Bolt 47-1/4’’ 5/16’’Loc-Washer 5/16’’ Washer 2’’ Screws T-Nut Small 2” Deck Screw (x4) 1. Install Deck Support Board as shown.
  • Page 25 STEP 12 Flush 2-1/2’’ Screws Check to make sure struc- ture is square Flush 2-1/2’’ Screws 2-1/2’’ Screws Flush 50-5/8’’ 2-1/2’’ Screws Flush FRAME C 2-1/2’’ Screws 2-1/2” Deck Screw (x10) 1. Install Frame Support Boards as shown.
  • Page 26 STEP 13 Check to make sure struc- ture is square 2-1/2’’ Screws 2-1/2’’ Screws 2-1/2’’ Screws 79’’ 2-1/2’’ Screws 2-1/2’’ Screws FRAME C 2-1/2” Deck Screw (x13) 1. Attach Frame C to Tower as shown.
  • Page 27 STEP 14 1-3/4’’ Screws 1-3/4’’ Screws PF 6150 3/4’’ x 3-3/8’’ x 24-3/4’’ PF 6150 3/4’’ x 3-3/8’’ x 24-3/4’’ 1-3/4’’ Screws 1-3/4’’ Screws PF 6150 3/4’’ x 3-3/8’’ x 24-3/4’’ 1-3/4’’ Screws PF 6061 1-1/2’’ x 1-1/2’’ x 40’’ 1-3/4’’...
  • Page 28 STEP 15 NOTE: Hole Locations PF 6135 3/4’’ x 5-3/8’’ x 26-1/4’’ 1-3/4’’ Screws per board 1-3/4” Deck Screw (x36) 1. Install Deck Boards as shown. NOTE: Standard gap between deck boards is 7/16’’.
  • Page 29 STEP 16 2’’ Screws PF 6022 3/4’’ x 3-3/8’’ x 19-1/2’’ Flush 50-5/8’’ 2’’ Screws PF 6025 3/4’’ x 3-3/8’’ x 29-1/4’’ 2’’ Screws 2” Deck Screw (x8) 1. Install Barrier Support Boards as shown.
  • Page 30 STEP 17 2-1/2’’ Screws PF 6004 3/4’’ x 3-3/8’’ x 42’’ PF 6005 3/4’’ x 3-3/8’’ x 42’’ 2-1/2’’ Screws 5-3/8’’ 53-7/8’’ 2-1/2” Deck Screw (x12) 1. Attach Gap Filler Boards as shown.

  • Page 31: Inside View

    STEP 18 (3) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ 1-1/4’’ Screws per board ALL BARRIER BOARDS FLUSH 3/4’’ Pan Screws Panel Bracket #12 x 3/4” Pan Screw (x4) INSIDE VIEW 1-1/4” Deck Screw (x12) 1. Install Barrier Boards as shown.
  • Page 32 STEP 19 (4) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ 1/2’’ GAP BETWEEN 1-1/4’’ Screws BOARDS per board 1-1/4” Deck Screw (x16) 1. Attach Barrier Boards as shown.
  • Page 33 STEP 20 1’’ 1’’ 3-1/8’’ 3-1/8’’ 1-5/8’’ PF 6172 5/8’’ x 3-3/8’’ x 11-1/2’’ PF 6001 5/8’’ x 5-3/8’’ x 9-1/4’’ PRE-DRILL (4) 1/8’’ HOLES 1/2’’ GAP 1/2’’ GAP PF 6172 5/8’’ x 3-3/8’’ x 11-1/2’’ 30mm Screws 17-3/8’’ per board PF 6172 5/8’’...

  • Page 34: Interior View

    STEP 21 Flush PF 6000 5/8” x 5-3/8” x 33-3/4” 1-1/4’’ Screws per board Flush 1-1/4’’ Screws per board Panel Bracket 3/4’’ Pan Screws INTERIOR VIEW 1-1/4” Deck Screw (x20) #12 x 3/4” Pan Screw (x4) Install small barrier and Window Panel.
  • Page 35 STEP 22 PF 6144 1-3/8’’ x 3-3/8’’ x 47-1/2’’ 2-1/2’’ Screws 2-1/2’’ Screws 1-1/4’’ GAP BETWEEN BOARDS 1-1/4’’ Screws per board (2) PF 6021 5/8’’ x 5-3/8’’ x 30-3/4’’ INTERIOR VIEW 1-1/4” Deck Screw (x8) Hint!! Use some parts from your Turbo Tube Lumber Box. 2-1/2”...
  • Page 36 STEP 23 PF 6020 3’’ x 3’’ x 47-1/2’’ SWING BEAM SUPPORT Loc Nut 5/16’’ Washer Wood Loc-Washer 5/16-18 X 6’’ Carriage Bolt 1. Install Swing beam support as shown.
  • Page 37 STEP 24 PF 6019 2-11/16’’x5-3/8’’x93’’ Swing Beam 5/16’’ T-Nut 5-1/2’’ Swing Large Hanger Beam Clamp (4) 1-1/4’’ Deck Screws Correct Orientation 1-1/4” Deck Screw (x24) 1. Attach Swing Hanger(s) to swing beam as shown. NOTE: Make certain hanger and plate are snug against the bottom of the swing beam, (Fig 5), before installing screws.
  • Page 38 STEP 25 PF 6018 2-11/16’’x3’’x62’’ A-Frame SB Support 5/16”-18 x 7” Hex Head Bolt 3’’ Screws 3’’ Screws 5/16” Washer 5/16” Washer 5/16” Loc Nut SIDE VIEW SIDE VIEW (2) PF 6017 1-3/8’’x3-3/8’’x83’’ A-Frame 5/16”-18 x 2-1/2” Hex Head Bolt 5/16”...
  • Page 39 STEP 26 (2) Swing Beam Bracket 5/16”-18 x 3-1/2” Hex Head Bolt 5/16” Washer 5/16” Loc Nut 5/16”-18 x 3-1/2” 5/16” Washer Hex Head Bolt 5/16” Washer 5/16” Washer 5/16” Loc Nut 1. Attach Swing Beam Bracket to A-Frame & Swing Beam as shown.
  • Page 40 STEP 27 Beam Brace 5/16”-18 x 3 1/4” Hex Head Bolt 5/16” Loc Washer 5/16” Washer 5/16-18 T-Nut Small 1. Install Swing Beam Brace as shown.
  • Page 41 STEP 28 5/16”-18 x 8-1/2” Hex Head Bolt 5/16”-18 x 6” Carriage Bolt 5/16” Loc Washer 5/16” Washer 5/16” Wood Loc Washer 5/16-18 T-Nut Small 5/16” Washer 5/16” Loc Nut 1. Install Swing Beam as shown.
  • Page 42 STEP 29 PF 6000 5/8’’ x 5-3/8’’ x 33-3/4’’ (4) 1-1/4’’ Screws per board 1-1/4” Deck Screw (x24) 1. Install Barrier Boards as shown. (NOTE: Standard gap between boards is 1/2’’.)
  • Page 43 STEP 30 (1) 3’’ Deck Screws 1-5/8’’ 1-5/8’’ 13-1/2’’ Check to make sure struc- ture is square PF 6058 5/8’’ x 3-3/8’’ x 30’’ (4) 1-1/4’’ Deck Screws 3/4’’ CENTERED PF 6060 5/8’’ x 5-3/8’’ x 13’’ SUN (2) 30mm Screws 30mm Deck Screw (x4) 3”...
  • Page 44 STEP 31 (4) 30mm (6) 1-1/4’’ Screws Screws (1) PF 6056 5/8’’ x 2’’ x 10’’ (2) PF 6059 5/8’’ x 2’’ x 7’’ CENTERED 2-1/2’’ Screws PF 6053 1-3/8’’ x 3-3/8’’ x 43-1/2’’ 2-1/2’’ Screws 1-1/4” Deck Screw (x12) 30mm Deck Screw (x8) 2-1/2”...

  • Page 45: Underside View

    (5) PF 6055 1/2’’ x 5’’ x 47-1/2’’ SHINGLE STEP 32 Per Side 1’’ OVERHANG BOTH SIDES (4) 1-5/8’’ Deck Screws per board (1) 1-5/8’’ Deck Screw per board (2) PF 6061 1-1/2’’ x 1-1/2’’ x 40’’ (4) PF 6055 1/2’’ x 5’’ x 47-1/2’’ SHINGLE Per Side (2) PF 6061 1-1/2’’...
  • Page 46 STEP 33 Flush At Ends 1-5/8’’ Screws 1-5/8’’ Screws 1-5/8’’ Screws 1-5/8’’ Screws NOTE: 1-5/8’’ Screws Secure Roof from the INSIDE 1-5/8” Deck Screw (x12) 1. Attach Roof Frame to Tower as shown. NOTE: Secure roof from inside the tower.
  • Page 47 STEP 34 2’’ Screws 2’’ Screws 2” Deck Screw (x8) 1. Attach Roof Side Support Boards as shown.
  • Page 48 STEP 35 2-1/2’’ Screws per Rung 2-1/2’’ Screws per Rung (4) PF 6032 1’’ x 3-3/8’’ x 18-1/2’’ PF 6029 5/8’’ x 3-3/8’’ x 20-1/2‘’ Flush 2-1/2’’ Screws Hint!! Use parts from your Ladder Box. 2-1/2” Deck Screw (x20) 1. Assembly Ladder as shown.
  • Page 49 STEP 36 Panel Panel Bracket Bracket 3/4’’ 3/4’’ Pan Screw Pan Screw #12 x 3/4” Pan Screw (x8) 1. Attach Ladder to Tower as shown.
  • Page 50 STEP 37 ALIGN SCREWS WITH PRE DRILLS (1) PF 6013 5/8’’ x 5-3/8’’ x 22-3/4’’ ROCKWALL BOARD (6) PF 6389 5/8’’ x 5-3/8’’ x 22-3/4’’ ROCKWALL BOARDS (4) 2’’ Deck Screws per board (1) PF 6013 5/8’’ x 5-3/8’’ x 22-3/4’’ ROCKWALL BOARD 2”...
  • Page 51 STEP 38 Panel Panel Bracket Bracket 3/4’’ 3/4’’ Pan Screw Pan Screw #12 x 3/4” Pan Screw (x8) 1. Attach Rock Wall as shown.
  • Page 52 STEP 39 (2) 1/4’’ T-Nuts (2) 1-1/4’’ Hex Head Bolts (2) 1/4’’Flat Washer Per Rock (2) 1/4’’ Loc-Washer Per Rock 1. Attach Climbing Rocks as shown.
  • Page 53 STEP 40 (2) PF 6039 3/4’’ x 3-3/8’’ x 9-3/4’’ TABLE SUPPORT (2) PF 6037 3/4’’ x 3-3/8’’ x 15-3/4’’ BENCH SUPPORT 1-1/4’’ Screws 1-1/4’’ Screws 3’’ 3’’ Flush 11-1/4’’ Flush 2-1/2’’ Screws 6-7/8’’ 6-7/8’’ (2) PF 6038 3/4’’ x 3-3/8’’ x 26-7/8’’ PICNIC TABLE LEG 25’’...
  • Page 54 STEP 41 Flush PF 6024 3/4’’ x 3-3/8’’ x 27-3/4’’ 2-1/2’’ Screws per side 2-1/2” Deck Screw (x4) 1. Install Barrier Safety Board as shown.
  • Page 55 STEP 42 NOTE: PLACE SLIDE SO 1’’ TRUSS SCREWS GO INTO DECK SUPPORT BOARD (2) 30mm Deck Screws Grade 2” PF 6009 1-3/8’’x3-3/8’’x17-1/4’’ Slide Stake 30mm Deck Screw (x8) 1” Truss Screw (x3) Attach Slide Support Boards and Slide as shown.
  • Page 56 STEP 43 Flush PF 6143 1-3/8’’ x 3-3/8’’ x 46’’ 2-1/2’’ Screws 31’’ 2-1/2’’ Screws Hint!! Use parts from your Turbo Tube Slide Box. 2-1/2” Deck Screw (x5) 1. Attach Slide Support Boards as shown.
  • Page 57 STEP 44 PF 6140 1-3/8’’ x 3-3/8’’ x 23-5/8’’ 2-1/2’’ Screws Flush Flush 24-5/8’’ PF 6142 1-3/8’’ x 3-3/8’’ x 30-5/8’’ 2-1/2’’ Screws PF 6178 1-3/8’’ x 2-5/8’’ x 23-5/8’’ 2-1/2’’ Screws 2-1/2” Deck Screw (x17) 1. Install Interior Support Boards as shown, (Roof slats removed for clarity).
  • Page 58 STEP 45 FLUSH WITH OUSTIDE POST PF 6141 1-3/8’’ x 3-3/8’’ x 24-5/8’’ PF 6146 1-3/8’’ x 3’’ x 8-1/4’’ 2-1/2’’ Screws 2-1/2’’ Screws NOTE: CUT PF 6023 3/4’’ x 3-3/8’’ x 22-1/2’’ DOWN TO 3’’ FLUSH DISCARD PF 6137 1-3/8’’ x 3’’ x 13’’ STACK WITH PF 6181 5/8’’...
  • Page 59 STEP 46 1. Install Turbo Tube Slide as shown. NOTE: Turbo Tube Slide assembly detailed in instructions included with accessory.
  • Page 60 STEP 47 PF 6136 1-3/8’’ x 3-3/8’’ x 11-1/4’’ PF 6145 1-3/8’’ x 3-3/8’’ x 8-5/16’’ 2-1/2’’ Screws PF 6138 1-3/8’’ x 3-3/8’’ x 18’’ 2-1/2’’ Screws PF 6145 1-3/8’’ x 3-3/8’’ x 8-5/16’’ 2-1/2’’ Screws PF 6139 1-3/8’’ x 3-3/8’’ x 18’’ PF 6138 1-3/8’’...
  • Page 61 STEP 48 ID Tag (x1) 1/4” Washer 1/4’’ x 1-3/4” Pan Screw 11” 1/2” Pan Screw (x2) 1-3/4” Pan Screw (x2) 1. Attach Safety Handles at Ladder and Rock Wall. Place I.D. Tag as shown.
  • Page 62 STEP 49 PLASTIC COATED END Swing Seat Assembly 1. Take one length of chain and place the outermost link of coated chain through the Quick Link as shown. 2. Place the Quick Link through the Grommet of the swing seat as shown. 3.
  • Page 63 STEP 50 Eye Bolt Eye bolts should be oriented perpendicular with Glider seat. It is helpful to use a screwdriver to hold eye bolt in place when TOP VIEW tightening lock nut. Eye Bolt Tighten Lock Nut until three Flat Washer (3) threads are exposed.

  • Page 64: Final Inspection

    STEP 51 Quick Link Glider Chain Chain End Link Tighten clips securely with a wrench. 8” minimum between Glider and ground. Adjust Chains at Top. FINAL INSPECTION tightness of all Lock-Nuts and Quick Links. !IMPORTANT! Attach (2) Chains per Swing Hanger using quick links 8”...
  • Page 65 STEP 52 Telscope Assembly Mounting Screw Mounting Bracket Telescope Assembly 1. Position Mounting Bracket in desired location. 2. Attach Mounting Bracket to the unit using the Mounting Screw provided. 3. Insert the Telescope into the Mounting Bracket as shown.
  • Page 66 STEP 53 Carriage Bolt Spacer Flat Washer Loc Nut Steering Wheel Cap Steering Wheel Assembly 1. Choose a desired location for the Steering Wheel and drill a 5/16” diameter hole through the lumber. NOTE: If lumber is greater than 2” in depth, you will need to counterbore the hole appropriately. 2.
  • Page 67 STEP 54 5/16” Washer Fold up Anchor-It Strap 1-1/2” Lag Screw Anchor-It 5/16’’ x 1-1/2” Lag Screw (x4) 2. Twist the Anchor-It into the ground until only the loop is exposed. 3. Place Anchor-It Strap thru loop, fold the ends together and attach to the unit as shown. Note: Keep as little play as possible using any of the holes in the strap that work best.

  • Page 68: Warranty Registration

    Plastic Components, Chains, Hardware and Fasteners – 5 years. These items to be free from defects in workmanship and materials, under Swing-N-Slide® will repair, or at its discretion, replace any part within the stated warranty period which is defective in workmanship or Janesville, Wisconsin, 53545.
  • Page 69 Call our Customer Support Representatives 1-800-888-1232 Available Monday - Friday, 7am - 5pm (CST) Weekend support available April through July Technical support from experienced Swing-N-Slide customer service representatives who have actually built a swing set themselves. © Swing-N-Slide Inc. 2017 Printed in USA...
  • Page 70 (This page intentionally left blank)
  • Page 71 (This page intentionally left blank)
  • Page 72 (This page intentionally left blank)
