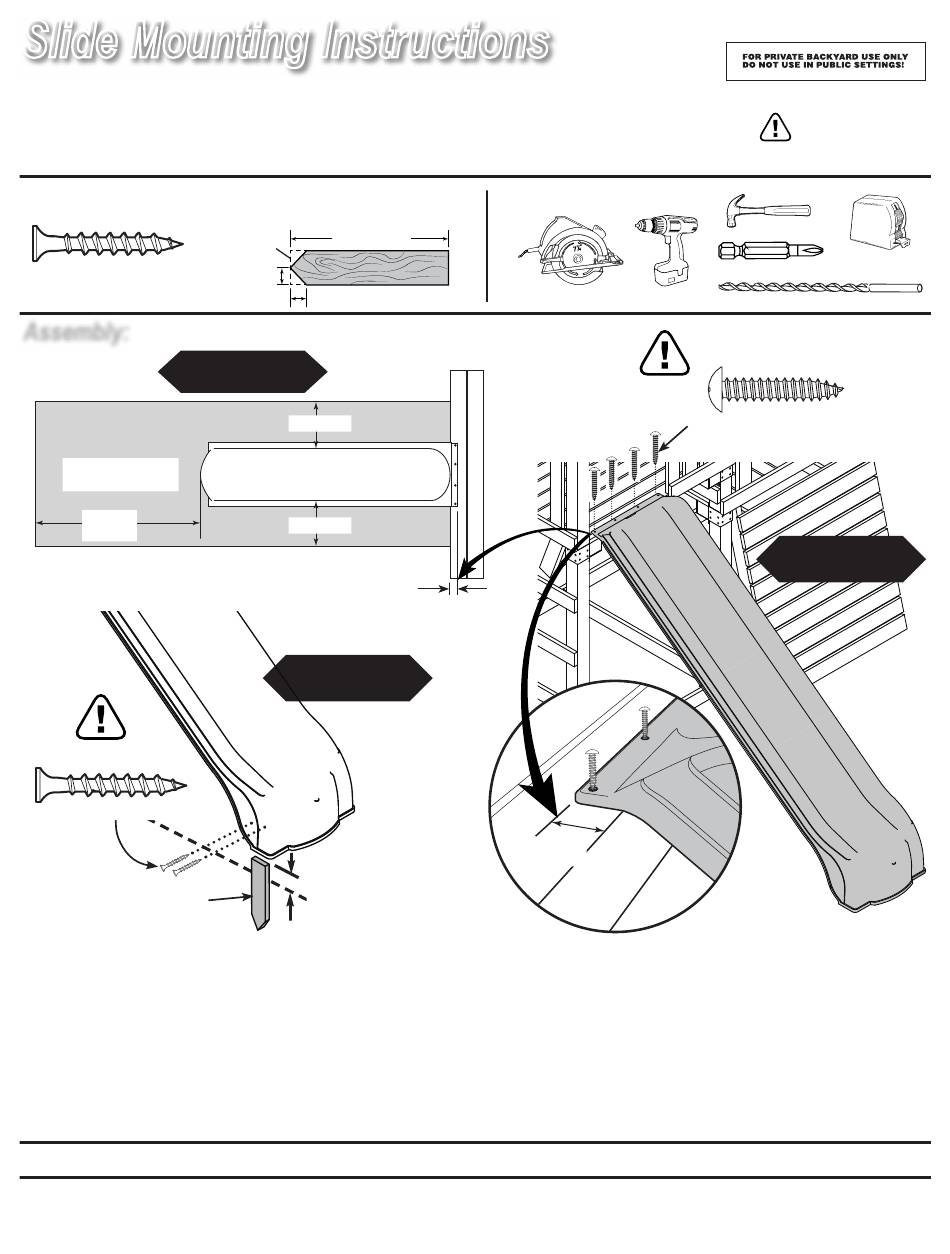

Swing-N-Slide PF 2715 Mounting Instructions

Slide Mounting Instructions
For 48" and 60" Deck Heights
Instructions below apply to the following models:
NE 4675-12PK, NE 4675-12T, NE 4675-1PK, NE 4675-1T, NE 4675-3PK, NE 4675-3T, NE 4675L, NE 4675LY, NE 4720, NE 4720-1T,
NE 4720-1Y, NE 4720-3Y, NE 4720L, PF 2715, PF 2920, PF 2930, PF 2945, SP 2600, SP 2610, SP 2620, SP 2660, SP 2670, SP 2680,
SP 3029, SP 3079, SP 3088, SP 3099, SP 3100, SP 3200, SP 3300, SP 3500, WS 8200, WS 8201, WS 8202, WS 8334, WS 8335,
WS 8336, WS 8337
Not Included In Kit:
(2) 1-1/4" screws
(Recommend stainless steel or galvanized)
Assembly:
Fig. 1
USE ZONE
72"
Pre-drill holes with 1/8" drill bit first
(2) 1-1/4" screws
Stake
2" x 4" x 17"
Use Pressure-Treated Wood
ASSEMBLY STEPS
1. Consult (Fig. 1) for proper placement of slide on your unit. Make certain no objects lie within the grayed out area, or 'Use Zone.' Position slide to determine
proper location for stake. IMPORTANT: Place the slide on level ground, not less than six feet from any structure or obstruction such as a fence, garage, house,
overhanging branch, laundry line or electric wire. Protective surfacing must extend a minimum of 6ft. in all directions from the perimeter of the equipment or from
the outermost edges of any component. A slide extending beyond the platform must have protective surfacing at least 6ft. out from both sides as well as the
end. An area of 21" on either side of the slide should be free of obstructions which a child's arm could contact.
2. Drive wood stake (not included) into ground leaving 2" exposed. (Fig. 2)
3. Using an 1/8" drill bit, drill (2) holes through the side of the slide and into stake. Secure the slide bottom to the stake using (2) 1-1/4" deck screws (Fig. 2).
4. Attach slide to unit as shown in (Fig. 3).
Weight Limit: 250 lbs
Specifications subject to change without notice.
Manufactured for Swing-N-Slide® • 1212 Barberry Drive • Janesville, Wisconsin 53545 • USA • 1-800-888-1232 • www.swing-n-slide.com
Made in USA • Printed in USA
