Vision 1624R, 2525 and 2550 Series 5 Installation Guide
2.6
2550 Vacuum Pump Connection - Vacuum Table Model Only

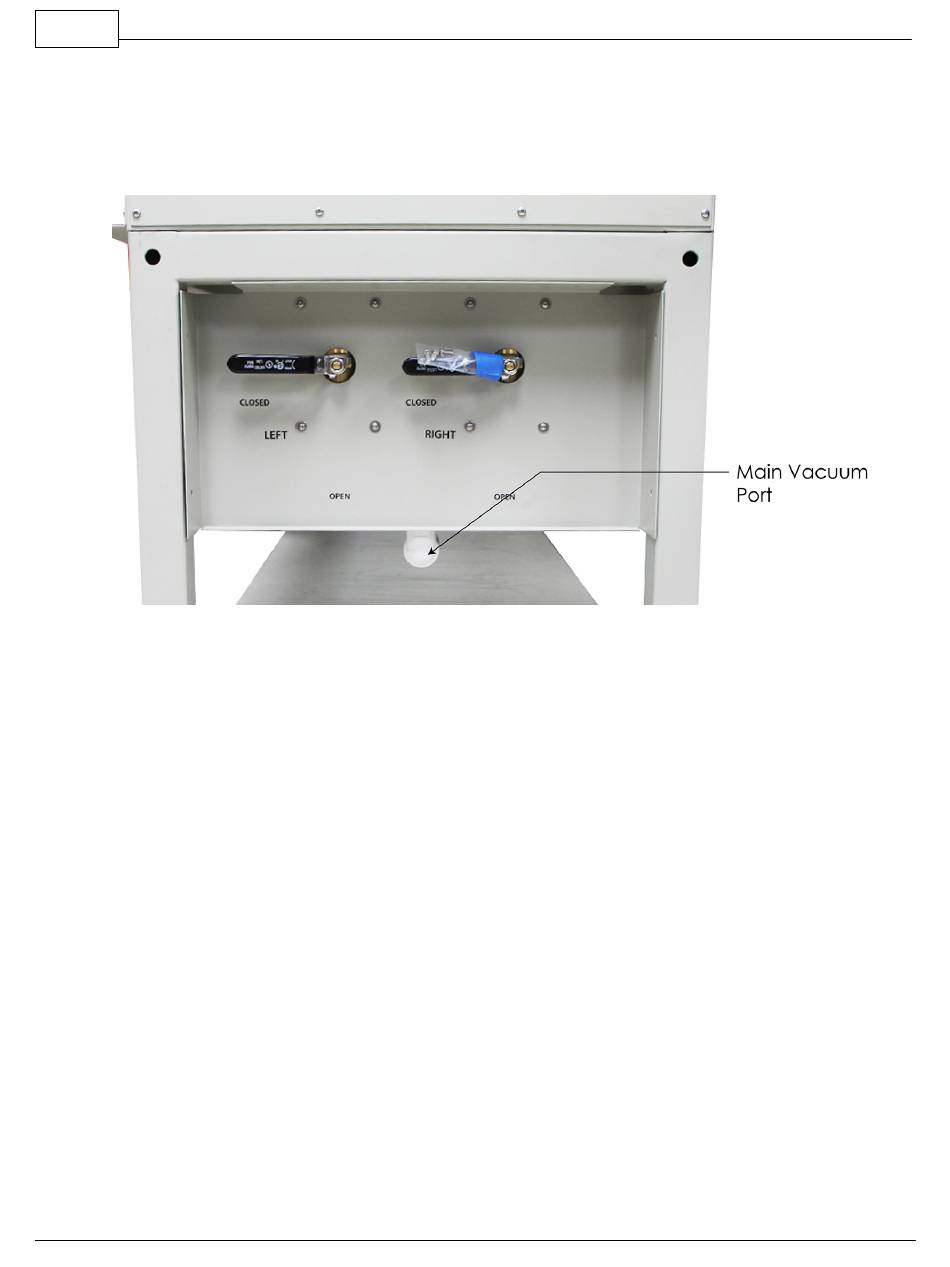

The Main Vacuum Port on the 2550 Router is located on the bottom of the valve panel as shown below.
The user will need to attach the valve panel to the end of the table as shown in the photo and connect the
flexible hose from the vacuum inlet on the filter canister to the Main Vacuum Port on the valve panel.
