Vision 1624R, 2525 and 2550 Series 5 Installation Guide
Carriage Wiring Connections

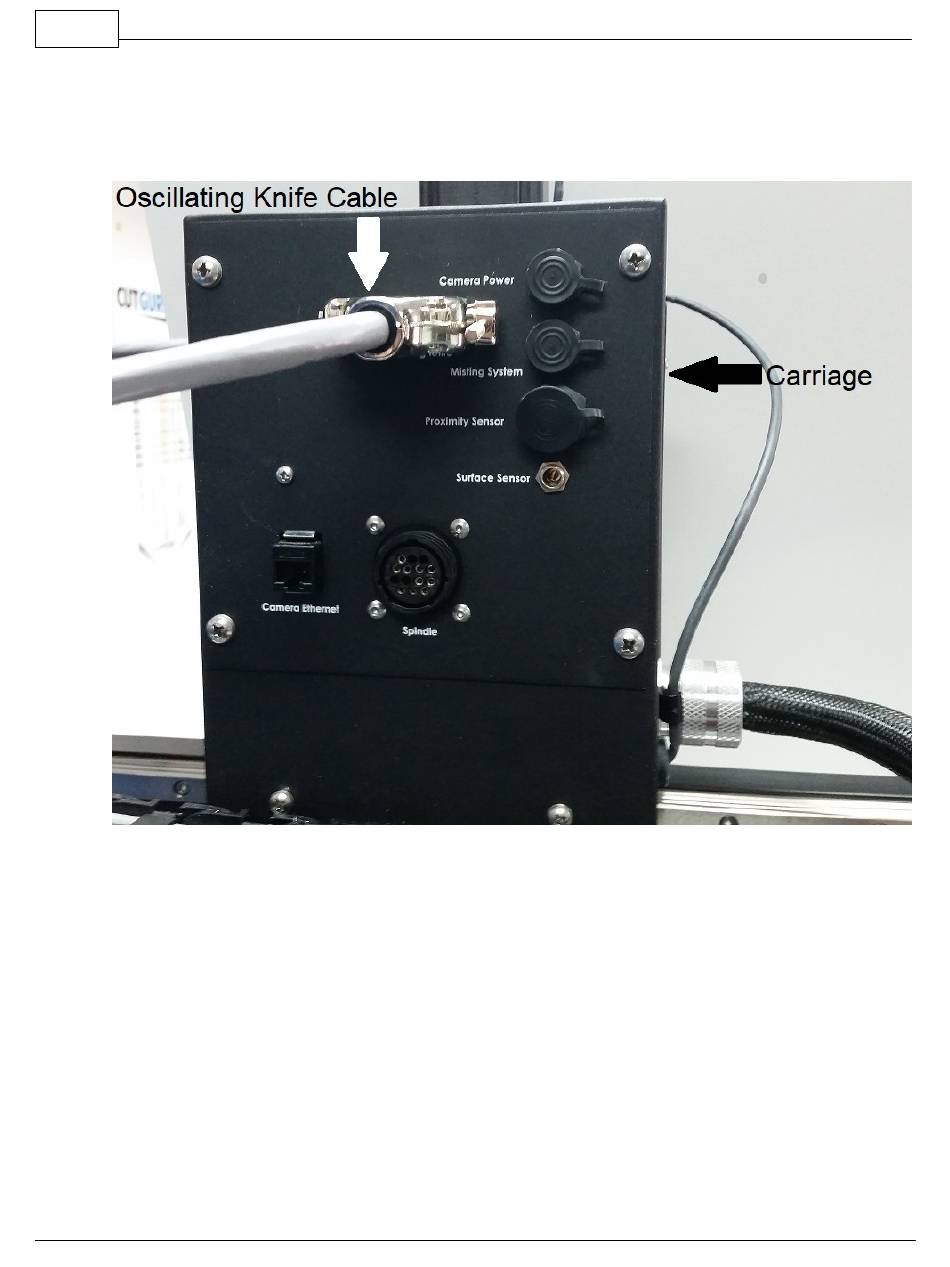

Connect the Oscillating Knife Cable to the rear of the carriage as shown.
The other end of the cable connects to the top of the Oscillating Knife Assembly as shown.
